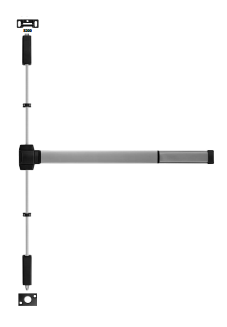

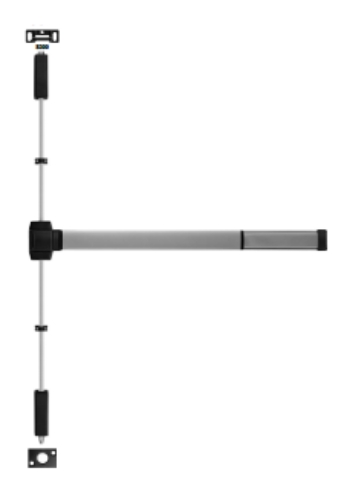

Precission 5200-689 (5203,5208) Reliant Surface Vertical Rod Exit Device

Precission 5200-689 (5203,5208) Reliant*Surface Vertical Rod Exit Device*- Aluminum

Model:5201,5202,5203,5205,5214,5215 Functions(models) are field selectable.

Description and Features:

Door Sizes:

Width: 36" - 2'-7" to 3' Door Width 48" - 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Height: 7' - For 7’-0" doors 8' - For 8’-0" door Heights 10' - For 10’-0" door Heights 12' - For 12’-0" door Heights (Note: 12’-0" top rod is Not available in “FL" fire rated option.)

Active Case & Trim:Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. Active Case through bolts in ANSI A115.18 preparation without additional machining.

Functions: Universal Exit Device, add Trim for the desired function.

Active Case Cover, Latch Covers & Endcap:High Impact Thermoplastic.

Active Case &*Touchbar Sub-Assembly:*Zinc Dichromate plated Heavy Wrought Steel.

Touchbar Assembly:Powder Coated Heavy Wrought Steel.

Vertical Rods:Powder Coated Steel.

Bottom Bolt:Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike:No. S300, Investment Cast Stainless Steel, Black Powder Coated.

Bottom Strike:No. S460, Steel, Black Powder Coated, flush mounted.

Dogging: 1/4 turn hex key dogging standard.

Top Latchbolt: Stainless Steel, Deadlocking, 3/4" throw.

Touchbar Height: - 40-5/16" from floor standard. May be varied as situation dictates.

Reversible: Reversible for all functions and trims. Standard packaging RHRB.

UL LISTED:Panic and Fire Exit Hardware.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

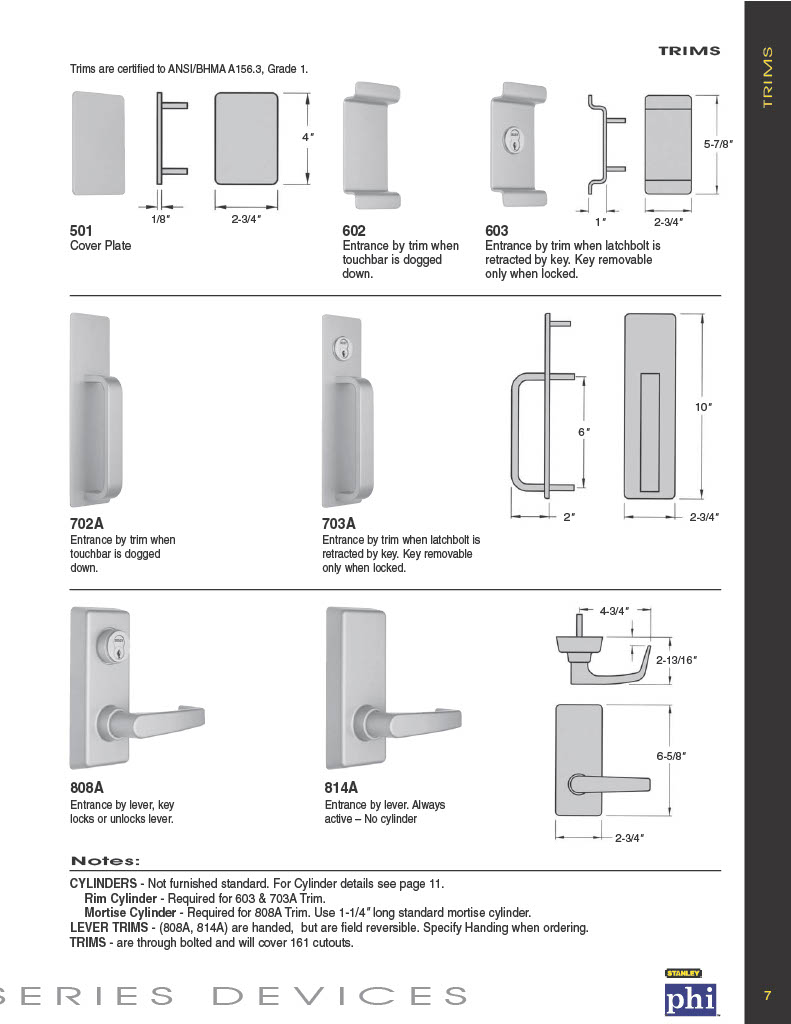

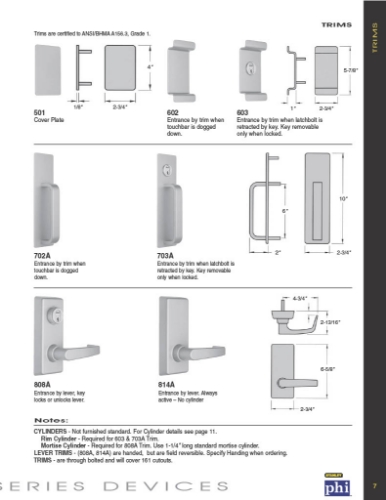

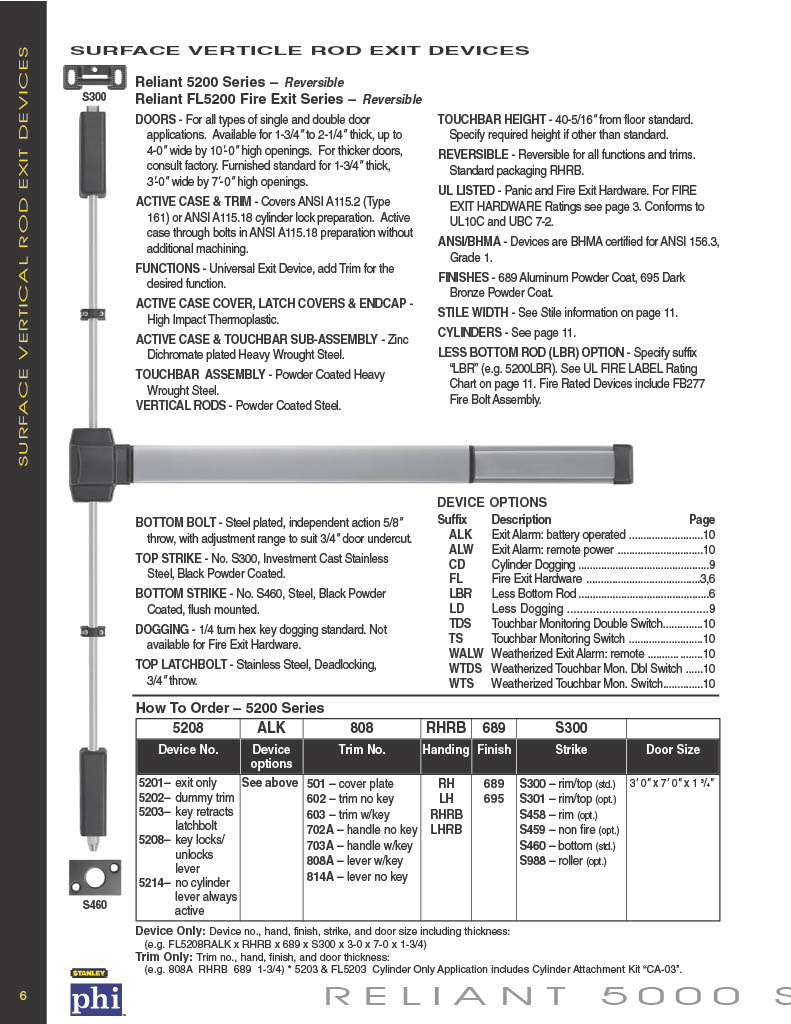

Stile Width:See Catalog Page # 36

Model:5201-689, 5202-689, 5203-689, 5205-689, 5214-689, 5215-689, 5201689, 5202689, 5203 689, 5205 689, 5214689, 5215-689

**
