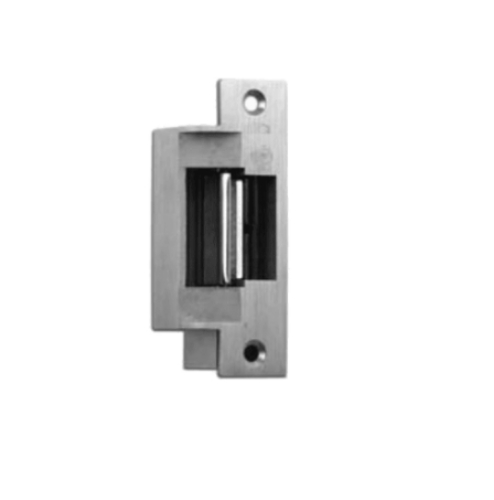

RCI F1114-32D Centerline Electric Strike For Hollow Metal Frames - Satin Stainless Steel

RCI (Rutherford Controls) F1114-32D Centerline Electric Strike For Hollow Metal Frames - Satin Stainless Steel

Description And Features:

The F1114 strike Features stainless steel faceplate with square corners ideal for hollow metal frames.

 F114 Cross Reference: Hess - 7501,  Allegion - 6211, Folger Adam 712-75 Faceplate: 1-1/4"W x 4-7/8"H (32mm x 124mm) Insert Depth: 1-3/4" (45mm) Accommodates 1/2" (12.7mm), 5/8" (16mm) or 3/4" (19mm) latch projection Up to 1/4" (6.4mm) horizontal adjustment, relieves side-load pressure, ensuring proper latch alignment Saddle-mount housing design for enhanced strength and durability Tamper-resistant pry-guard concealed inside the frame Energy efficient coil design Mounting tabs, shims and fasteners included Non-handed Brushed Stainless Steel (32D) finish UL 1034 burglary-resistant Listed CAN/ULC S104 & UL 10C, 1-1/2 hour fire-rating Listed Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles Energy: 200mA1, 11-16VAC, 12VAC/VDC Or 24VAC/VDC Strength: 1,500lbf Static, 70ft-lb Dynamic Fire-Rated:CAN/ULC S104, UL 10C 1-1/2-Hour Warranty: 5 Year Limited Warranty
