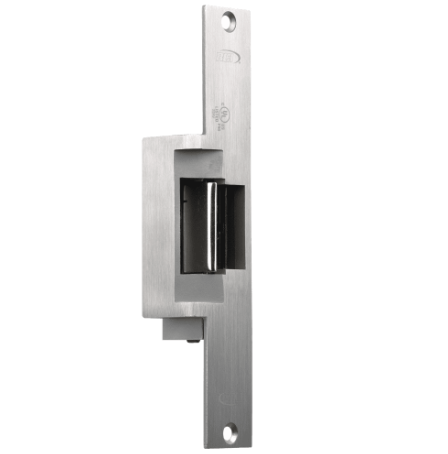

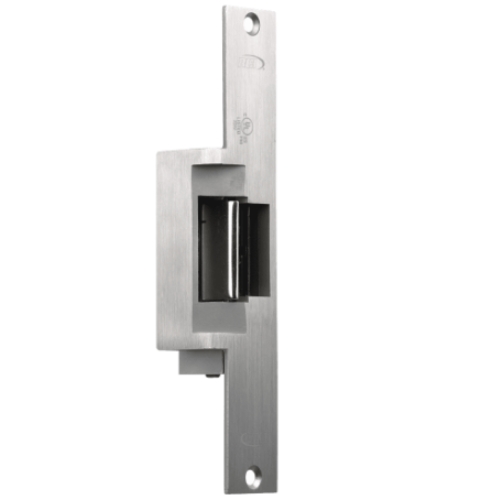

RCI F1119-32D Centerline Electric Strike For Aluminum And Wood Frames- Satin Stainless Steel

RCI (Rutherford Controls) F1119-32D Centerline Electric Strike For Aluminum And Wood Frames- Satin Stainless Steel

Description And Features:

The F1119 Features stainless steel faceplate with square corners ideal for aluminum and wood frames.

 F119 Cross Reference: Allegion - 6215, Folger Adam - 310-2

 Faceplate: 1-3/8"W x 9"H (34mm x 229mm) Insert Depth: 1-3/4"D (45mm) Accommodates 1/2" (12.7mm), 5/8" (16mm) or 3/4" (19mm) latch projection Up to 1/4" (6.4mm) horizontal adjustment, relieves side-load pressure, ensuring proper latch alignment Saddle-mount housing design for enhanced strength and durability Tamper-resistant pry-guard concealed inside the frame Energy efficient coil design Mounting tabs, shims and fasteners included Non-handed Brushed Stainless Steel (32D) finish UL 1034 burglary-resistant Listed CAN/ULC S104 & UL 10C, 1-1/2 hour fire-rating Listed Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles Energy: 200mA1, 11-16VAC, 12VAC/VDC Or 24VAC/VDC Strength: 1,500lbf Static, 70ft-lb Dynamic Fire-Rated:CAN/ULC S104, UL 10C 1-1/2-Hour Warranty: 5 Year Limited Warranty
