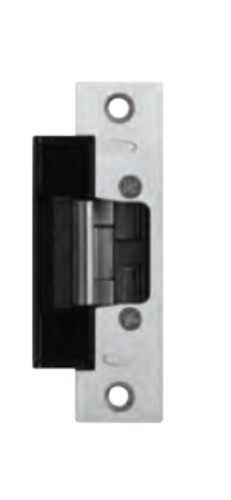

RCI L6514-32D Centerline Strike - Low Profile - Satin Stainless Steel

RCI (Rutherford Controls)  L65-14-32D Centerline Strike - Low Profile - Satin Stainless Steel

L6514: 1-1/4"W x 4-7/8"H (32mm x 124mm), ANSI Square Corners

Mode - Field Selectable: Fail-Secure & Fail-Safe

Description And Features:

• Energy: Field-Selectable - 12/24VDC, 12-24VAC

• Standard Insert Depth: 1-3/16"D (30mm)

• low-profile accommodates 1/2" (12.7mm) or 5/8" (16mm) latch projections

• 1/4" (6.4mm) horizontal adjustment

• Plug-in wire connectors

• Trim plate included to cover up irregular frame cut-out

• Non-handed

• Brushed Stainless Steel (32D)

• Factory tested to over 1-million cycles of operation

• UL 294 Listed for Access Control Unit Accessory (6th Edition)

• UL 1034 burglary-resistant Listed

• Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles

• Strength: 1,500lbf Static, 70ft-lb Dynamic

• Monitoring: Optional Latch & Keeper Monitor Model Available

• 3 Year Limited Warranty

Model : L651432D, L-65-14-32D, L6514LMKM32D, L65-14-LMKM-32D
