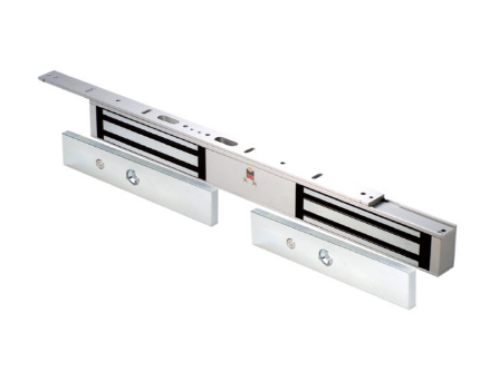

Rofu 8606-2-BD Mini Double Magnet Lock With Bond Sensor & Door Status - Slide Mount - 2X600LB Holding Force

Product Details

Rofu 8606-2-BD Mini Double Magnet Lock With Bond Sensor & Door Status -*Slide Mount * - 2X600LB Holding Force

Features And Description:

The 8600 Series Electromagnets feature a patented design for safer installation and are UL listed for use with a fire rating of 3/4 hours on swinging type fire doors.

Bond Sensorfeature works with LED to let you know that the magnet has a good bond with the armature plate and/or is getting the correct voltage (this option is unchanged)

Door status–  we moved it behind the ROFU cover plate for easy replacement.  There are now two magnets located in the new armature plate housing for easier installation.

fail safe, suitable for indoor use with anti-residual magnetism design.

600 lbs of holding force (each side)

12/24 VDC – Selectable

500 mA @ 12VDC / 250 mA @ 24VDC (each side)

Dimensions: Magnet: 9 13/16"(L) x 1 13/16"(H) x 1"(W) Armature Plates (each) : 7 1/4″(L) x 1 1/2″(H) x 1/2″(W)

Lifetime Warranty

Rofu 8606-2-BD Mini Double Magnet Lock With Bond Sensor & Door Status - Slide Mount - 2X600LB Holding Force

SKU: 8606-2-BD

In Stock

$481.00

$740.00

You saved $259.00

About this item

Rofu 8606-2-BD Mini Double Magnet Lock With Bond Sensor & Door Status -*Slide Mount * - 2X600LB Holding Force

Features And Description:

The 8600 Series Electromagnets feature a patented design for safer installation and are UL listed for use with a fire rating of 3/4 hours on swinging type fire doors.

Bond Sensorfeature works with LED to let you know that the magnet has a good bond with the armature plate and/or is getting the correct voltage (this option is unchanged)

Door status–  we moved it behind the ROFU cover plate for easy replacement.  There are now two magnets located in the new armature plate housing for easier installation.

fail safe, suitable for indoor use with anti-residual magnetism design.

600 lbs of holding force (each side)

12/24 VDC – Selectable

500 mA @ 12VDC / 250 mA @ 24VDC (each side)

Dimensions: Magnet: 9 13/16"(L) x 1 13/16"(H) x 1"(W) Armature Plates (each) : 7 1/4″(L) x 1 1/2″(H) x 1/2″(W)

Lifetime Warranty
