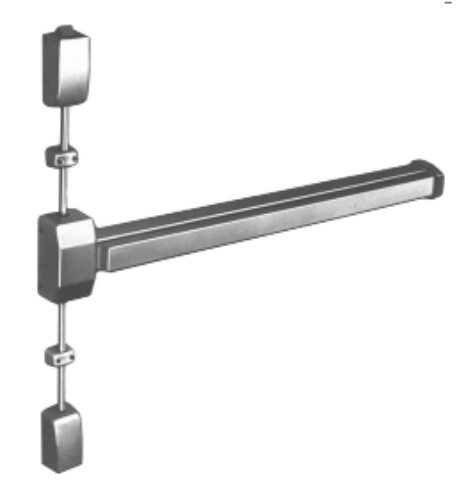

Sargent 12-2727-F-EN Fire Rated Vertical Rod Exit Device - 36", Aluminum

Sargent 12-2727-F-EN Fire Rated Vertical Rod Exit Device - 36",*Aluminum*

For doors:  33" through 36"  (82cm through 91cm)

Finish:EN - (689) Sprayed aluminum enamel or polyester powder coated

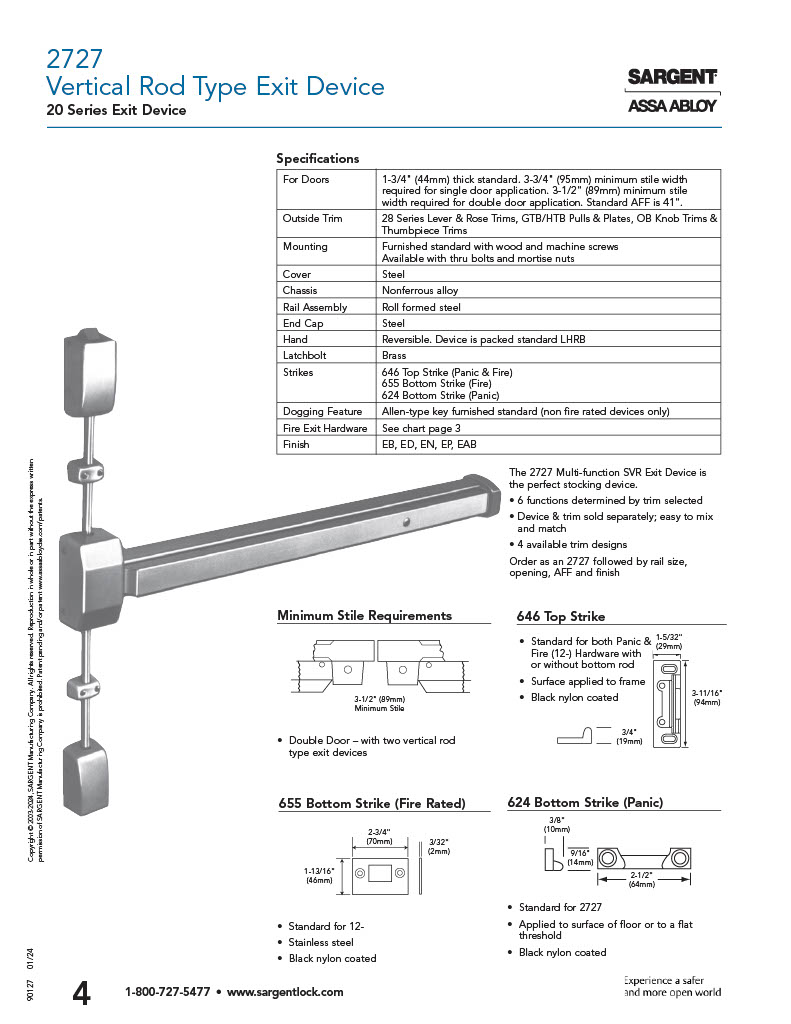

Features

 Chassis mounted unit construction assures easy installation and maintenance Tapered push rail and angled covers Steel endcaps and covers Up to five functions with a variety of trim All exit devices meet ANSI/BHMA Standard 156.3, Grade 1 UL Listed  UL Listed to Canadian safety standardsFor Doors1-3/4" (44mm) thick standard. 3-3/4" (95mm) minimum stile width required for single door application. 3-1/2" (89mm) minimum stile width required for double door application. Standard AFF is 41".

MountingFurnished standard with wood and machine screws Available with thru bolts and mortise nuts**

CoverSteel

ChassisNonferrous alloy

Rail AssemblyRoll formed steel

End CapSteel**

HandReversible. Device is packed standard LHRB**

LatchboltBrass

Dogging FeatureAllen-type key furnished standard (non fire rated devices only)
