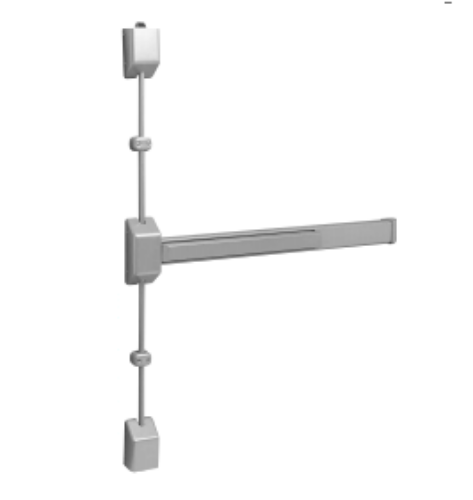

Sargent 3727-F Vertical Rod Exit Device - 36"

Sargent 3727-F Vertical Rod Exit Device - 36"

For doors:  33" through 36"  (82cm through 91cm)

 Chassis mounted unit construction assures easy installation and maintenance Tapered push rail and angled covers Steel endcaps and covers Up to five functions with a variety of trim All exit devices meet ANSI/BHMA Standard 156.3, Grade 1 UL Listed - UL Listed to Canadian safety standards Available as Fire Exit Hardware (12-)For Doors 1-3/4" (44mm) thick standard. 3-3/4" (95mm) minimum stile width required for single door application. 3-1/2" (89mm) minimum stile width required for double door application. Standard AFF is 41".

Mounting Furnished standard with wood and machine screws Available with through bolts and mortise nuts

Cover  Steel

Chassis Nonferrous alloy

Rail AssemblyR oll formed steel

End Cap Steel

Hand  Reversible. Device is packed standard LHRB

Latchbolt  Brass

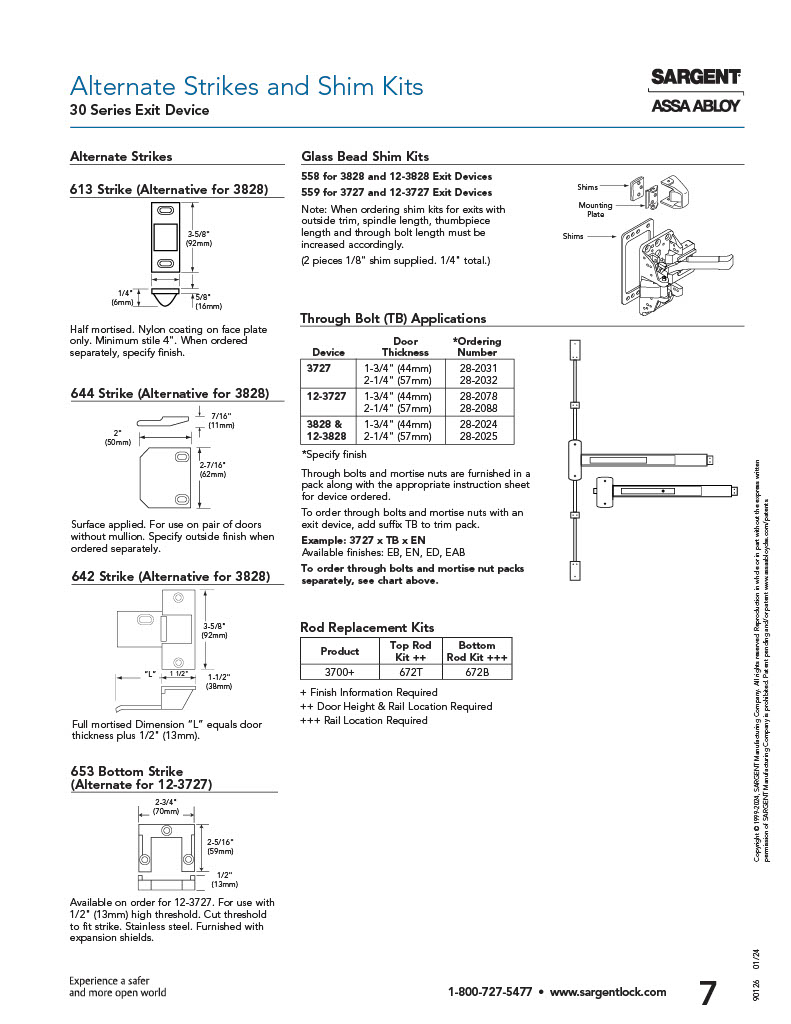

Strikes 646 Top Strike (Panic & Fire) 655 Bottom Strike (Fire) 624 Bottom Strike (Panic)

Dogging FeatureAllen-type key furnished standard (Non Fire Rated Devices Only)

Model:Sargent 3727F, 3727-F, 3727-F-EN, 3727-F-EB, 3727F-EB, 3727F-EN
