Sargent 2828-E-EN Rim Exit Device - 32", Aluminum

Sargent 2828-E-EN Rim Exit Device - 32", Aluminum

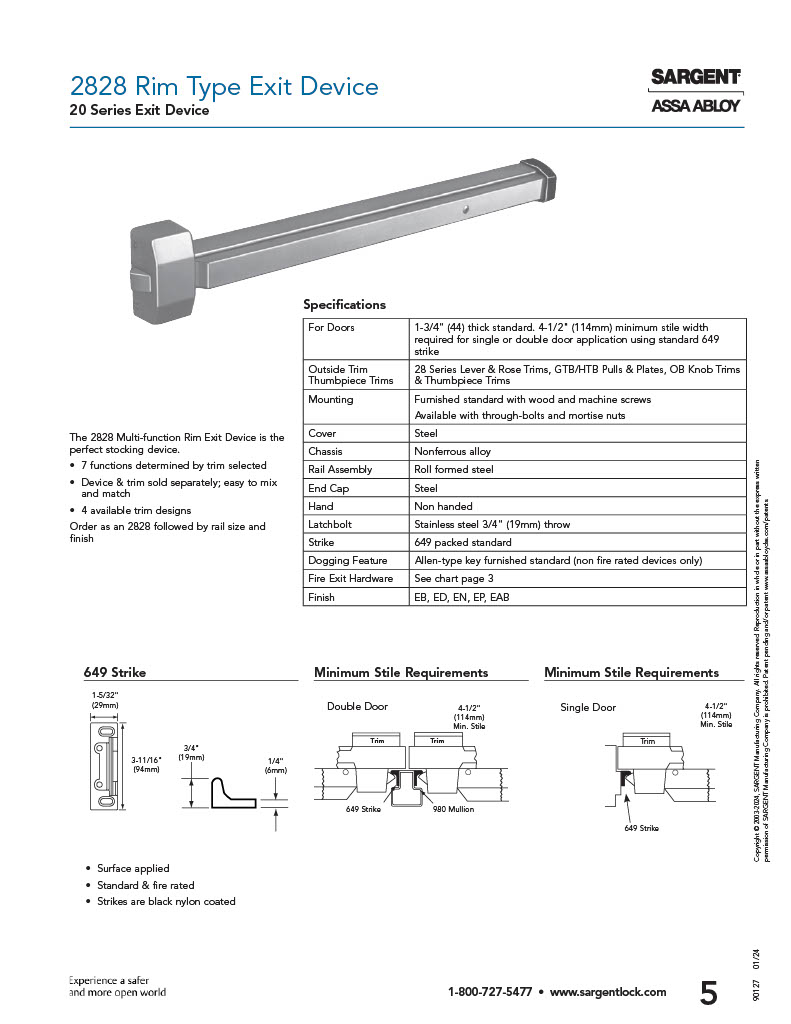

1-Page5-20ZERIES

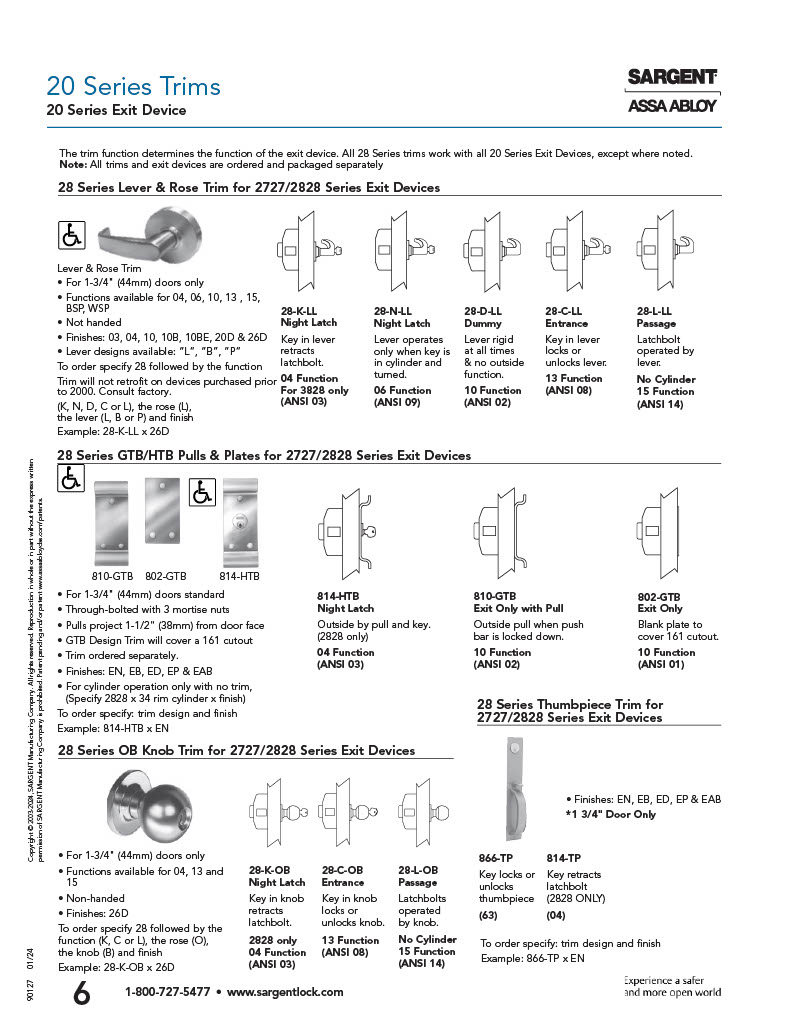

1-Page6-20ZERIES

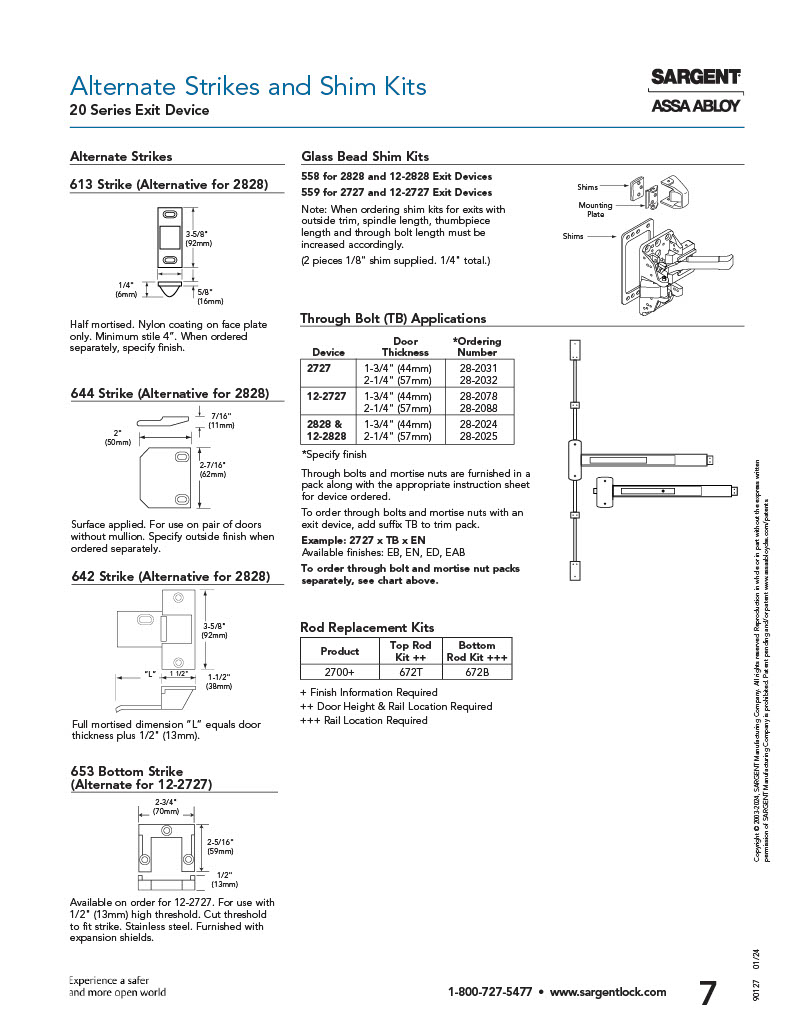

1-Page7-20ZERIES

Product Details

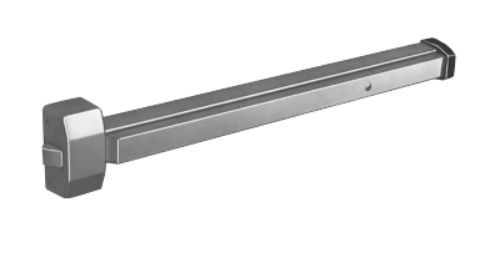

Sargent 2828-E-EN Rim Exit Device - 32", Aluminum

Foor Doors:24" through 32" (61cm through 81cm)

Finish:EN - (689) Sprayed aluminum enamel or polyester powder coated

Features

Chassis mounted unit construction assures easy installation and maintenance Tapered push rail and angled covers Steel endcaps and covers Up to five functions with a variety of trim All exit devices meet ANSI/BHMA Standard 156.3, Grade 1 UL Listed UL Listed to Canadian safety standardsFor Doors1-3/4" (44) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door application using standard 649 strike

MountingFurnished standard with wood and machine screws Available with through-bolts and mortise nuts

CoverSteel

ChassisNonferrous alloy

Rail AssemblyRoll formed steel

End CapSteel

HandNon handed

LatchboltStainless steel 3/4" (19mm) throw

Strike649 packed standard

Dogging Feature Allen-type key furnished standard (non fire rated devices only)

Sargent 2828-E-EN Rim Exit Device - 32", Aluminum

SKU: 2828-E-EN

In Stock

$657.66

About this item

The 2828 Non Configured Rim Exit Device is the perfect stocking device. It has 7 functions determined by configured trim, easy to mix and match with device and trim sold separately and has 4 available trim designs.

Resources

***20 Series Catalog***

Sargent 2828-E-EN Rim Exit Device - 32", Aluminum

Foor Doors:24" through 32" (61cm through 81cm)

Finish:EN - (689) Sprayed aluminum enamel or polyester powder coated

Features

Chassis mounted unit construction assures easy installation and maintenance Tapered push rail and angled covers Steel endcaps and covers Up to five functions with a variety of trim All exit devices meet ANSI/BHMA Standard 156.3, Grade 1 UL Listed UL Listed to Canadian safety standardsFor Doors1-3/4" (44) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door application using standard 649 strike

MountingFurnished standard with wood and machine screws Available with through-bolts and mortise nuts

CoverSteel

ChassisNonferrous alloy

Rail AssemblyRoll formed steel

End CapSteel

HandNon handed

LatchboltStainless steel 3/4" (19mm) throw

Strike649 packed standard

Dogging Feature Allen-type key furnished standard (non fire rated devices only)

2828

Sargent 2828-E-EN Rim Exit Device - 32", Aluminum

Product code: 2828-E-EN

In Stock

$657.66

$657.66

2828

Sargent 2828-E-EN Rim Exit Device - 32", Aluminum

Product code: 2828-E-EN

In Stock

$657.66

$657.66
