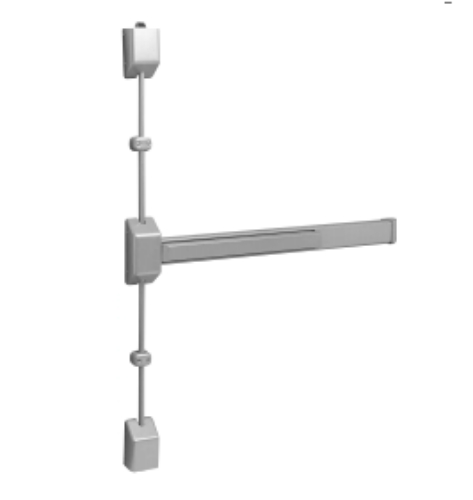

Sargent 12-3727-G-EN Fire Rated Vertical Rod Exit Device - 48" - Aluminum

Product Details

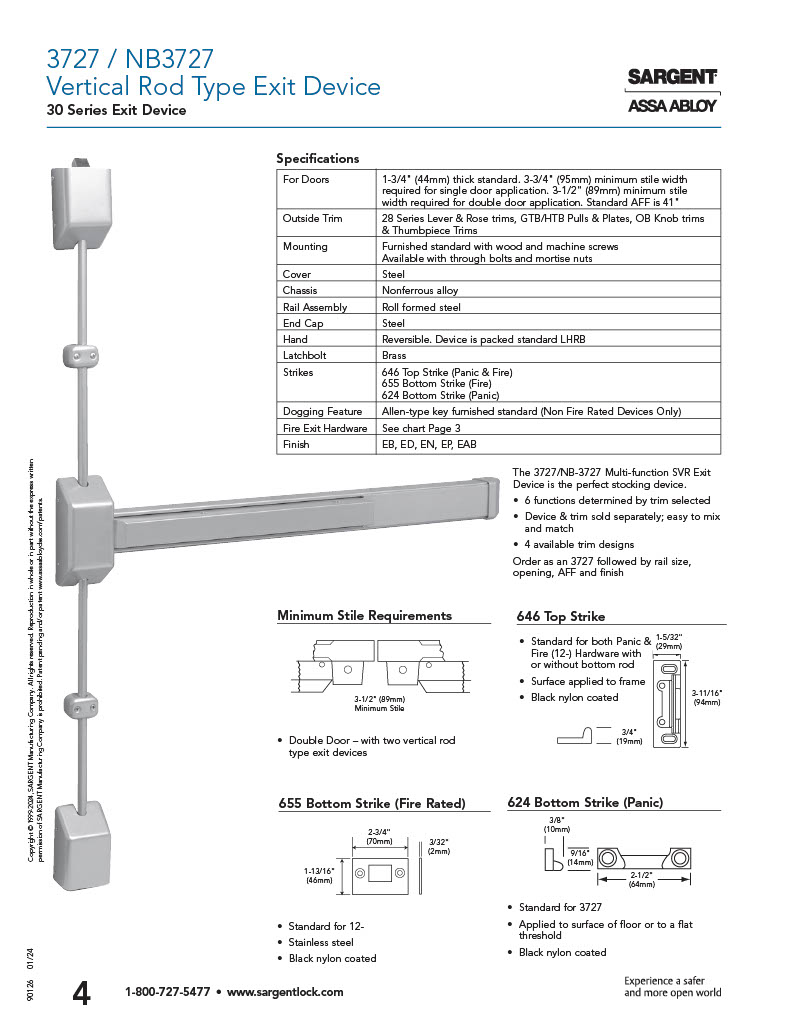

Sargent 12-3727-G-EN Fire Rated Vertical Rod Exit Device - 48" - Aluminum

Foor Doors:37" through 48"  (61cm through 81cm)

Finish:  (689) Sprayed aluminum enamel or polyester powder coated

 Chassis mounted unit construction assures easy installation and maintenance Tapered push rail and angled covers Steel endcaps and covers Up to five functions with a variety of trim All exit devices meet ANSI/BHMA Standard 156.3, Grade 1 UL Listed - UL Listed to Canadian safety standardsFor Doors 1-3/4" (44mm) thick standard. 3-3/4" (95mm) minimum stile width required for single door application. 3-1/2" (89mm) minimum stile width required for double door application. Standard AFF is 41".

Mounting Furnished standard with wood and machine screws Available with through bolts and mortise nuts

Cover  Steel

Chassis Nonferrous alloy

Rail AssemblyR oll formed steel

End Cap Steel

Hand  Reversible. Device is packed standard LHRB

Latchbolt  Brass

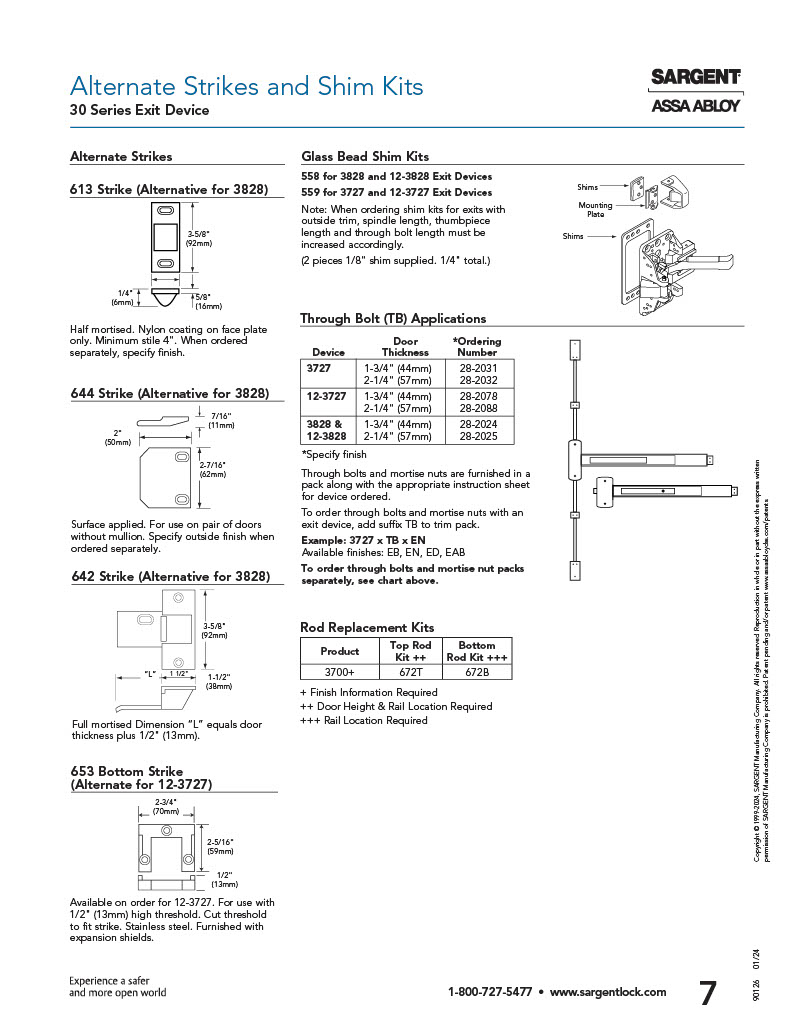

Strikes 646 Top Strike (Panic & Fire) 655 Bottom Strike (Fire) 624 Bottom Strike (Panic)

Model:Sargent 12-3727G, 12-3727-G, 12-3727-G-EN, 123727GEN, 12-3727G-EN

Sargent 12-3727-G-EN Fire Rated Vertical Rod Exit Device - 48" - Aluminum

SKU: 12-3727-G-EN

In Stock

$1,001.68

About this item

The 3727 is a rugged exit device in surface vertical rod and rim designs. The 3727 Non Configured SVR Exit Device is the perfect stocking device. It has 6 functions, 4 available trim designs and is easy to mix and match device and trim.

Sargent 12-3727-G-EN Fire Rated Vertical Rod Exit Device - 48" - Aluminum

Foor Doors:37" through 48"  (61cm through 81cm)

Finish:  (689) Sprayed aluminum enamel or polyester powder coated

 Chassis mounted unit construction assures easy installation and maintenance Tapered push rail and angled covers Steel endcaps and covers Up to five functions with a variety of trim All exit devices meet ANSI/BHMA Standard 156.3, Grade 1 UL Listed - UL Listed to Canadian safety standardsFor Doors 1-3/4" (44mm) thick standard. 3-3/4" (95mm) minimum stile width required for single door application. 3-1/2" (89mm) minimum stile width required for double door application. Standard AFF is 41".

Mounting Furnished standard with wood and machine screws Available with through bolts and mortise nuts

Cover  Steel

Chassis Nonferrous alloy

Rail AssemblyR oll formed steel

End Cap Steel

Hand  Reversible. Device is packed standard LHRB

Latchbolt  Brass

Strikes 646 Top Strike (Panic & Fire) 655 Bottom Strike (Fire) 624 Bottom Strike (Panic)

Model:Sargent 12-3727G, 12-3727-G, 12-3727-G-EN, 123727GEN, 12-3727G-EN

3727
Sargent 12-3727-G-EN Fire Rated Vertical Rod Exit Device - 48" - Aluminum

Product code: 12-3727-G-EN

In Stock

$1,613.00

$1,001.68

3727
Sargent 12-3727-G-EN Fire Rated Vertical Rod Exit Device - 48" - Aluminum

Product code: 12-3727-G-EN

In Stock

$1,613.00

$1,001.68
