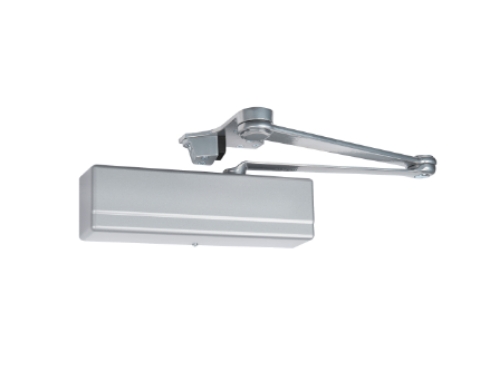

Sargent 1431 CPS Door Closer - H. D. Parallel Arm w/Compression Stop

Sargent 1431 CPSDoor Closer - Heavy Duty Parallel Arm with Compression Stop

CPSArm is for parallel (Push Side Mount) applications only

1431 Series:Heat treated full rack and pinion for high strength & wear resistance. - Heavy duty one piece high silicon content aluminum alloy body provides corrosion resistance, superior strength and wear resistance. - 1/2" arm engagement over a 7/16 square spindle ensures a wear-resistant tight joint

Valves:Separate brass low sensitivity control valves offer ability to separately regulate door speed, latching, backcheck and optional delayed action. - All valves are captured to prevent accidental removal, adjustable with an 1/8" Allen wrench. - Adjustable backcheck protects the door and hardware from damage during the opening cycle.

DA- Delayed action valve (Optional): Holds the door in the open position momentarily - 20 second minimum hold open delay - Beneficial when moving carts or objects thru door opening and ADA applications

Power Size:Adjustable spring power allows 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory

Cover:High impact non-corrosive plastic covers with two machine screws standard

Fasteners:Packed w/Thru Bolts (TB), Wood & Machine Screws

ANSI:Certified ANSI/BHMA  A156.4 Grade 1   UL:Conforms to UL10C and UBC for positive pressure fire test - UL Listed and cUL Listed to Canadian Safety Standards listed for use on fire doors

10 Year Warranty

Finish:EN - Sprayed Aluminum Enamel (BHMA 689), EB - Sprayed Bronze Enamel to match 10B (BHMA 690), EAB - Sprayed Brass Enamel (BHMA 696)

Model:Sargent, 1431, CPS, 1431CPS, 1431 CPS EN TB, 1431CPSENTB, 1431 CPS EB TB, 1431CPSEBTB, 1431 CPS EAB TB, 1431CPSEABTB

(Retrofits existing SARGENT 1230/1231 Series Closer installations)
