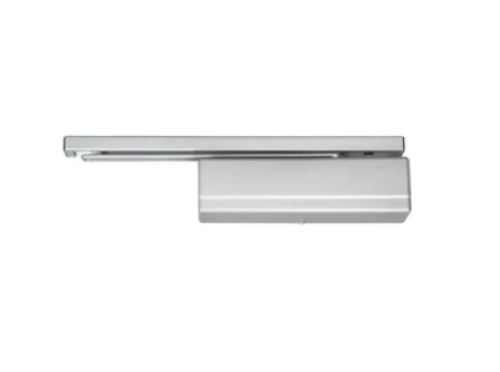

Sargent 422-CTB2-EN-TB Cam Action Closer - Pull Side Mounting - Aluminum

Sargent 422-CTB-EN-TB*Cam Action Closer- Bumper Stop Track - Pull Side Mounting , Aluminum*

Mortise nuts for use with machine screws, supplied with closer

422 Series:Heavy duty one piece high silicon content aluminum alloy body provides corrosion resistance, superior strength and wear resistance - Dual pistons provide superior door control and high efficiency - 1/2" arm engagement over a 7/16 square spindle ensures a wear-resistant tight joint - Full complement roller bearings provide resistance to abuse

 Bumper stop track

 Maximum door swing 125  Degree

 Adjustable steel stop included in track that provides dead stop positions between 70  Degree and 125  Degree

 Rubber bumper included to cushion door before stop

 Auxiliary stop required for abusive environments

 Stop may be easily remove when not required

 Non handed closer body

 2-1/2" minimum door top rail

All weather fluid allows closer to operate effectively in extreme heat and cold without readjustment Heavy Duty Construction

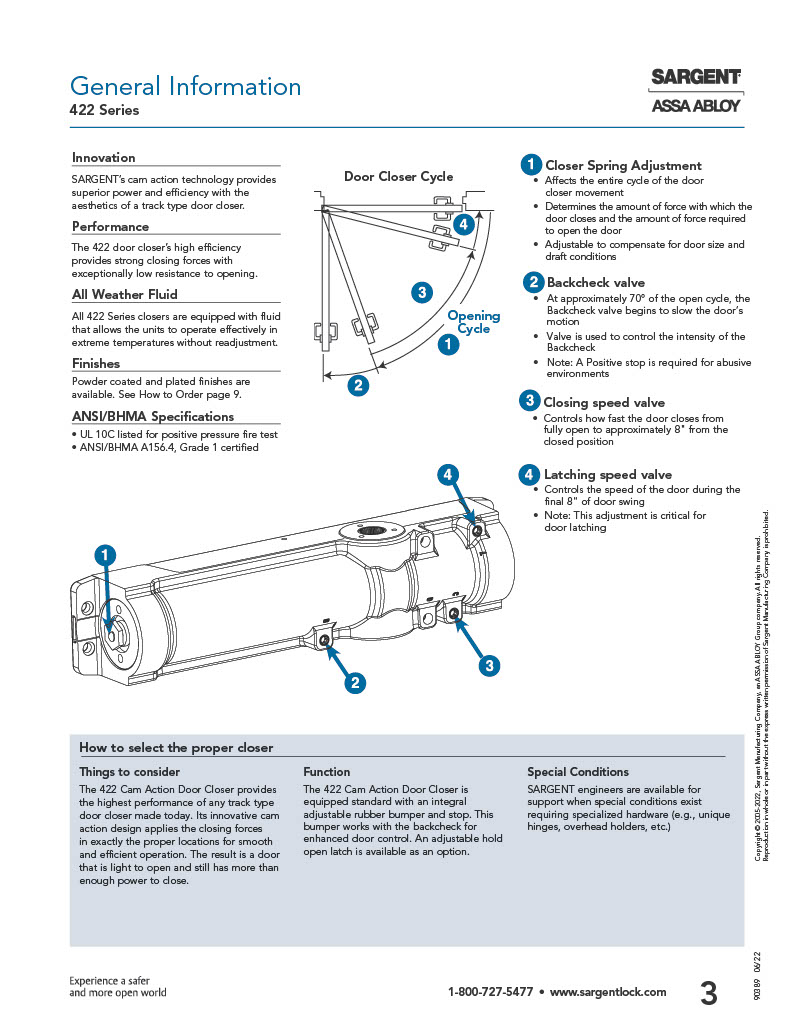

Valves:Separate low sensitivity brass control valves offer ability to separately regulate door speed, latching, backcheck - All valves are captured to prevent accidental removal; adjustable with a 5/32" Allen wrench - Adjustable backcheck protects the door and hardware from damage during the opening cycle

Power Size:Adjustable spring power allows 422 closers a size range of 1 through 6

Cover:High impact non-corrosive one piece plastic covers standard (Optional metal cover available) - Cover secured by machine screws

Fasteners:Packed w/Thru Bolts (TB), Wood & Machine Screws)

Conforms to standards UL 10C for positive pressure fire test- UL and cUL listed for use on fire doors

10 Year Warranty

Model:Sargent, 422, 422CTB2, 422-CTB2 EN LH TB, 422-CTB2 EN RH TB
