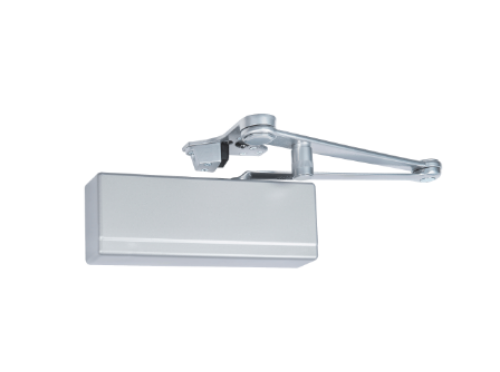

Sargent 281 CPSH Door Closer - Hold Open Arm w/Compression Stop

Sargent 281 CPSHDoor Closer - Hold Open Arm w/Compression Stop package

CPSH Arm is for parallel (Push Side Mount) applications only

**

**

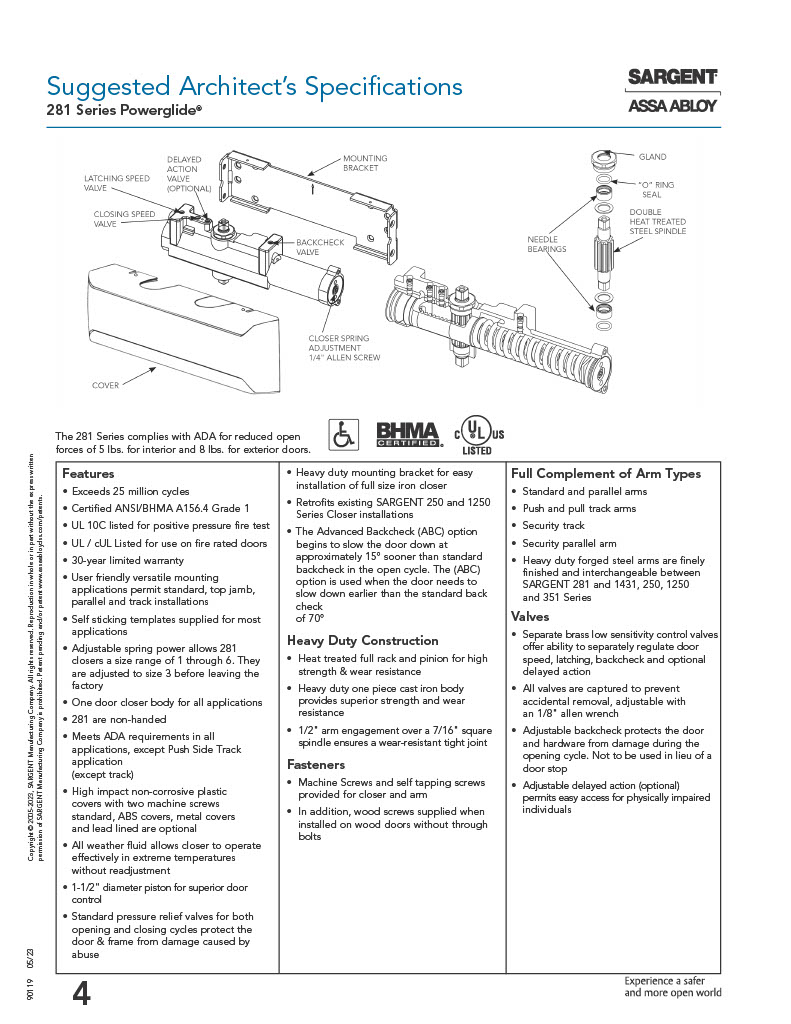

281 Series:Heat treated full rack and pinion for high strength & wear resistance. - Heavy duty one piece cast iron body provides superior strength and wear resistance. - 1/2" arm engagement over a 7/16 square spindle ensures a wear-resistant tight joint

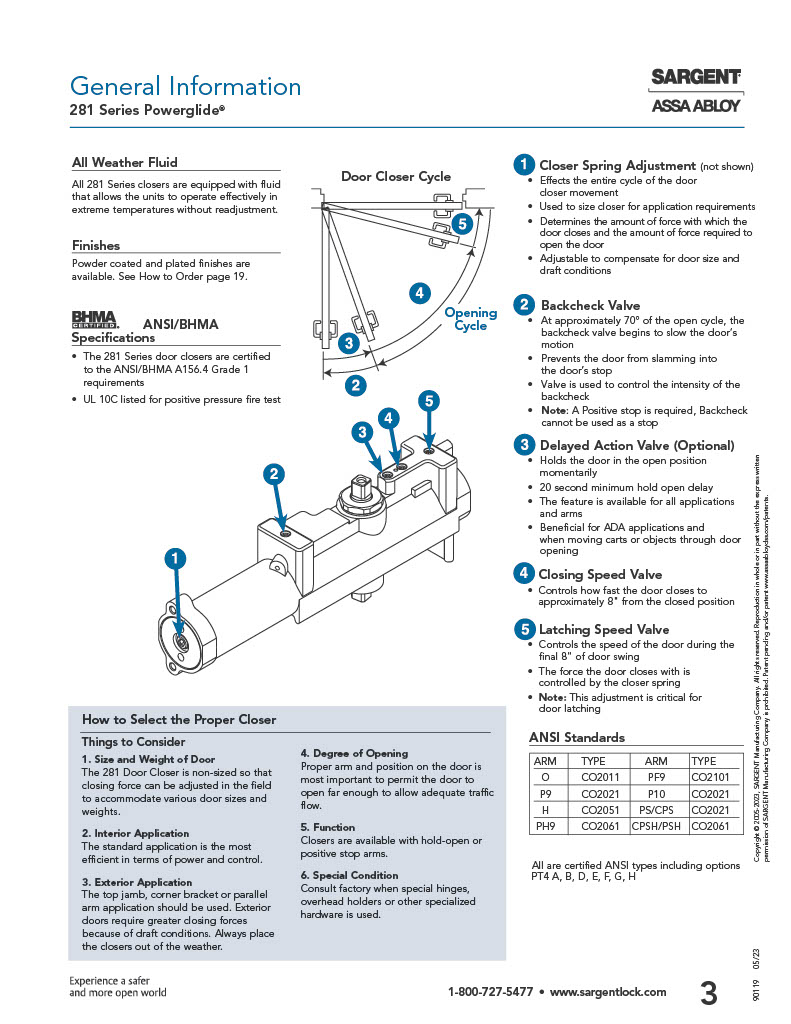

Valves:Separate brass low sensitivity control valves offer ability to separately regulate door speed, latching, backcheck and optional delayed action. - All valves are captured to prevent accidental removal, adjustable with an 1/8" Allen wrench. - Adjustable backcheck protects the door and hardware from damage during the opening cycle.

All Weather Fluid:All 281 Series closers are equipped with fluid that allows the units to operate effectively in extreme temperatures without readjustment.

DA- Delayed action valve (Optional): Holds the door in the open position momentarily - 20 second minimum hold open delay - Beneficial when moving carts or objects thru door opening and ADA applications

Power Size:*Cover:*Adjustable spring power allows 281 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory

Cover:High impact non-corrosive plastic covers standard (Optional metal cover available). Cover secured by machine screws

Fasteners:Packed w/Thru Bolts (TB), Wood & Machine Screws

ANSI:Certified ANSI/BHMA  A156.4 Grade 1   UL:Conforms to UL10C and UBC for positive pressure fire test - UL Listed and cUL Listed to Canadian Safety Standards listed for use on fire doors

10 Year Warranty

Retrofits existing Sargent 250 and 1250 Series Closer installations

Finish:EN - Sprayed Aluminum Enamel (BHMA 689), EB - Sprayed Bronze Enamel to match 10B (BHMA 690), EAB - Sprayed Brass Enamel (BHMA 696)

Model:Sargent, 281, CPSH, 281CPSH, 281 CPSH EN TB, 281CPSHENTB, 281 CPSH EB TB, 281CPSHEBTB, 281 CPSH EAB TB, 281CPSHEABTB
