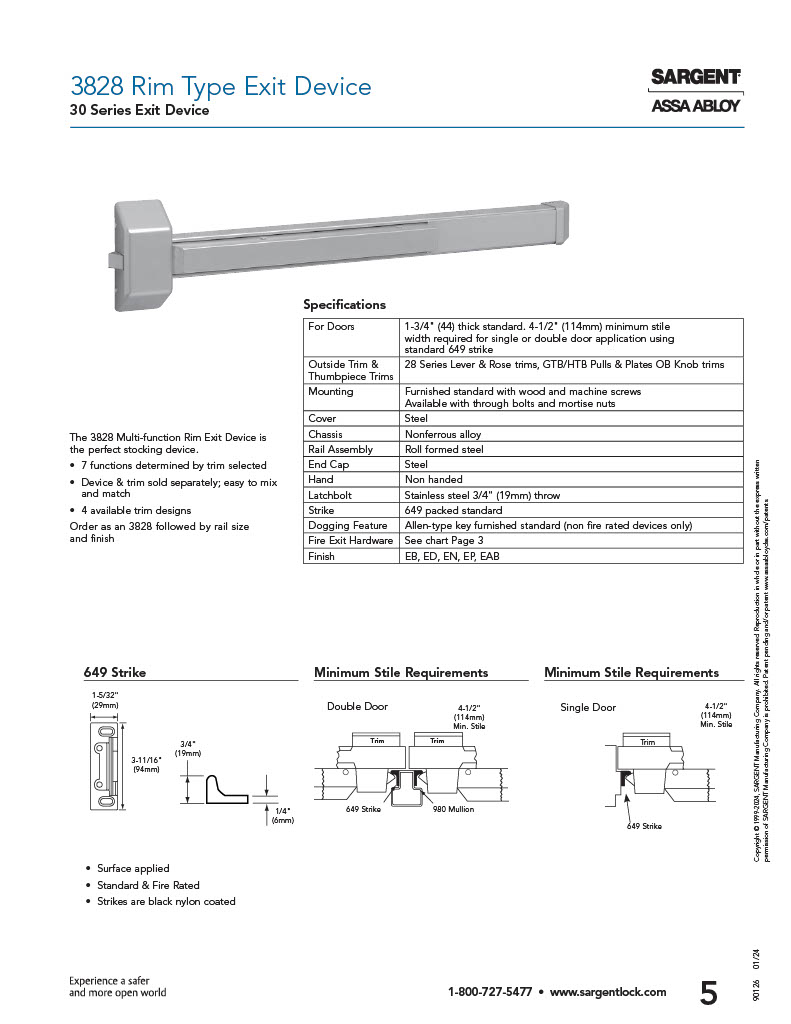

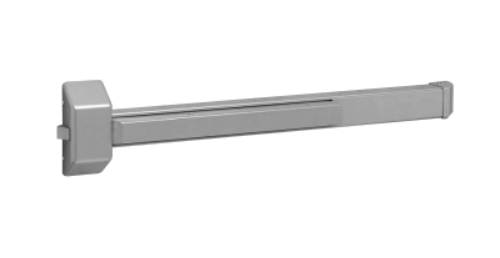

Sargent 3828-F Rim Exit Device -36"

Sargent 3828-F*Rim Exit Device*-36"

For doors:  33" through 36"  (82cm through 91cm)

 Chassis mounted unit construction assures easy installation and maintenance Tapered push rail and angled covers Steel endcaps and covers Up to five functions with a variety of trim All exit devices meet ANSI/BHMA Standard 156.3, Grade 1 UL Listed - UL Listed to Canadian safety standards Available as Fire Exit Hardware (12-)For Doors1-3/4" (44) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door application using standard 649 strike

Mounting Furnished standard with wood and machine screws Available with through bolts and mortise nuts

Cover  Steel

Chassis Nonferrous alloy

Rail AssemblyRoll formed steel

End Cap Steel

Hand  Non Handed

Latchbolt  Stainless steel 3/4" (19mm) throw

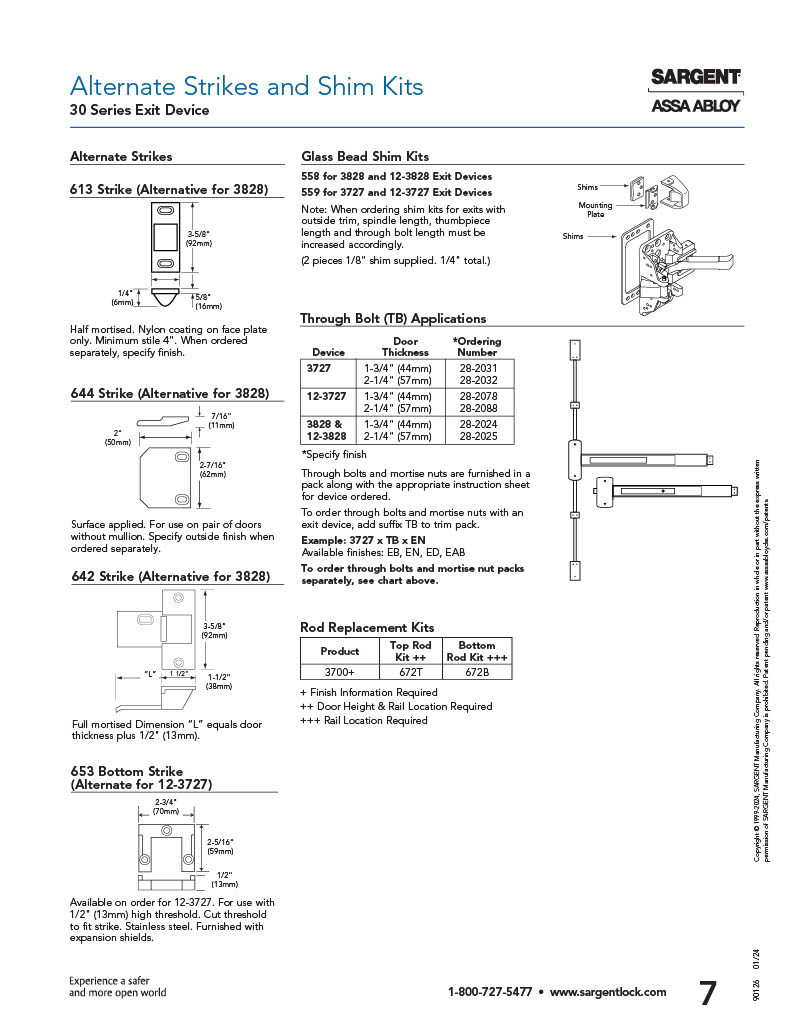

Strikes 649 packed standard

Dogging FeatureAllen-type key furnished standard (Non Fire Rated Devices Only)

Model:Sargent 3828F, 3828-F, 3828-F-EN, 3828-F-EB, 3828FEN, 3828F-EN
