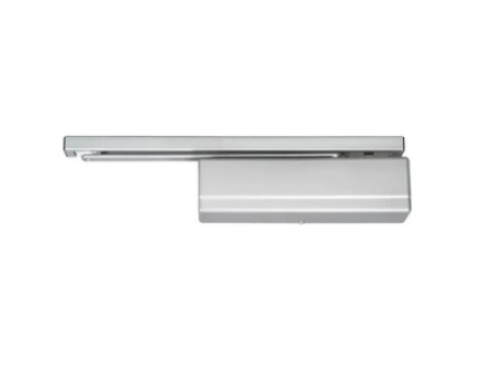

Sargent 422-CTHB2-EN-TB Cam Action Closer - Holder - Push or Pull Side Mounting, Aluminum

Sargent 422-CTHB2-EN-TB Cam Action Closer- Holder Track W/ Bumper- Push or Pull Side Mounting, Aluminum

Mortise nuts for use with machine screws, supplied with closer

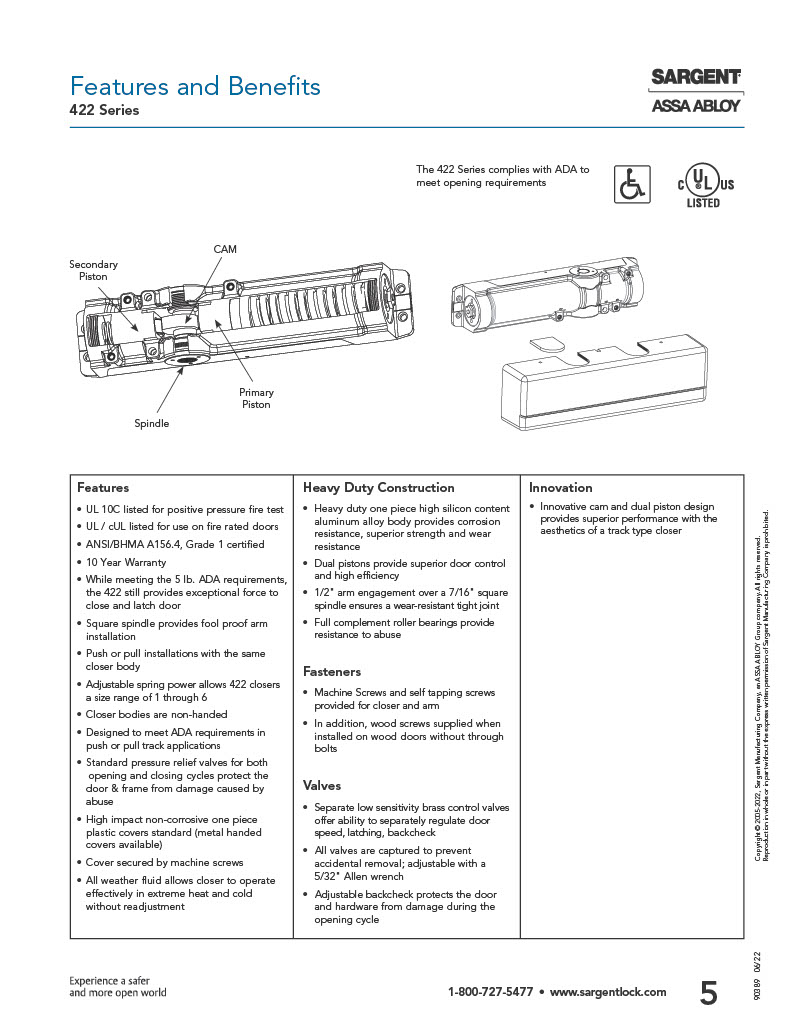

422 Series: Heavy duty one piece high silicon content aluminum alloy body provides corrosion resistance, superior strength and wear resistance. Dual pistons provide superior door control and high efficiency. 1/2" arm engagement over a 7/16 square spindle ensures a wear-resistant tight joint - Full complement roller bearings provide resistance to abuse.

Holder track with bumper

Maximum door swing 125  Degree

Adjustable hold open positions between 85 Degree and 120  Degree

Adjustable bumper provides cushion to stop door after hold open  Auxiliary stop required for abusive environments

Stop may be easily remove when not required

Non handed closer body

2-5/8" minimum door top rail

All weather fluid allows closer to operate effectively in extreme heat and cold without readjustment Heavy Duty Construction

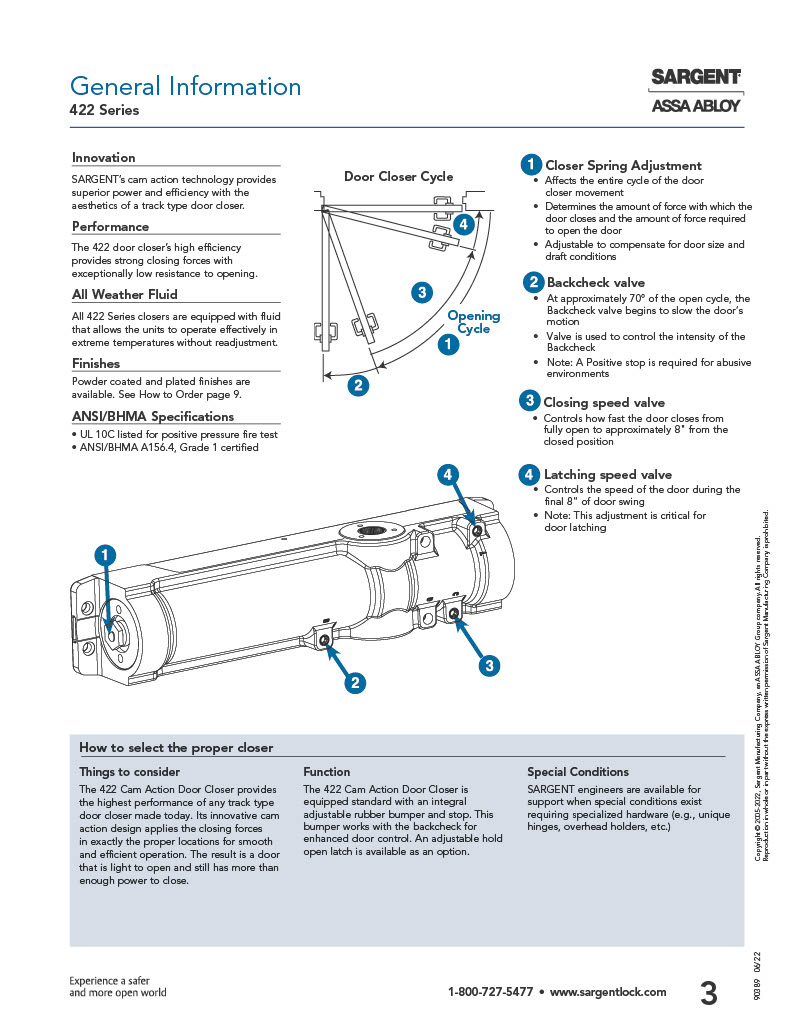

Valves: Separate low sensitivity brass control valves offer ability to separately regulate door speed, latching, backcheck All valves are captured to prevent accidental removal; adjustable with a 5/32" Allen wrench Adjustable backcheck protects the door and hardware from damage during the opening cycle

Power Size: Adjustable spring power allows 422 closers a size range of 1 through 6

Cover: High impact non-corrosive one piece plastic covers standard (Optional metal cover available) Cover secured by machine screws

Fasteners: Packed w/Thru Bolts (TB), Wood & Machine Screws)

Conforms to standards UL 10C for positive pressure fire test- UL and cUL listed for use on fire doors

10 Year Warranty

Model: Sargent, 422, 422CTB2, 422-CTB2 EN LH TB, 422-CTB2 EN RH TB
