Sargent 7804 Storeroom Mortise Lock

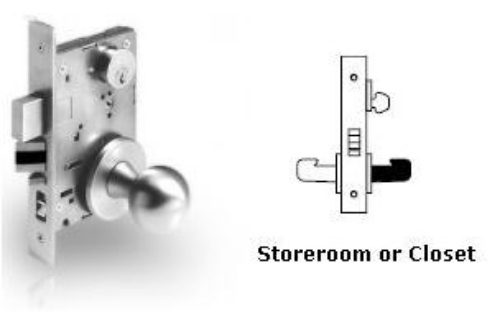

Sargent 7804Storeroom or Closet Lock - ANSI F07

Key outside retracts latchbolt - Trim outside locked at all times - Trim inside always retracts latchbolt - Auxiliary deadlatch

7800 Line Mortise Lock Specifications:

Door Thickness:1-3⁄4"(44mm) thick standard.

Backset:2-3⁄4"(70mm) only

Lock Case:12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm)

Outside Front Plate:Brass, bronze or stainless steel. 8"(203mm) x 1-1⁄4"(31mm), ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)

Springs:High carbon steel

Hubs for Knobs:Sintered iron copper infiltrated

Latchbolt:Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch

Auxiliary Deadlatch:Stainless steel, non-handed

Deadbolt:One-piece hardened stainless steel, with 1" (25mm) projection

Handing:Specify hand on order; easily field reversible

Strike:Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed

Keys:Two, nickel silver

Cylinder:Brass, size #41 (1-1/8") standard (except for Freewheeling, size #46 (1-3/4")) LA standard keyway

Finishes:03 - Bright Brass, 04 - Satin Brass, 10 - Satin Bronze, 10B - Oil Rubbed Bronze, 26 - Bright Chrome, 26D - Satin Chrome, 32 - Bright Stainless, 32D - Satin Stainless

Stile:4-1/2"(114mm) minimum stile for 8200, 4-3/4"(121mm) minimum stile for electrical function locks

Door Prep:ANSI A115.1 modified per template

Warranty:10 year limited warranty, 2 year limited warranty on electrified locks

Warranty limited to replacement of Lockbody and/or components.

Model: Sargent 7804, OB, KW1B, 26D, 7804-OB, 7804OB, 7804-OB-26D, 7804OB26D, 7804-KW1B, 7804KW1B, 7804-KW1B-26D, 7804OB26D

Certification Compliance: ANSI/BHMA: Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims. Note: Removable Core and SFIC Cylinders do not meet Security Grade 1 requirements.

ADA: Meets A117.1 Accessibility Code. Meets BOMA International 4.13.8 Complies with American Disability Act; Consult local authorities

UL Listed to Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing

Positive Pressure: Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

California: California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face
