Product Details

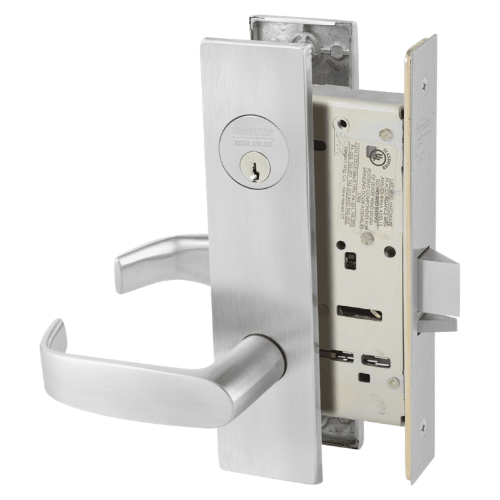

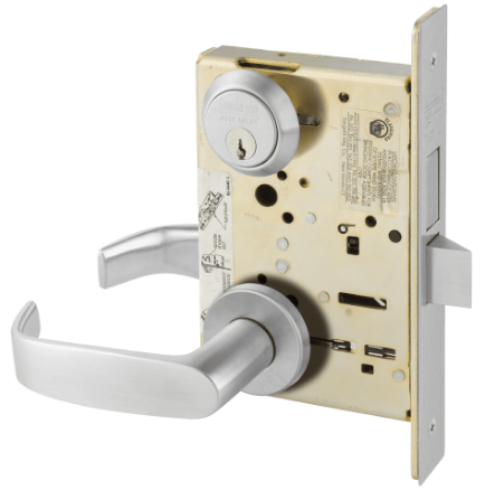

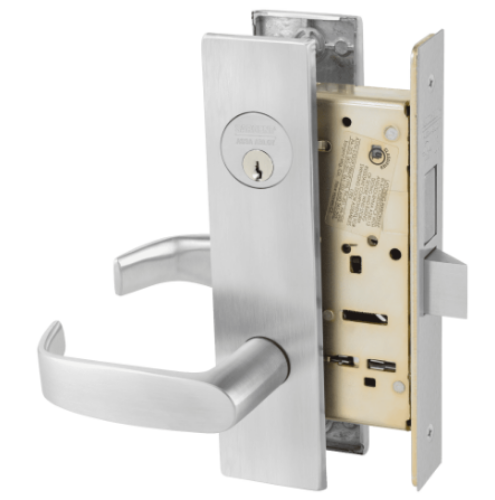

Sargent 8224Room Door Lock - ANSI F21

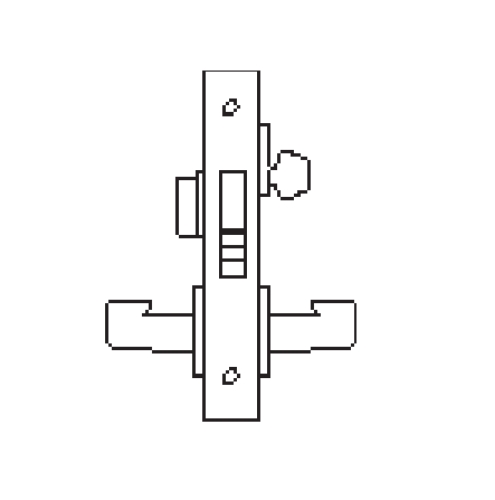

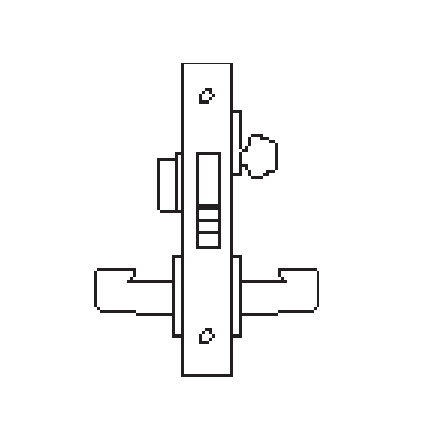

Key outside or thumbturn inside retracts and projects deadboltTrim either side retracts latchboltLatchbolt & deadbolt operate independently of each other
8200 Line Mortise Lock Specifications:
Door Thickness: 1-3⁄4" (44mm) thick standard.
Backset: 2-3⁄4" (70mm) only
Lock Case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109)
Outside Front Plate: Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI Standard A115.1.
Adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)
Springs: High carbon steel
Hubs for Levers: Cold forged steel
Latchbolt: Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch
Auxiliary Deadlatch: Stainless steel, non-handed
Deadbolt: One-piece hardened stainless steel, with 1" (25mm) projection
Handing: Specify hand on order; easily field reversible
Strike: Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed
Keys: Two, nickel silver
Cylinder: Brass, size #41 (1-1/8" ) standard (except for Freewheeling, size #46 (1-3/4") LA standard keyway
Finishes: 03 - Bright Brass, 04 - Satin Brass, 10 - Satin Bronze, 10B - Oil Rubbed Bronze, 26 - Bright Chrome, 26D - Satin Chrome, 32 - Bright Stainless, 32D - Satin Stainless
Stile: 4-1/2" (114mm) minimum stile for 8200, 4-3/4" (121mm) minimum stile for electrical function locks
Door Prep: ANSI A115.1 modified per template
Warranty: 10 year limited warranty, 2 year limited warranty on electrified locks
Warranty limited to replacement of Lockbody and/or components.
