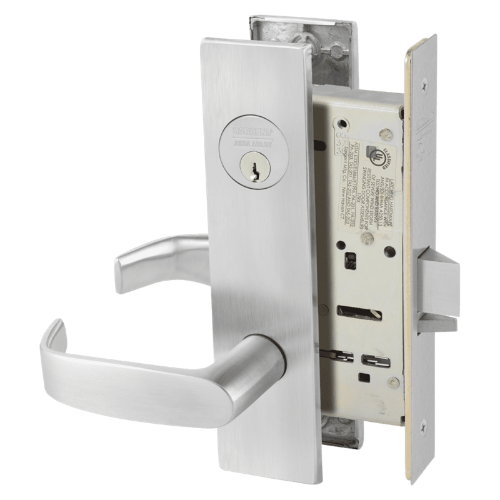

Sargent 8205 Office & Entry Mortise Lock

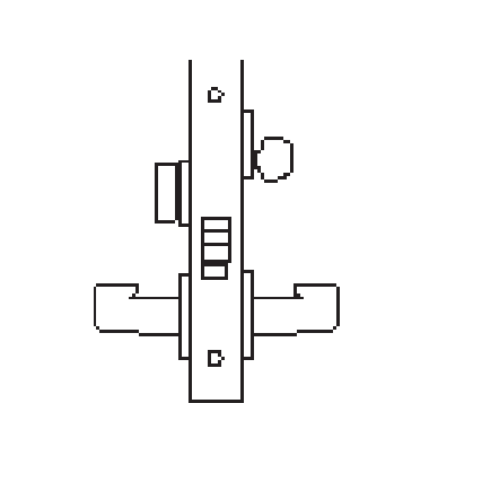

Sargent 8205 Office or Entry Lock

ANSI F04

Key outside retracts latchbolt, also locks & unlocks outside trim. Trim inside always retracts latchbolt, trim outside remains locked.

Thumbturn inside locks & unlocks outside trim

Auxiliary deadlatch A Multi-Function 8200/R8200/7800 Lockbody

The Multi-Function Advantage with rose trim:

1) Lock will accommodate 04, 05, 15 & 37 functions without additional parts.

2) By adding an additional cylinder, lock will accommodate 38 function.

3) By adding a Trim One Side Kit, lock will accommodate 06, 13, 31 & 36 functions.

NOTE: Office/Entry Function with toggle is a 55 function.

8200 Line Mortise Lock Specifications:

Door Thickness: 1-3⁄4" (44mm) thick standard.

Backset: 2-3⁄4" (70mm) only

Lock Case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109)

Outside Front Plate: Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)

Springs: High carbon steel

Hubs for Levers: Cold forged steel

Latchbolt: Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch

Auxiliary Deadlatch: Stainless steel, non-handed

Deadbolt: One-piece hardened stainless steel, with 1" (25mm) projection

Handing: Specify hand on order; easily field reversible

Strike: Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed

Keys: Two, nickel silver

Cylinder: Brass, size #41 (1-1/8" ) standard (except for Freewheeling, size #46 (1-3/4")) LA standard keyway

Finishes: 03 - Bright Brass, 04 - Satin Brass, 10 - Satin Bronze, 10B - Oil Rubbed Bronze, 26 - Bright Chrome, 26D - Satin Chrome, 32 - Bright Stainless, 32D - Satin Stainless

Stile: 4-1/2" (114mm) minimum stile for 8200, 4-3/4" (121mm) minimum stile for electrical function locks

Door Prep: ANSI A115.1 modified per template

Warranty: 10 year limited warranty, 2 year limited warranty on electrified locks

Warranty limited to replacement of Lockbody and/or components.

Model: Sargent 8205, LNB, LNL, LNP, LNJ,03, 04, 10, 10B, 26, 26D, 8205-LNB, 8205LNB, 8205-LNB-03, 8205LNB03, 8205-LNB-04, 8205LNB04, 8205-LNB-10, 8205LNB10, 8205-LNB-10B, 8205LNB10B, 8205-LNB-26, 8205LNB26, 8205-LNB-26D, 8205LNB26D, 8205-LNL, 8205LNL, 8205-LNL-03, 8205LNL03, 8205-LNL-04, 8205LNL04, 8205-LNL-10, 8205LNL10, 8205-LNL-10B, 8205LNL10B, 8205-LNL-26, 8205LNL26, 8205-LNL-26D, 8205LNL26D,8205-LNJ, 8205LNJ, 8205-LNJ-03, 8205LNJ03, 8205-LNJ-04, 8205LNJ04, 8205-LNJ-10, 8205LNJ10, 8205-LNJ-10B, 8205LNJ10B, 8205-LNJ-26, 8205LNJ26, 8205-LNJ-26D, 8205LNJ26D, 8205-LNP, 8205LNP, 8205-LNP-03, 8205LNP03, 8205-LNP-04, 8205LNP04, 8205-LNP-10, 8205LNP10, 8205-LNP-10B, 8205LNP10B, 8205-LNP-26, 8205LNP26, 8205-LNP-26D, 8205LNP26D

8205-LW1B, 8205LW1B, 8205-LW1B-03, 8205LW1B03, 8205-LW1B-04, 8205LW1B04, 8205-LW1B-10, 8205LW1B10, 8205-LW1B-10B, 8205LW1B10B, 8205-LW1B-26, 8205LW1B26, 8205-LW1B-26D, 8205LW1B26D, 8205-LW1L, 8205LW1L, 8205-LW1L-03, 8205LW1L03, 8205-LW1L-04, 8205LW1L04, 8205-LW1L-10, 8205LW1L10, 8205-LW1L-10B, 8205LW1L10B, 8205-LW1L-26, 8205LW1L26, 8205-LW1L-26D, 8205LW1L26D,8205-LW1J, 8205LW1J, 8205-LW1J-03, 8205LW1J03, 8205-LW1J-04, 8205LW1J04, 8205-LW1J-10, 8205LW1J10, 8205-LW1J-10B, 8205LW1J10B, 8205-LW1J-26, 8205LW1J26, 8205-LW1J-26D, 8205LW1J26D, 8205-LW1P, 8205LW1P, 8205-LW1P-03, 8205LW1P03, 8205-LW1P-04, 8205LW1P04, 8205-LW1P-10, 8205LW1P10, 8205-LW1P-10B, 8205LW1P10B, 8205-LW1P-26, 8205LW1P26, 8205-LW1P-26D, 8205LW1P26D

Certification Compliance: ANSI/BHMA: Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims. Note: Removable Core and SFIC Cylinders do not meet Security Grade 1 requirements.

ADA: Meets A117.1 Accessibility Code. Meets BOMA International 4.13.8 Complies with American Disability Act; Consult local authorities

UL  UL and UL Listed to Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing

Positive Pressure: Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

California: California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face
