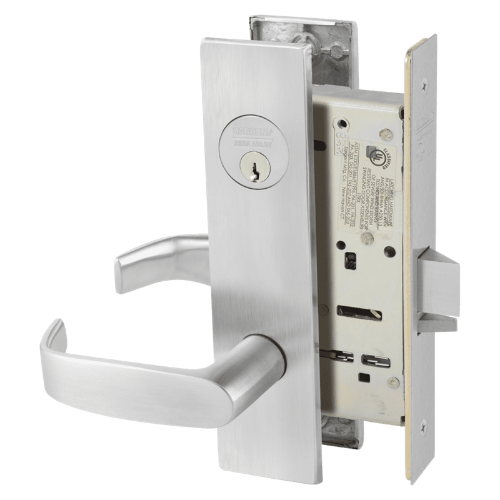

Sargent 8204 Storeroom Mortise Lock

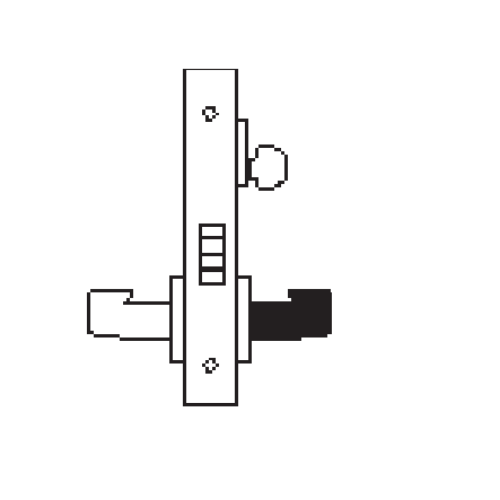

Sargent 8204Storeroom or Closet Lock - ANSI F07

Key outside retracts latchboltTrim outside locked at all timesTrim inside always retracts latchbolt Auxiliary deadlatch

8200 Line Mortise Lock Specifications:

Door Thickness:1-3⁄4" (44mm) thick standard.

Backset:2-3⁄4" (70mm) only

Lock Case:12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109)

Outside Front Plate:Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)

Springs:High carbon steel

Hubs for Levers:Cold forged steel

Latchbolt:Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch

Auxiliary Deadlatch:Stainless steel, non-handed

Deadbolt:One-piece hardened stainless steel, with 1" (25mm) projection

Handing:Specify hand on order; easily field reversible

Strike:Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed

Keys:Two, nickel silver

Cylinder:Brass, size #41 (1-1/8" ) standard (except for Freewheeling, size #46 (1-3/4") LA standard keyway

Finishes:03 - Bright Brass, 04 - Satin Brass, 10 - Satin Bronze, 10B - Oil Rubbed Bronze, 26 - Bright Chrome, 26D - Satin Chrome, 32 - Bright Stainless, 32D - Satin Stainless

Stile:4-1/2" (114mm) minimum stile for 8200, 4-3/4" (121mm) minimum stile for electrical function locks

Door Prep:ANSI A115.1 modified per template

Warranty:10 year limited warranty, 2 year limited warranty on electrified locks

Warranty limited to replacement of Lockbody and/or components.

Model: Sargent 8204, LNB, LNL, LNP, LNJ,03, 04, 10, 10B, 26, 26D, 8204-LNB, 8204LNB, 8204-LNB-03, 8204LNB03, 8204-LNB-04, 8204LNB04, 8204-LNB-10, 8204LNB10, 8204-LNB-10B, 8204LNB10B, 8204-LNB-26, 8204LNB26, 8204-LNB-26D, 8204LNB26D, 8204-LNL, 8204LNL, 8204-LNL-03, 8204LNL03, 8204-LNL-04, 8204LNL04, 8204-LNL-10, 8204LNL10, 8204-LNL-10B, 8204LNL10B, 8204-LNL-26, 8204LNL26, 8204-LNL-26D, 8204LNL26D,8204-LNJ, 8204LNJ, 8204-LNJ-03, 8204LNJ03, 8204-LNJ-04, 8204LNJ04, 8204-LNJ-10, 8204LNJ10, 8204-LNJ-10B, 8204LNJ10B, 8204-LNJ-26, 8204LNJ26, 8204-LNJ-26D, 8204LNJ26D, 8204-LNP, 8204LNP, 8204-LNP-03, 8204LNP03, 8204-LNP-04, 8204LNP04, 8204-LNP-10, 8204LNP10, 8204-LNP-10B, 8204LNP10B, 8204-LNP-26, 8204LNP26, 8204-LNP-26D, 8204LNP26D

8204-LW1B, 8204LW1B, 8204-LW1B-03, 8204LW1B03, 8204-LW1B-04, 8204LW1B04, 8204-LW1B-10, 8204LW1B10, 8204-LW1B-10B, 8204LW1B10B, 8204-LW1B-26, 8204LW1B26, 8204-LW1B-26D, 8204LW1B26D, 8204-LW1L, 8204LW1L, 8204-LW1L-03, 8204LW1L03, 8204-LW1L-04, 8204LW1L04, 8204-LW1L-10, 8204LW1L10, 8204-LW1L-10B, 8204LW1L10B, 8204-LW1L-26, 8204LW1L26, 8204-LW1L-26D, 8204LW1L26D,8204-LW1J, 8204LW1J, 8204-LW1J-03, 8204LW1J03, 8204-LW1J-04, 8204LW1J04, 8204-LW1J-10, 8204LW1J10, 8204-LW1J-10B, 8204LW1J10B, 8204-LW1J-26, 8204LW1J26, 8204-LW1J-26D, 8204LW1J26D, 8204-LW1P, 8204LW1P, 8204-LW1P-03, 8204LW1P03, 8204-LW1P-04, 8204LW1P04, 8204-LW1P-10, 8204LW1P10, 8204-LW1P-10B, 8204LW1P10B, 8204-LW1P-26, 8204LW1P26, 8204-LW1P-26D, 8204LW1P26D

Certification Compliance: ANSI/BHMA: Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims. Note: Removable Core and SFIC Cylinders do not meet Security Grade 1 requirements.

ADA: Meets A117.1 Accessibility Code. Meets BOMA International 4.13.8 Complies with American Disability Act; Consult local authorities

UL Listed to Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing

Positive Pressure: Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

California: California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face
