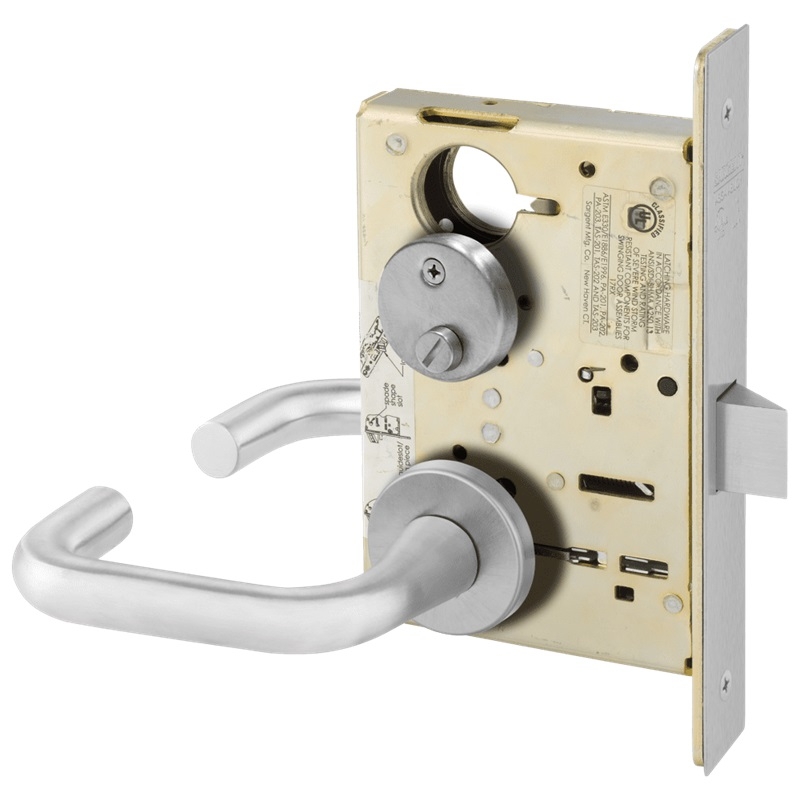

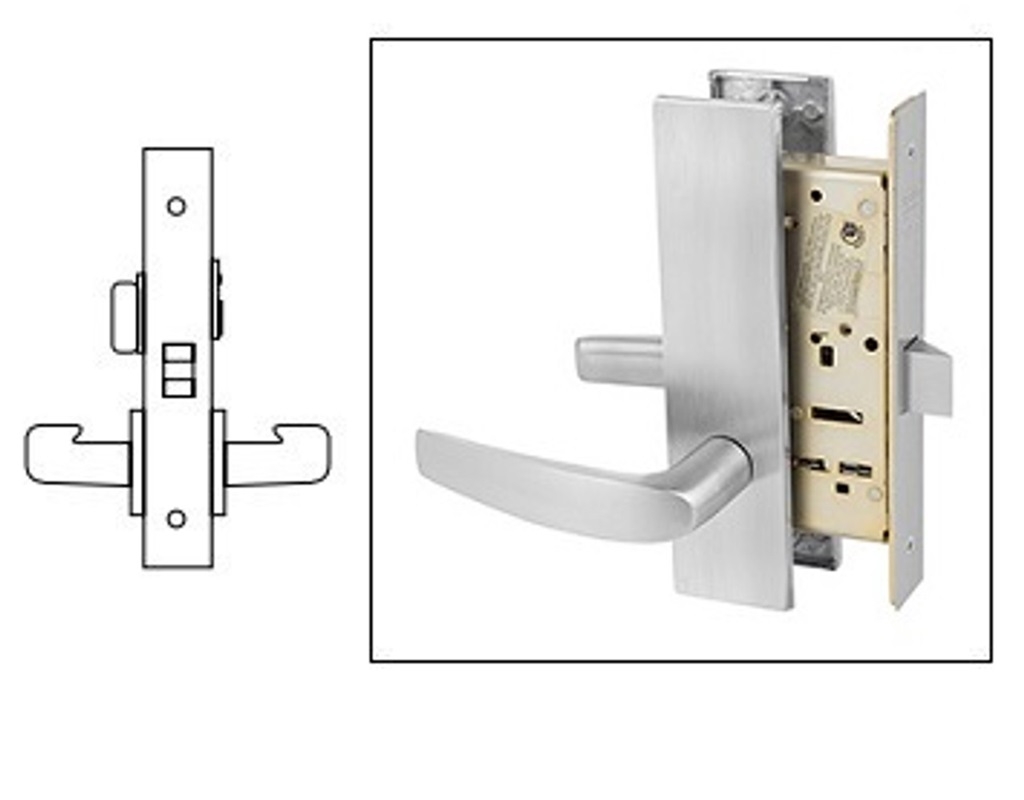

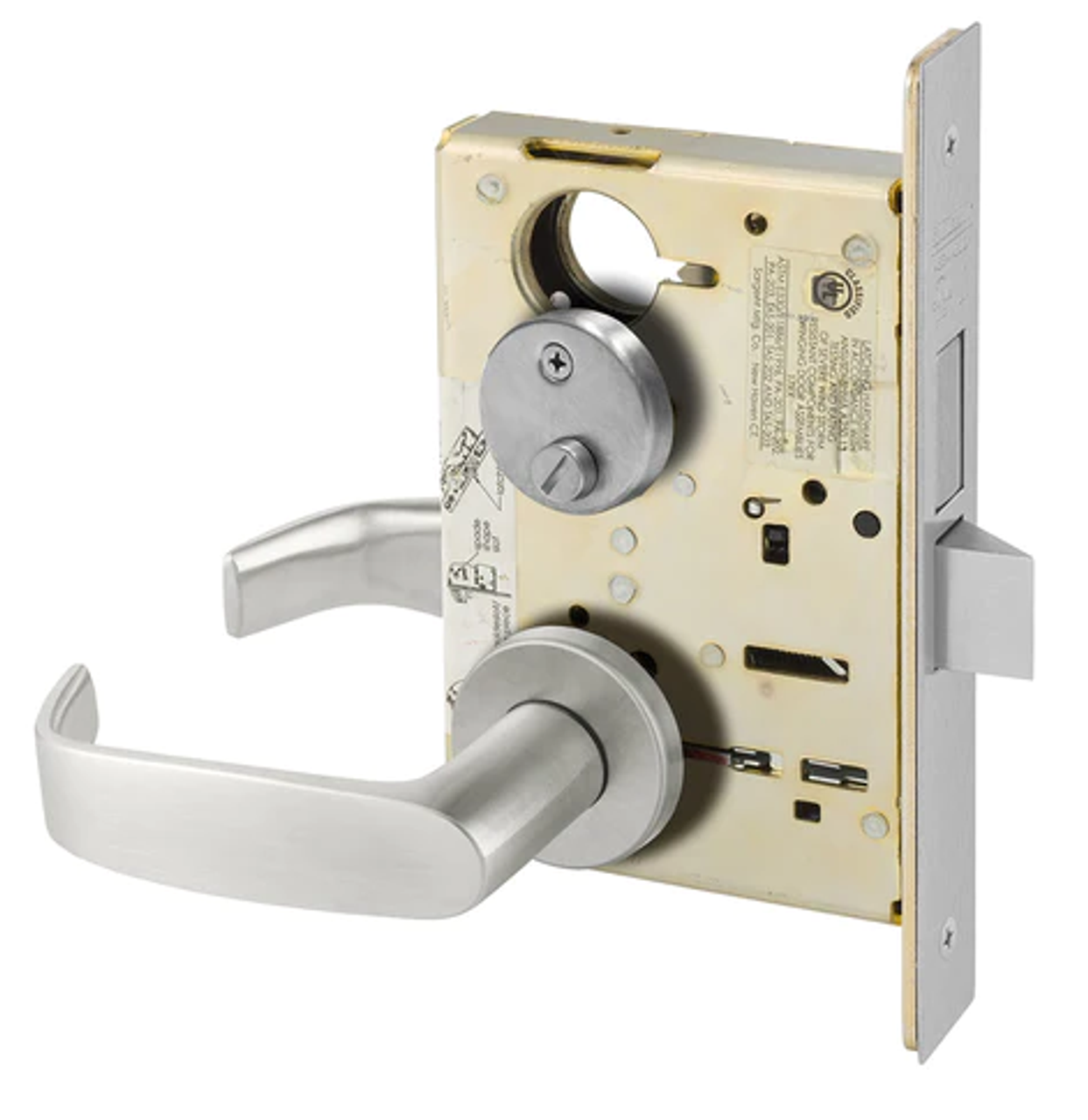

Sargent 8266 Privacy Bath/Bedroom Mortise Lock

About this item

The Sargent 8266 is the privacy bath and bedroom function in the Sargent 8200 Series, the mortise lock platform that completed independent UL cycle testing at 16 million cycles and exceeds ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 simultaneously. The 8266 belongs to single-occupancy restrooms, hotel guestrooms, private offices, healthcare exam rooms, and any commercial opening where occupants need to lock themselves in from the inside while facility staff retain emergency access from the exterior. American Locksets is an authorized Allegion Sargent dealer stocking the 8266 with same-day shipping and free shipping on all orders over $300.

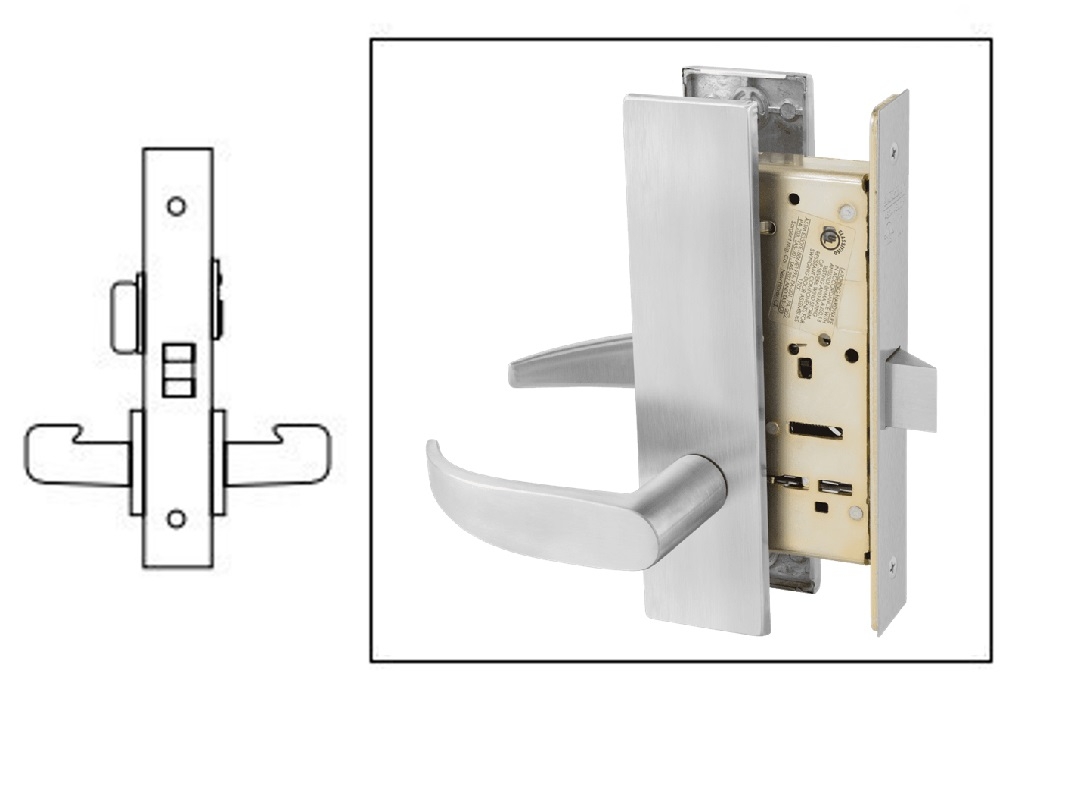

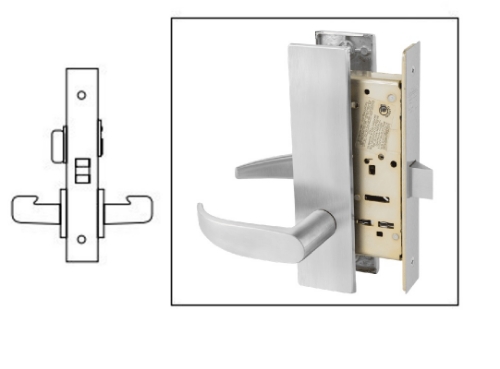

Sargent 8266 Privacy Bath/Bedroom Mortise Lock, ANSI Function F19, 8200 Series Grade 1

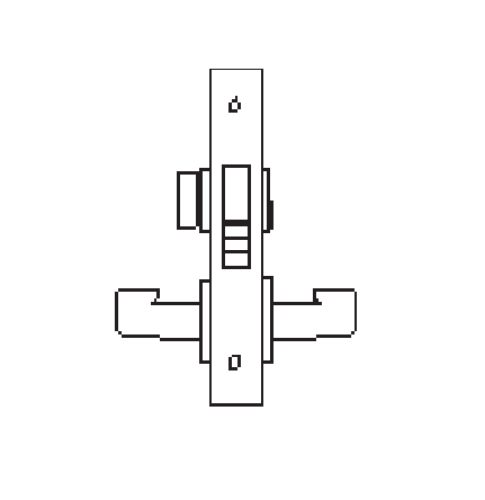

The 8266 operates on ANSI Function F19. The inside thumbturn retracts and projects the deadbolt, locking the outside trim when the deadbolt is thrown. The outside lever retracts the latchbolt at all times except when the deadbolt is projected. Operating the inside lever retracts both the latchbolt and the deadbolt simultaneously, which releases the outside lever in a single motion for immediate egress without having to manipulate the thumbturn first. The inside lever is always free.

Emergency access from the exterior works three ways: by coin, by standard screwdriver, or by the Sargent emergency key (part number 14-0057, ordered separately). That emergency release retracts and projects the deadbolt without a standard cylinder key, which is the correct behavior for healthcare and hospitality applications where staff need rapid privacy override capability without managing a keyed cylinder per door.

MicroShield Antimicrobial Option

The Sargent 8266 is available with MicroShield, Sargent's silver-based antimicrobial finish coating. MicroShield permanently suppresses the growth of bacteria, algae, fungus, mold, and mildew on the lock surface. It is EPA registered, NSF approved, and FDA listed. For healthcare facilities, accessible restrooms, and hospitality properties with high surface contact requirements, the MicroShield option is available on the same 8266 lock body without changing the door prep or function.

Specifications

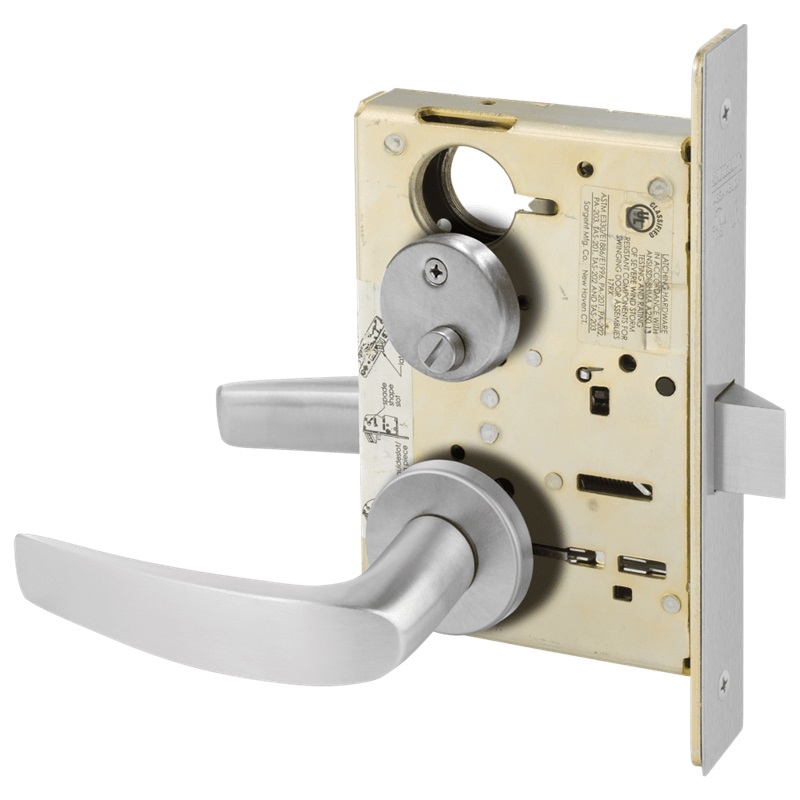

The 8200 Series lock case is 12-gauge heavy-duty wrought steel, zinc dichromate plated, with a case thickness of 7/64 inch (3mm / 0.109 inch). The internal front is 1/8 inch (0.125 inch) cold-rolled steel. Hubs are cold-forged steel for wear resistance across high cycle counts.

• Backset: 2-3/4 inch (70mm) only

• Door thickness: 1-3/4 inch (44mm) standard

• Minimum stile: 4-1/2 inch (114mm) for mechanical functions

• Front plate: 8 inch (203mm) x 1-1/4 inch (31mm), brass, bronze, or stainless steel, ANSI/BHMA A156.115 standard, adjustable from flat to 1/8 inch (3mm) bevel in 2 inch (51mm)

• Latchbolt: Stainless steel, 3/4 inch (19mm) projection, one-piece, anti-friction, reversible

• Deadbolt: One-piece hardened stainless steel, 1 inch (25mm) projection

• Auxiliary deadlatch: Stainless steel, non-handed

• Strike: Brass, bronze, or stainless steel, ANSI standard curved lip, non-handed, strike box optional

• Emergency release: By coin, screwdriver, or key 14-0057 (sold separately)

• Handing: Field reversible without removing parts or opening lock case

Certifications

ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1. UL and cUL listed for 3-hour fire doors (A label, single door 4 x 10 feet and double door 8 x 10 feet), stamped letter F and UL symbol on armored front. Meets ANSI/UL 10C Positive Pressure Fire Test. Windstorm certified, Florida Building Code compliant, confirm local jurisdiction. ADA compliant per BOMA 4.13.8. California State Reference Code compliant for levers with returns. Independent UL cycle testing at 16 million cycles, Verification ID V584148, exceeding the 1 million cycle Grade 1 requirement by 14 times. 10-year limited warranty.

Note: LFIC removable core and SFIC cylinders do not meet Security Grade 1 requirements on the 8266. Use standard mortise cylinders for Security Grade 1 compliance.

8266 vs. Related 8200 Privacy Functions

The 8266 privacy function uses an inside thumbturn that locks the outside trim via deadbolt projection. For institutional settings requiring a different emergency override method or a coin-only release without a thumbturn option, confirm trim selection against the full 8200 Series catalog before specifying. The standard emergency key 14-0057 must be ordered separately for any installation that requires staff override capability.
