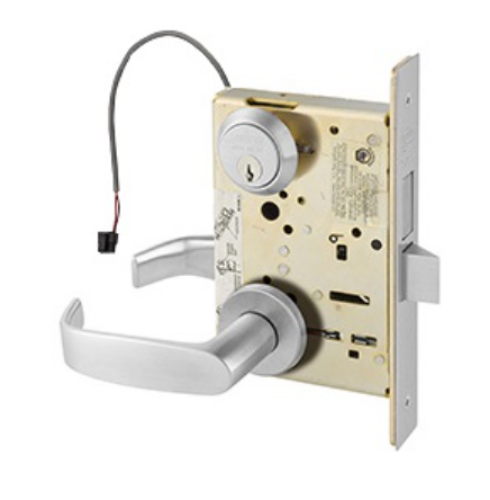

Sargent 8270 Electromechanical Mortise Lock - Fail Safe

Sargent 8270 Electromechanical Mortise Lock - Fail Safe

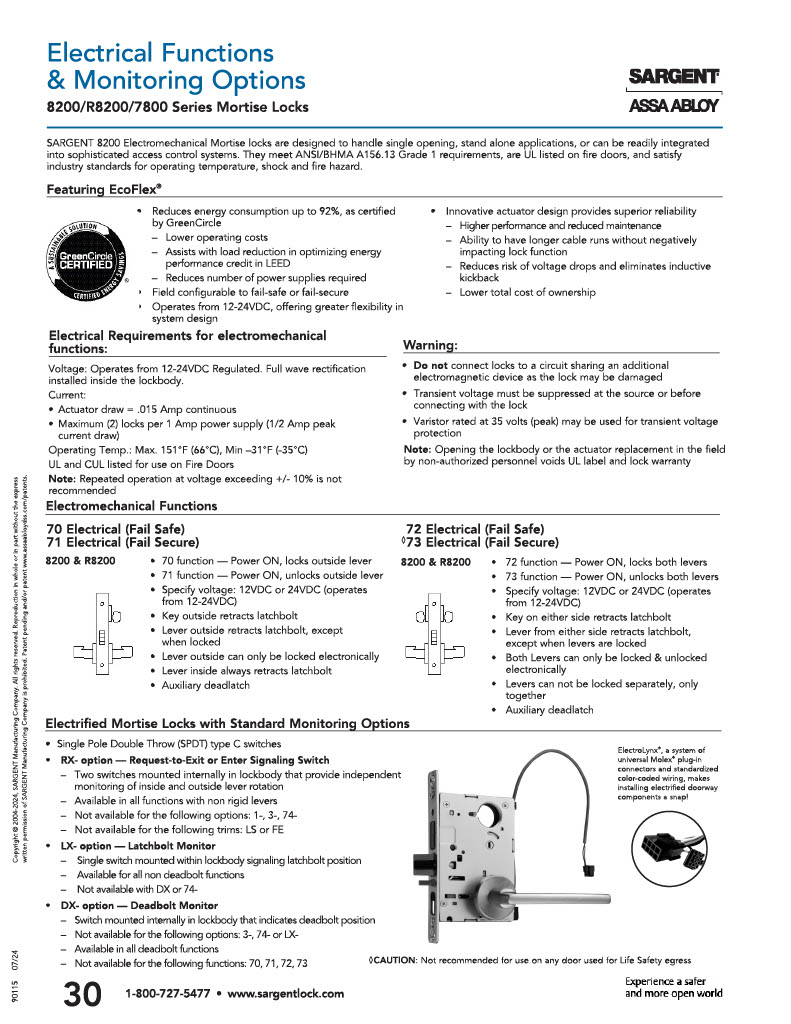

Power ON, locks outside leverSpecify voltage: 12VDC or 24VDC (operates from 12-24VDC)Key outside retracts latchboltLever outside retracts latchbolt, except when lockedLever outside can only be locked electronicallyLever inside always retracts latchboltAuxiliary deadlatch

Ecoflex electrified mortise locks dramatically reduce energy consumption, resulting in lower operating costs and fewer power supplies. In addition, they offer a reliable, flexible and versatile locking solution, with a common lock for 12 – 24V applications, which can easily be field configured to fail-safe or fail-secure operation

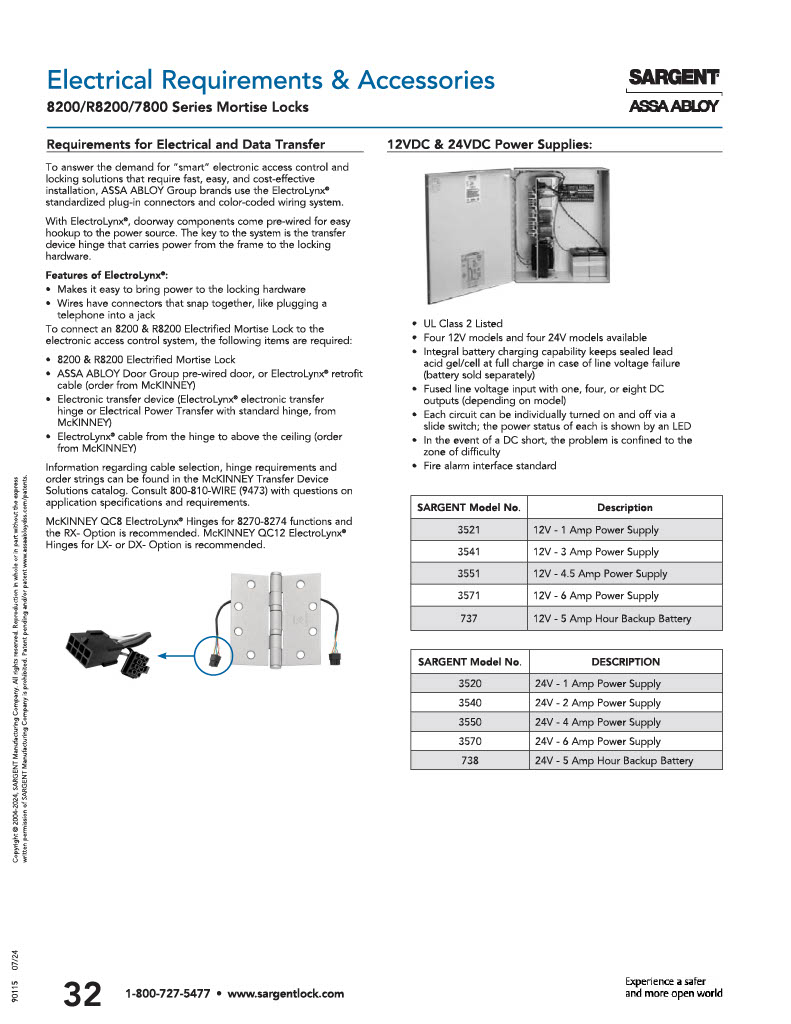

Current:

Actuator draw = .015 Amp continuousMaximum (2) locks per 1 Amp power supply (1/2 Amp peak current draw)

Operating Temp.: Max. 151 F (66 C), Min –31 F (-35 C)

Note: Repeated operation at voltage exceeding +/- 10% is not recommended

Do not connect locks to a circuit sharing an additional electromagnetic device as the lock may be damagedTransient voltage must be suppressed at the source or before connecting with the lockVaristor rated at 35 volts (peak) may be used for transient voltage protection

Note: Opening the lockbody or the actuator replacement in the field by non-authorized personnel voids UL label and lock warranty

Door Thickness: 1-3⁄4" (44mm) thick standard.

Backset: 2-3⁄4" (70mm) only

Lock Case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109 )

Outside Front Plate: Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)

Springs: High carbon steel

Hubs for Levers: Cold forged steel

Latchbolt: Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch

Auxiliary Deadlatch: Stainless steel, non-handed

Deadbolt: One-piece hardened stainless steel, with 1" (25mm) projection

Strike: Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed

Keys: Two, nickel silver

Cylinder :Brass, size #41 (1-1/8) standard except for Freewheeling, size #46 (1-3/4) LA standard keyway

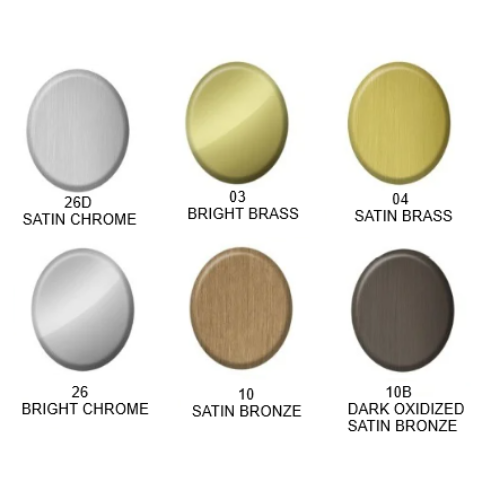

Finishes: 03 - Bright Brass, 04 - Satin Brass, 10 - Satin Bronze, 10B - Oil Rubbed Bronze, 26 - Bright Chrome, 26D - Satin Chrome, 32 - Bright Stainless, 32D - Satin Stainless

Stile: 4-1/2" (114mm) minimum stile for 8200, 4-3/4" (121mm) minimum stile for electrical function locks

Door Prep: ANSI A115.1 modified per template

Warranty: 10 year limited warranty, 2 year limited warranty on electrified locks

Warranty limited to replacement of Lockbody and/or components.

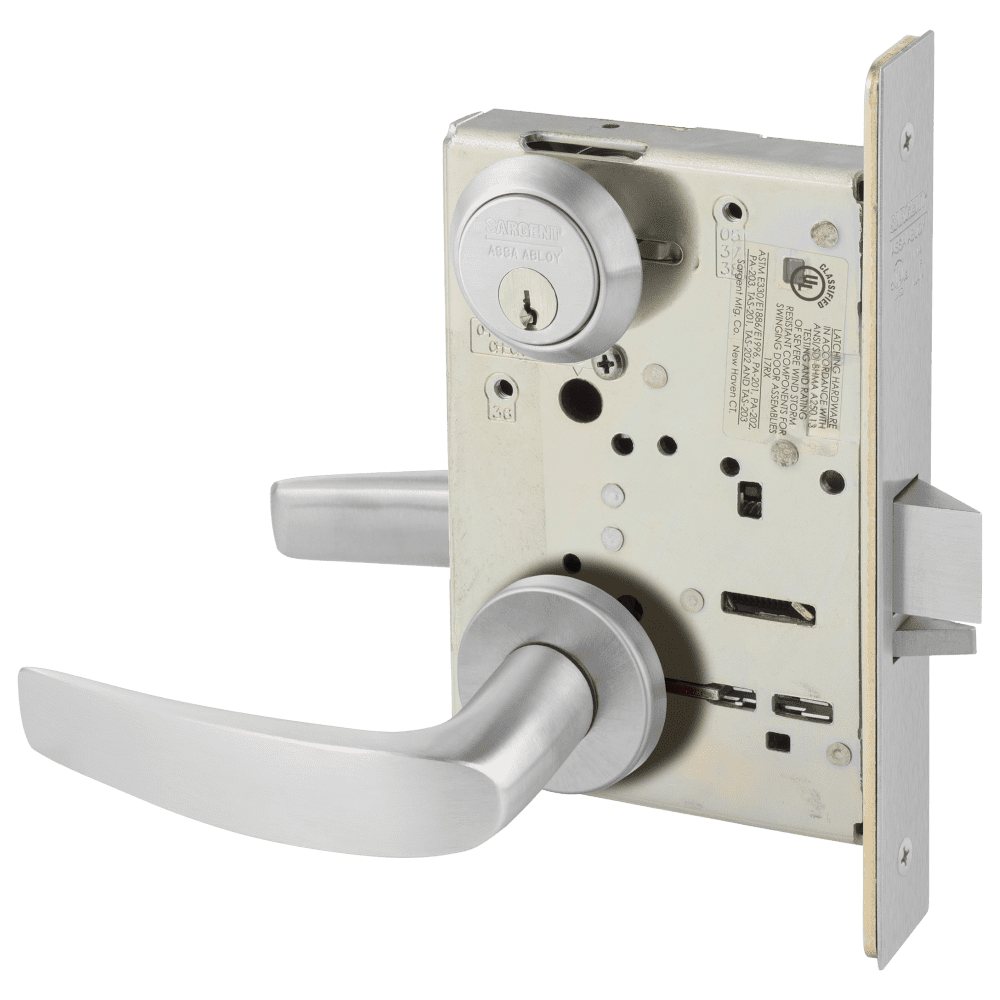

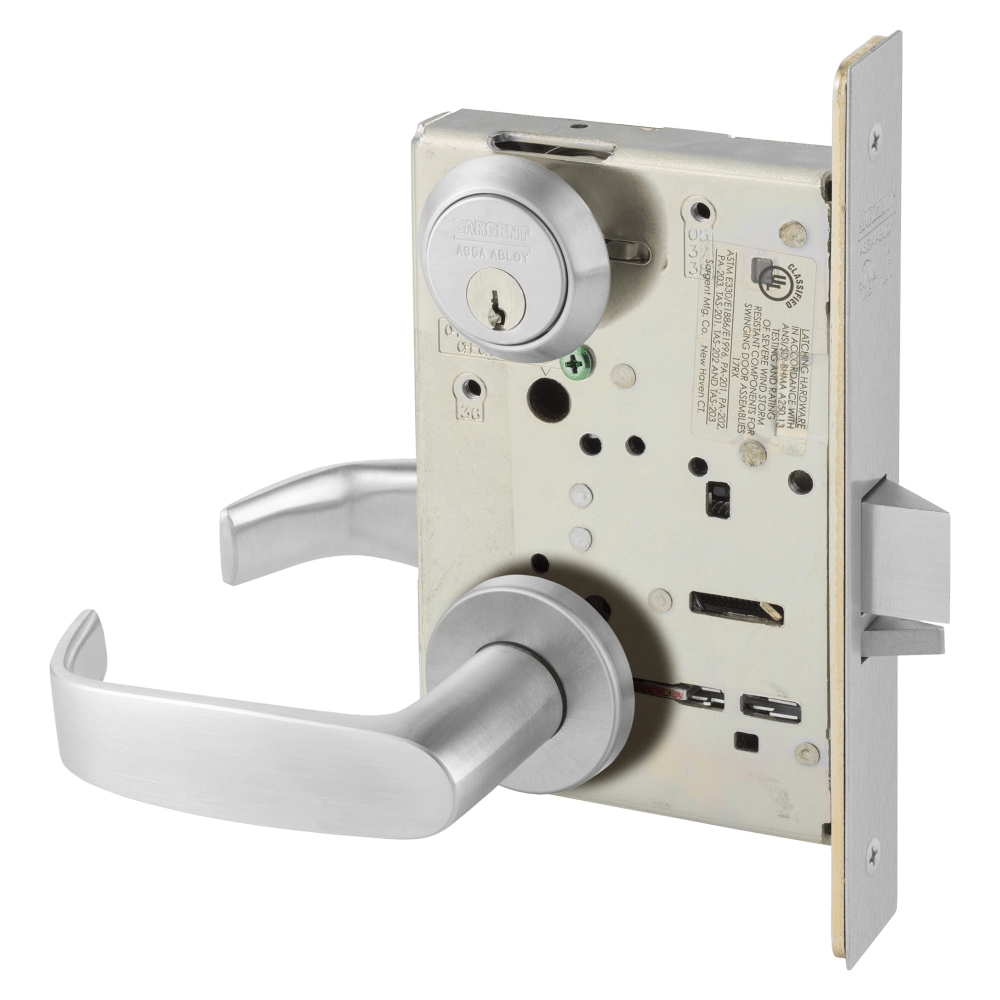

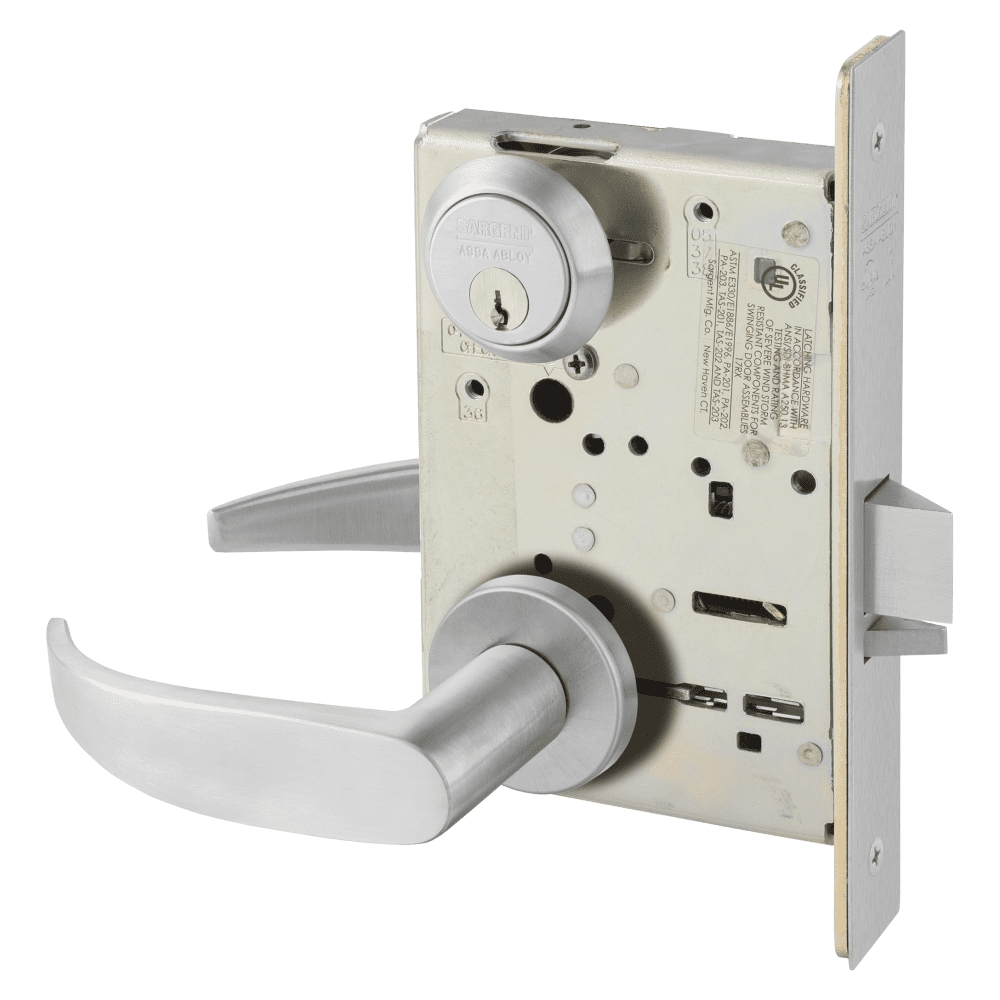

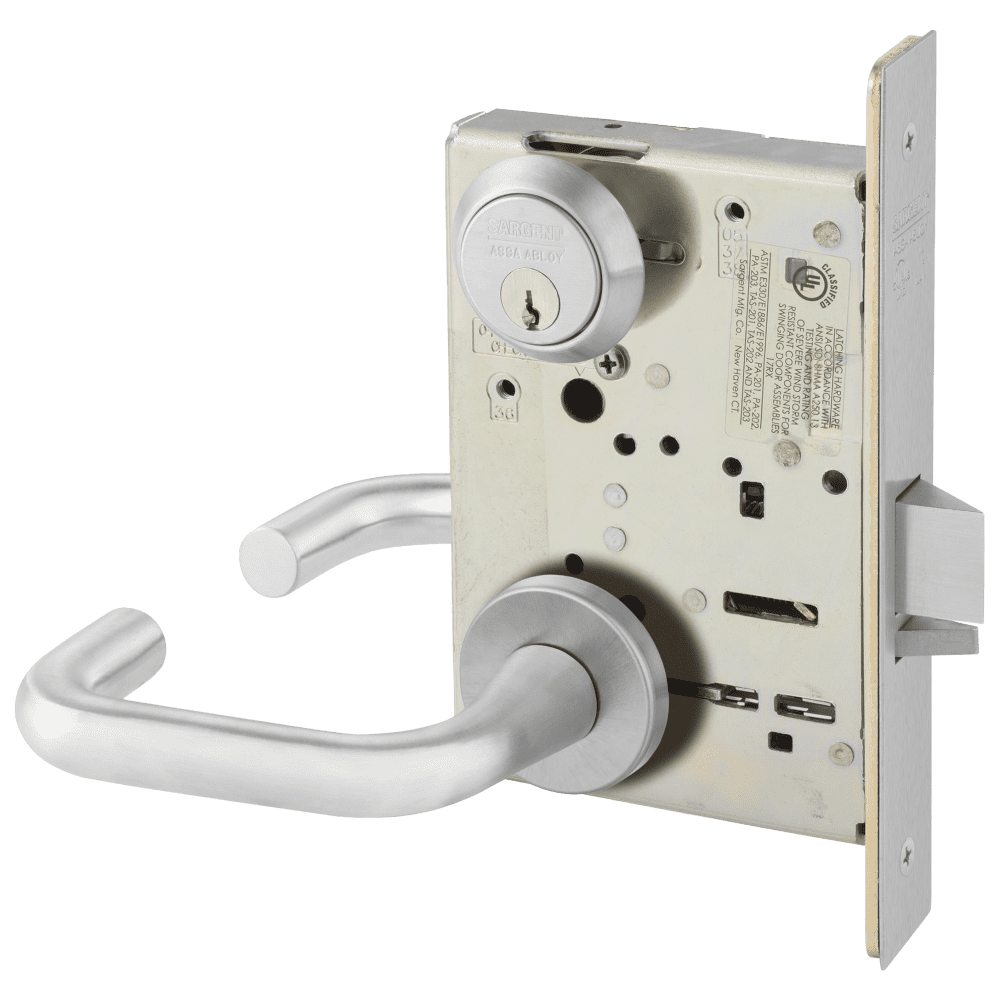

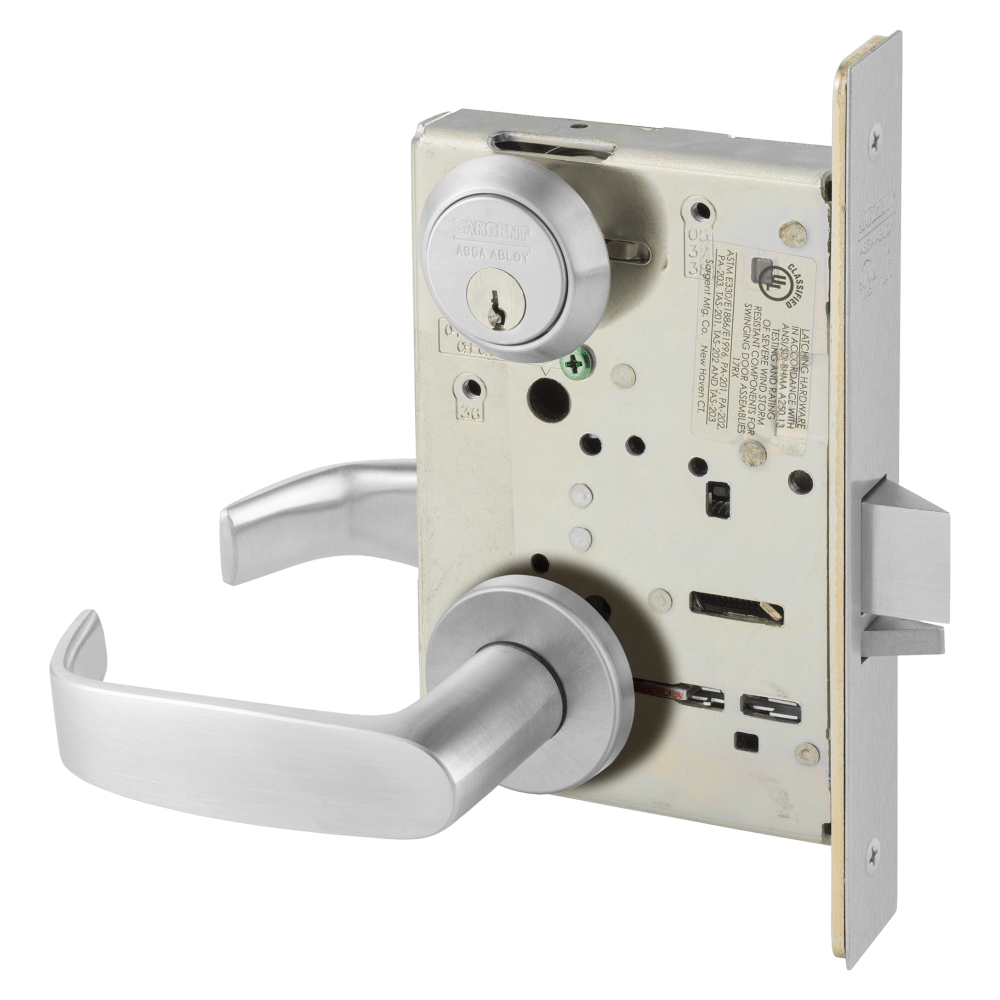

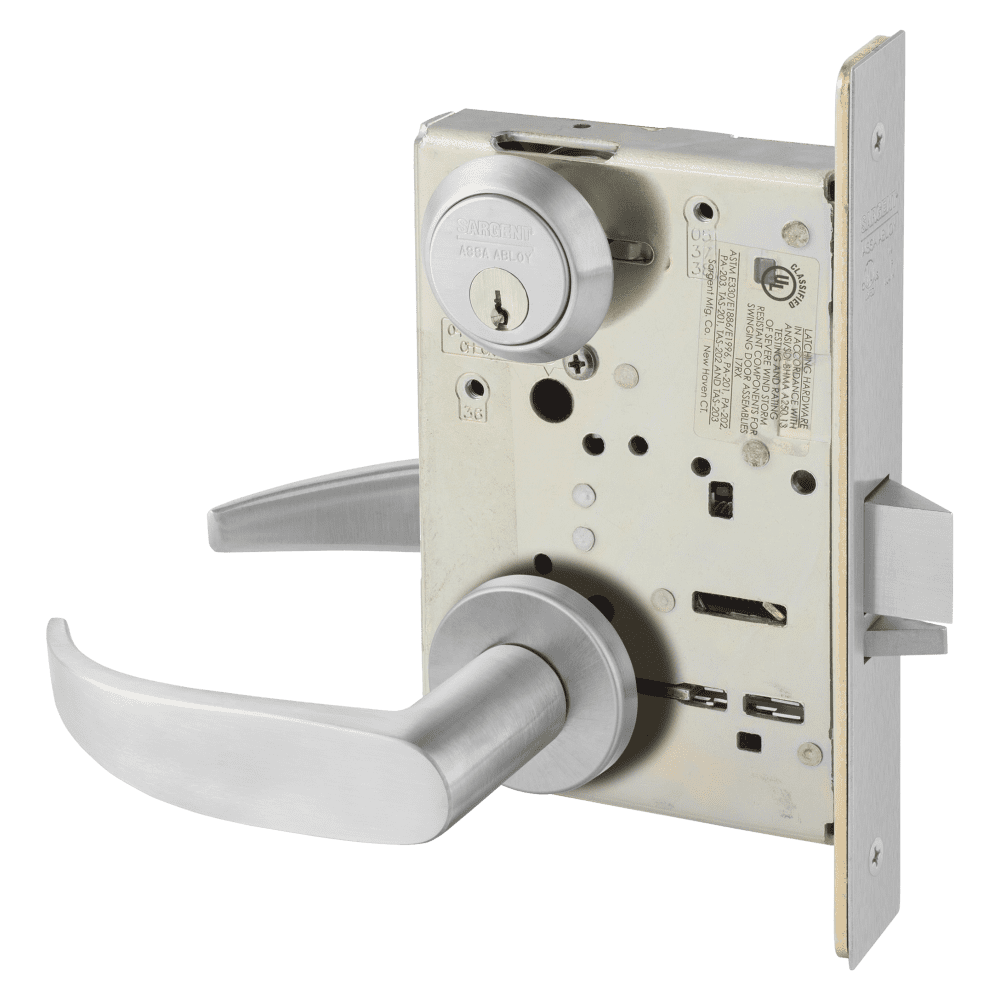

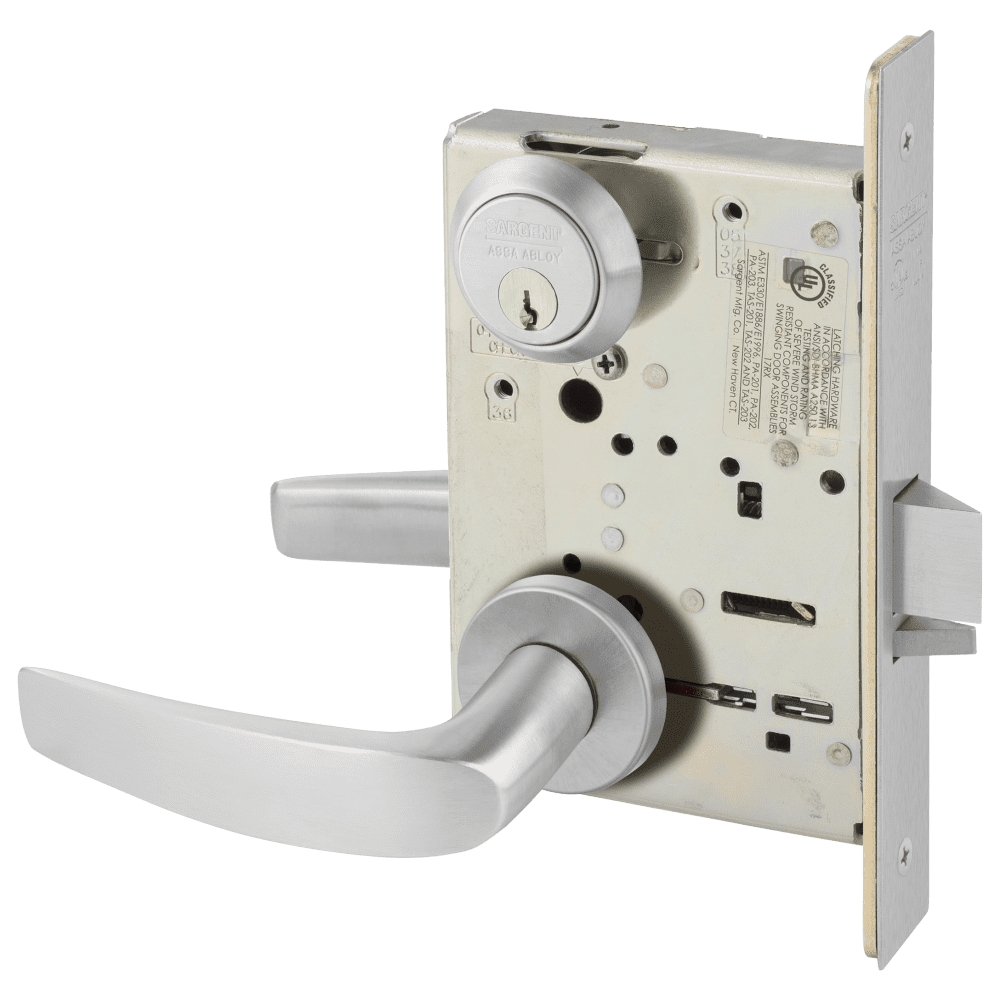

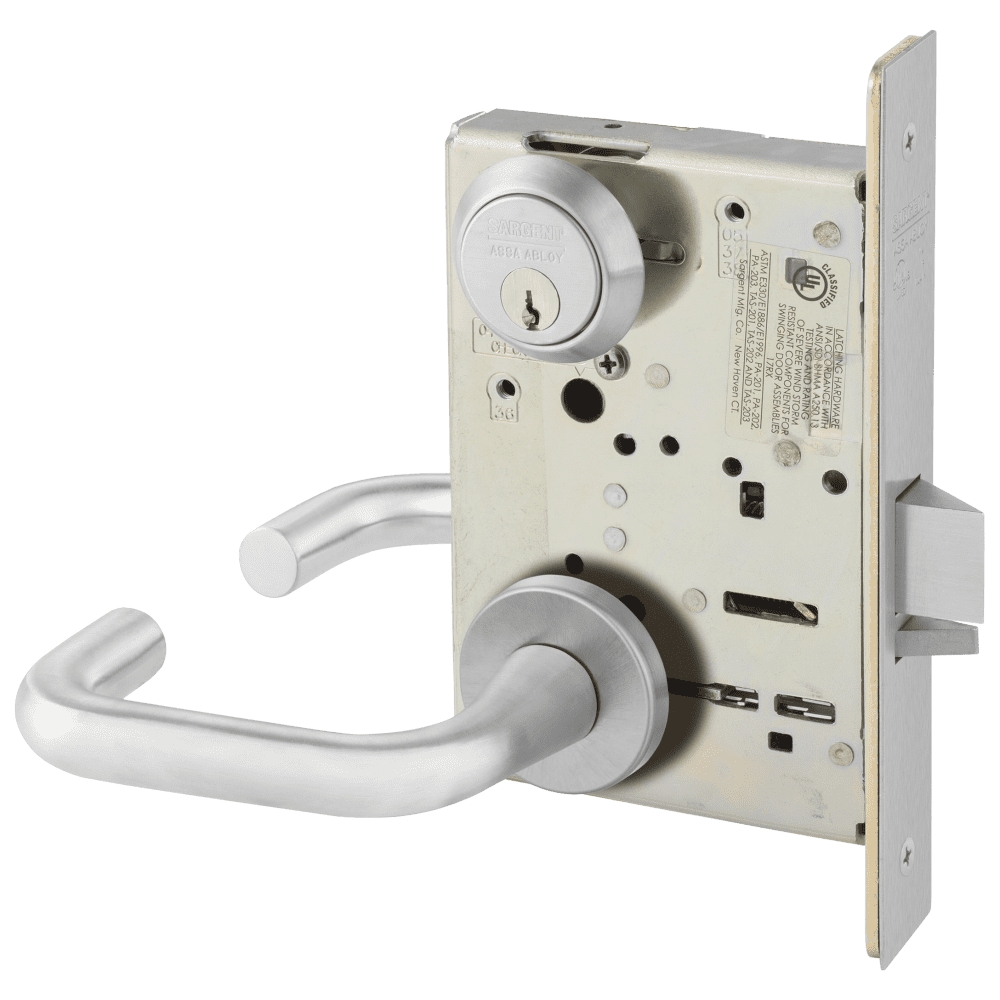

Model: Sargent 8270, LNB, LNL, LNP, LNJ,03, 04, 10, 10B, 26, 26D, 8270-LNB, 8270LNB, 8270-LNB-03, 8270LNB03, 8270-LNB-04, 8270LNB04, 8270-LNB-10, 8270LNB10, 8270-LNB-10B, 8270LNB10B, 8270-LNB-26, 8270LNB26, 8270-LNB-26D, 8270LNB26D, 8270-LNL, 8270LNL, 8270-LNL-03, 8270LNL03, 8270-LNL-04, 8270LNL04, 8270-LNL-10, 8270LNL10, 8270-LNL-10B, 8270LNL10B, 8270-LNL-26, 8270LNL26, 8270-LNL-26D, 8270LNL26D,8270-LNJ, 8270LNJ, 8270-LNJ-03, 8270LNJ03, 8270-LNJ-04, 8270LNJ04, 8270-LNJ-10, 8270LNJ10, 8270-LNJ-10B, 8270LNJ10B, 8270-LNJ-26, 8270LNJ26, 8270-LNJ-26D, 8270LNJ26D, 8270-LNP, 8270LNP, 8270-LNP-03, 8270LNP03, 8270-LNP-04, 8270LNP04, 8270-LNP-10, 8270LNP10, 8270-LNP-10B, 8270LNP10B, 8270-LNP-26, 8270LNP26, 8270-LNP-26D, 8270LNP26D

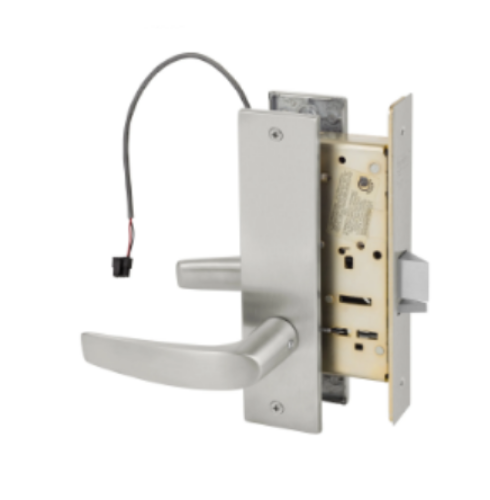

8270-LW1B, 8270LW1B, 8270-LW1B-03, 8270LW1B03, 8270-LW1B-04, 8270LW1B04, 8270-LW1B-10, 8270LW1B10, 8270-LW1B-10B, 8270LW1B10B, 8270-LW1B-26, 8270LW1B26, 8270-LW1B-26D, 8270LW1B26D, 8270-LW1L, 8270LW1L, 8270-LW1L-03, 8270LW1L03, 8270-LW1L-04, 8270LW1L04, 8270-LW1L-10, 8270LW1L10, 8270-LW1L-10B, 8270LW1L10B, 8270-LW1L-26, 8270LW1L26, 8270-LW1L-26D, 8270LW1L26D,8270-LW1J, 8270LW1J, 8270-LW1J-03, 8270LW1J03, 8270-LW1J-04, 8270LW1J04, 8270-LW1J-10, 8270LW1J10, 8270-LW1J-10B, 8270LW1J10B, 8270-LW1J-26, 8270LW1J26, 8270-LW1J-26D, 8270LW1J26D, 8270-LW1P, 8270LW1P, 8270-LW1P-03, 8270LW1P03, 8270-LW1P-04, 8270LW1P04, 8270-LW1P-10, 8270LW1P10, 8270-LW1P-10B, 8270LW1P10B, 8270-LW1P-26, 8270LW1P26, 8270-LW1P-26D, 8270LW1P26D

Certification Compliance: ANSI/BHMA: Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims. Note: Removable Core and SFIC Cylinders do not meet Security Grade 1 requirements.

ADA: Meets A117.1 Accessibility Code. Meets BOMA International 4.13.8 Complies with American Disability Act; Consult local authorities

UL  UL and UL Listed to Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing

Positive Pressure: Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

California: California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face
