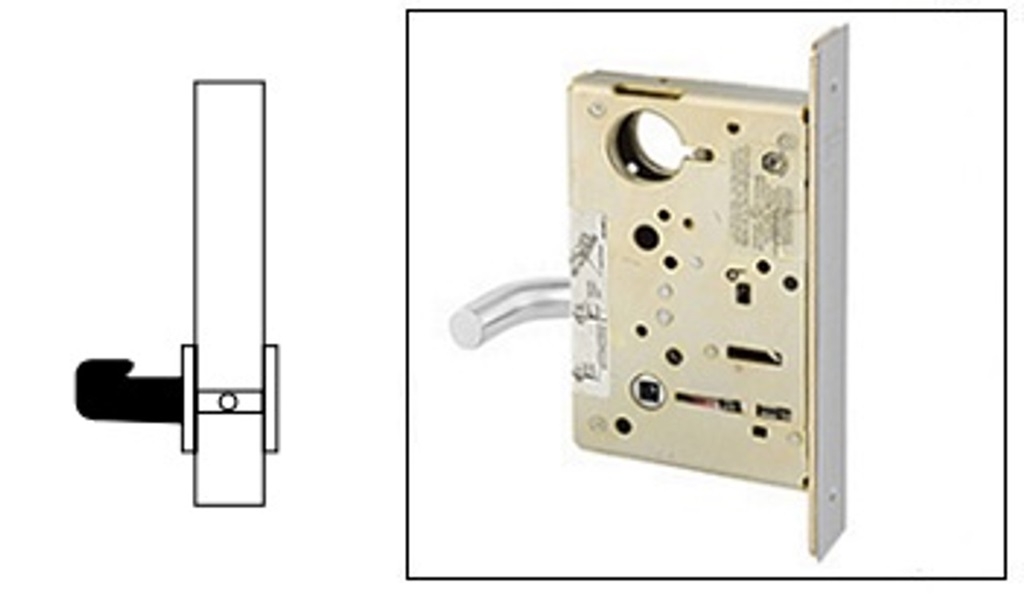

Sargent 8293 Trim Mortise Single Dummy Pull Lock

Sargent 8293 Trim Single Mortise Dummy Pull Lock

Trim on inside of door is always rigid. Trim only used as door pull. For double door applications, installed on the inactive door, use template #4298 to accept latchbolt from active door. Note: Lever is through-bolted.

8200 Line Mortise Lock Specifications:

Door Thickness: 1-3⁄4" (44mm) thick standard.

Backset: 2-3⁄4" (70mm) only

Lock Case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109)

Outside Front Plate: Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)

Springs: High carbon steel

Hubs for Levers: Cold forged steel

Latchbolt: Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch

Auxiliary Deadlatch: Stainless steel, non-handed

Deadbolt: One-piece hardened stainless steel, with 1" (25mm) projection

Handing: Specify hand on order; easily field reversible

Strike: Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed

Finishes: 10B - Oil Rubbed Bronze, 26D - Satin Chrome, 32D - Satin Stainless, BSP - Matte Black

Stile: 4-1/2" (114mm) minimum stile for 8200, 4-3/4" (121mm) minimum stile for electrical function locks

Door Prep: ANSI A115.1 modified per template

Warranty: 10 year limited warranty, 2 year limited warranty on electrified locks

Warranty limited to replacement of Lockbody and/or components.

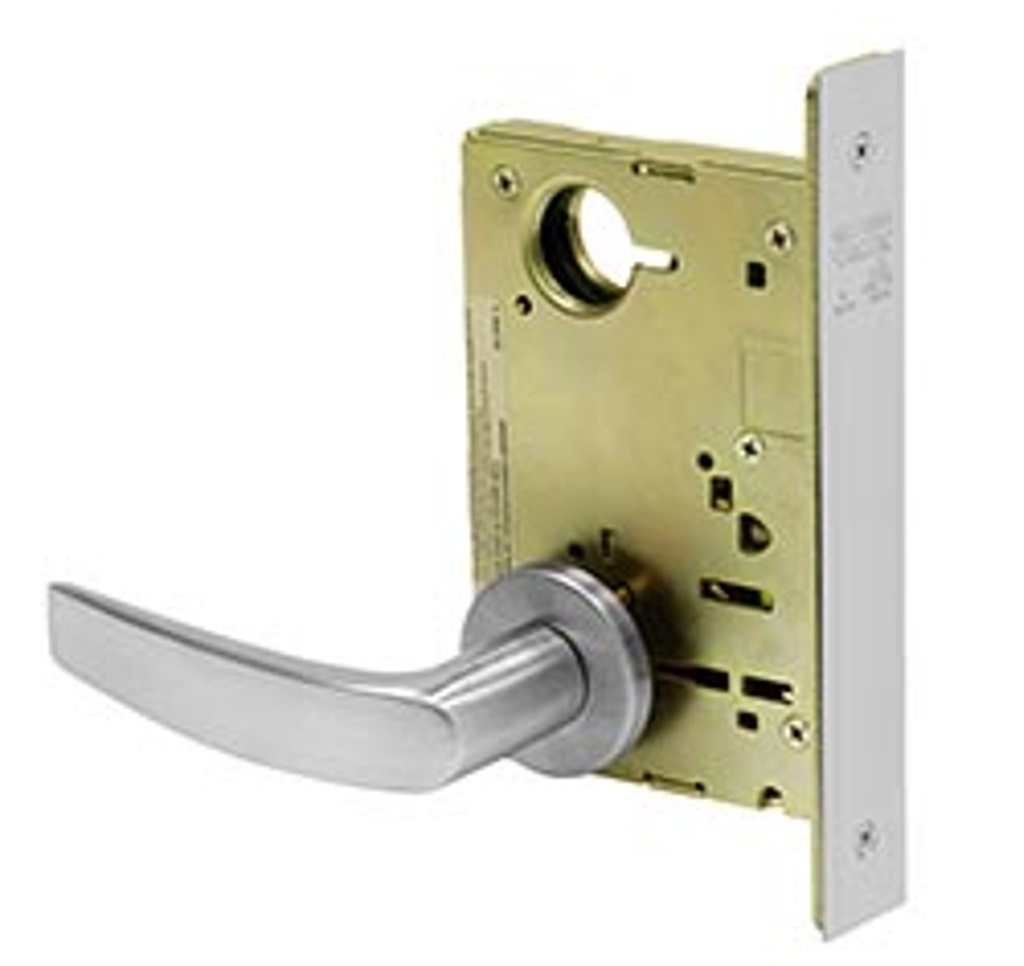

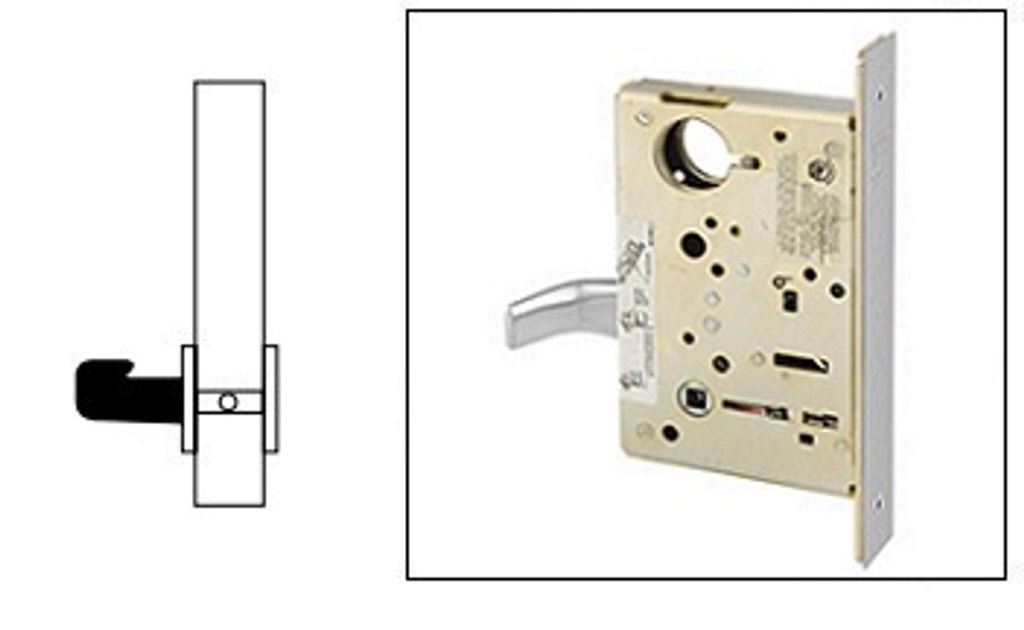

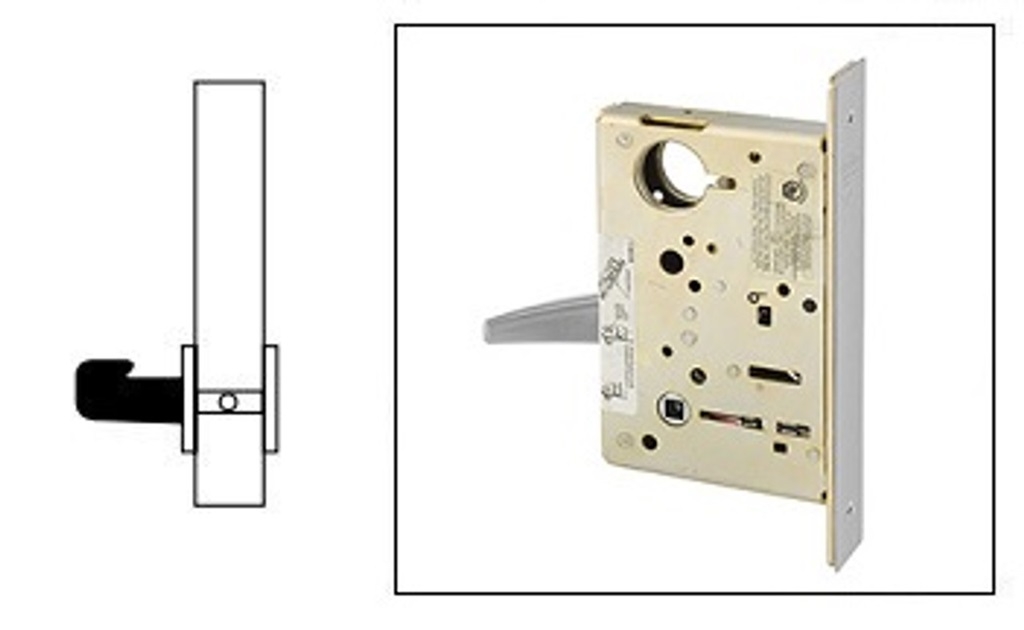

Model: Sargent 8265, LNB, LNL, LNP, LNJ,03, 04, 10, 10B, 26, 26D, 8265-LNB, 8265LNB, 8265-LNB-03, 8265LNB03, 8265-LNB-04, 8265LNB04, 8265-LNB-10, 8265LNB10, 8265-LNB-10B, 8265LNB10B, 8265-LNB-26, 8265LNB26, 8265-LNB-26D, 8265LNB26D, 8265-LNL, 8265LNL, 8265-LNL-03, 8265LNL03, 8265-LNL-04, 8265LNL04, 8265-LNL-10, 8265LNL10, 8265-LNL-10B, 8265LNL10B, 8265-LNL-26, 8265LNL26, 8265-LNL-26D, 8265LNL26D,8265-LNJ, 8265LNJ, 8265-LNJ-03, 8265LNJ03, 8265-LNJ-04, 8265LNJ04, 8265-LNJ-10, 8265LNJ10, 8265-LNJ-10B, 8265LNJ10B, 8265-LNJ-26, 8265LNJ26, 8265-LNJ-26D, 8265LNJ26D, 8265-LNP, 8265LNP, 8265-LNP-03, 8265LNP03, 8265-LNP-04, 8265LNP04, 8265-LNP-10, 8265LNP10, 8265-LNP-10B, 8265LNP10B, 8265-LNP-26, 8265LNP26, 8265-LNP-26D, 8265LNP26D

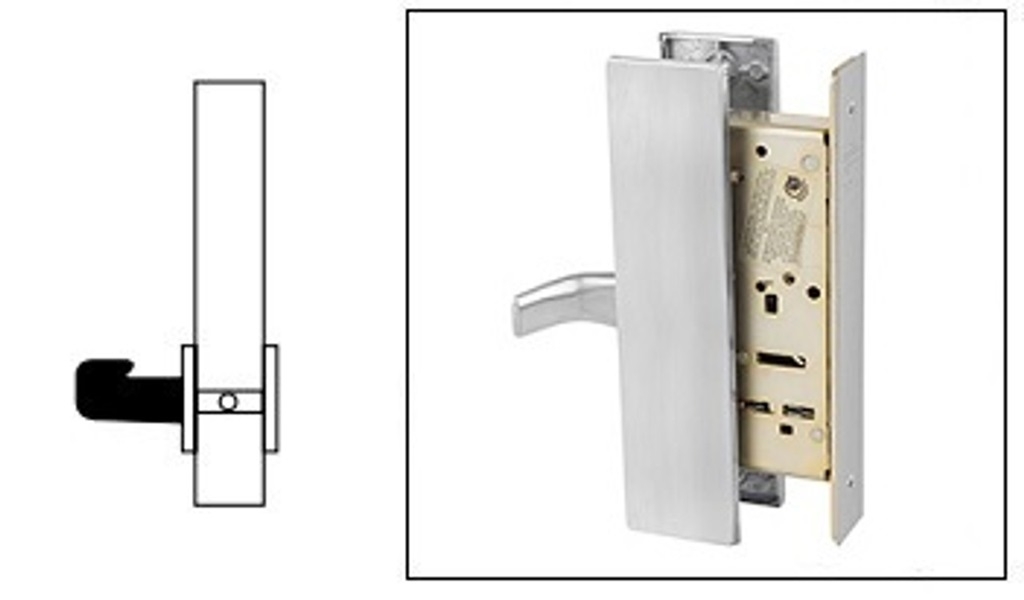

8265-LW1B, 8265LW1B, 8265-LW1B-03, 8265LW1B03, 8265-LW1B-04, 8265LW1B04, 8265-LW1B-10, 8265LW1B10, 8265-LW1B-10B, 8265LW1B10B, 8265-LW1B-26, 8265LW1B26, 8265-LW1B-26D, 8265LW1B26D, 8265-LW1L, 8265LW1L, 8265-LW1L-03, 8265LW1L03, 8265-LW1L-04, 8265LW1L04, 8265-LW1L-10, 8265LW1L10, 8265-LW1L-10B, 8265LW1L10B, 8265-LW1L-26, 8265LW1L26, 8265-LW1L-26D, 8265LW1L26D,8265-LW1J, 8265LW1J, 8265-LW1J-03, 8265LW1J03, 8265-LW1J-04, 8265LW1J04, 8265-LW1J-10, 8265LW1J10, 8265-LW1J-10B, 8265LW1J10B, 8265-LW1J-26, 8265LW1J26, 8265-LW1J-26D, 8265LW1J26D, 8265-LW1P, 8265LW1P, 8265-LW1P-03, 8265LW1P03, 8265-LW1P-04, 8265LW1P04, 8265-LW1P-10, 8265LW1P10, 8265-LW1P-10B, 8265LW1P10B, 8265-LW1P-26, 8265LW1P26, 8265-LW1P-26D, 8265LW1P26D

Certification Compliance: ANSI/BHMA: Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims. Note: Removable Core and SFIC Cylinders do not meet Security Grade 1 requirements.

ADA: Meets A117.1 Accessibility Code. Meets BOMA International 4.13.8 Complies with American Disability Act; Consult local authorities

UL UL and UL Listed to Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing

Positive Pressure: Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

California: California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face
