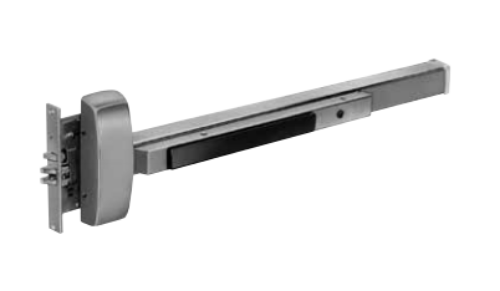

Sargent 8904F Mortise Lock Exit Device - 36" - Night Latch - Less Trim

Sargent 8904F Mortise Lock Exit Device - 36" - Night Latch - Less Trim

Door Width:for 33" to 36" door widths, No cutting required for 36" door

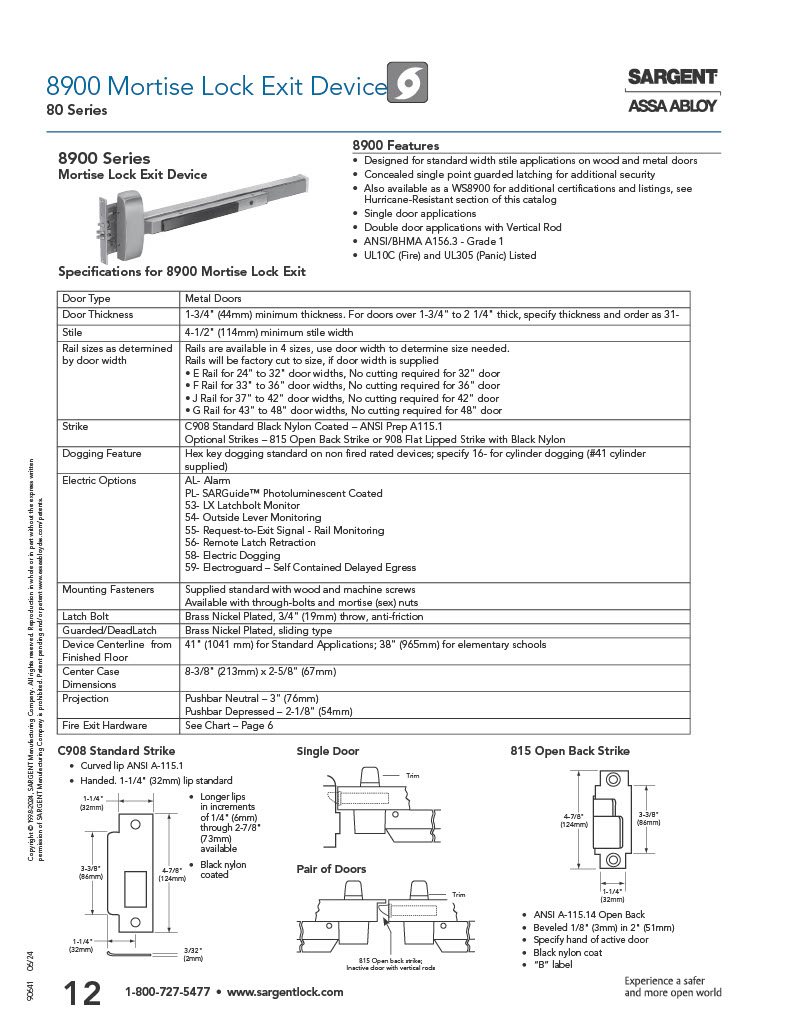

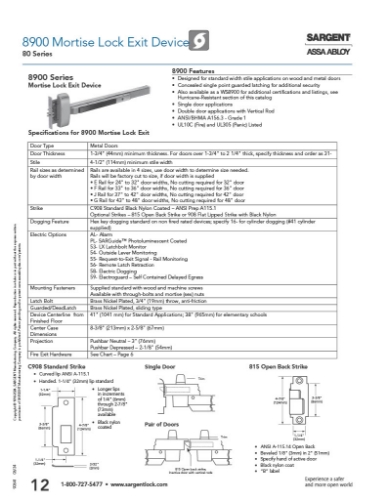

 Designed for standard width stile applications on wood and metal doors Concealed single point guarded latching for additional security Single door applications Double door applications with Vertical Rod Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedDoor TypesWood or metal 1-3/4" (44 mm) minimum thickness.

StrikeC908 Standard Black Nylon Coated – ANSI Prep A115.1

Dogging FeatureHex key dogging standard on non fired rated devices

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Latch BoltBrass Nickel Plated, 3/4" (19mm) throw, anti-friction

Guarded/DeadLatchBrass Nickel Plated, sliding type

Device Centerline from Finished Floor  41" (1041mm) for Standard Applications

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

Projection Pushbar Neutral – 3" (76mm)  Pushbar Depressed – 2-1/8" (54mm)

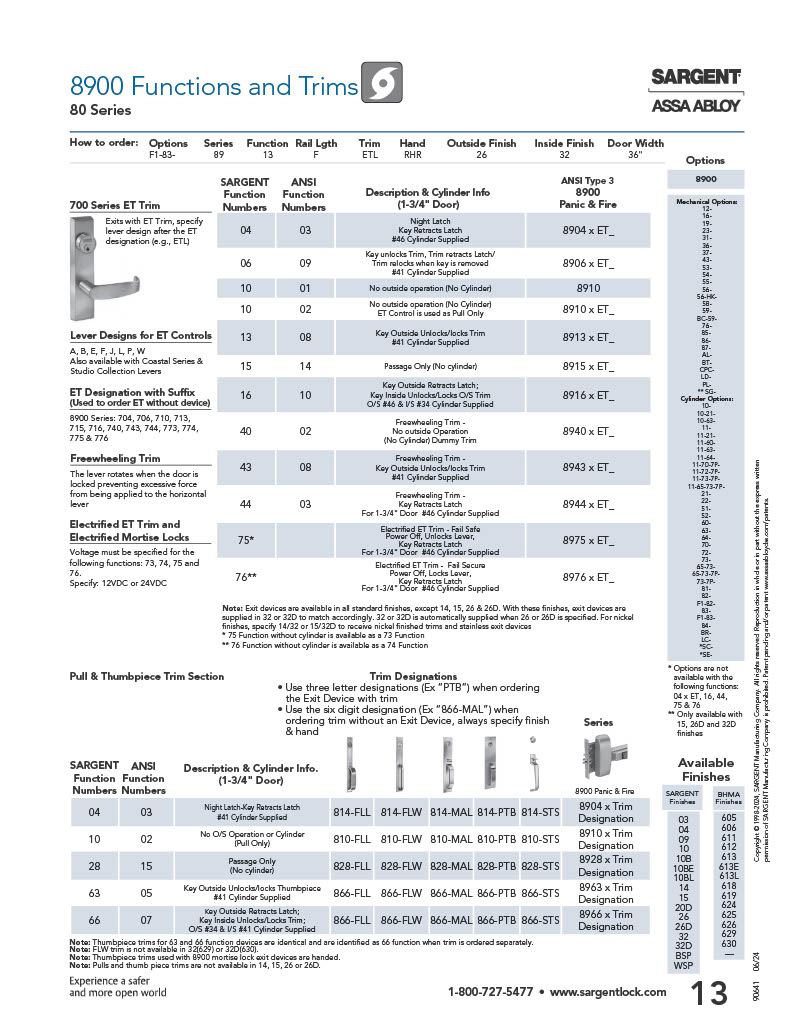

Model:Sargent 8904F, 8904F-32D, 8904F-3, 8904F-4, 8904F-10, 8904F-10B, 8904F-32
