Product Details

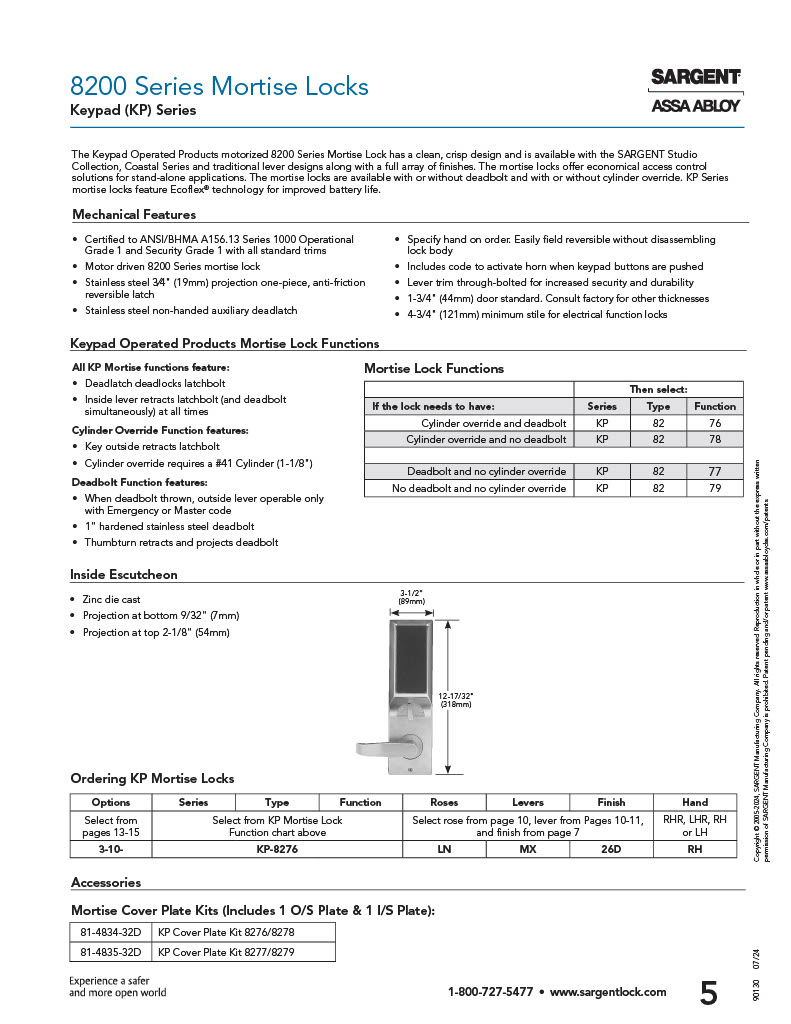

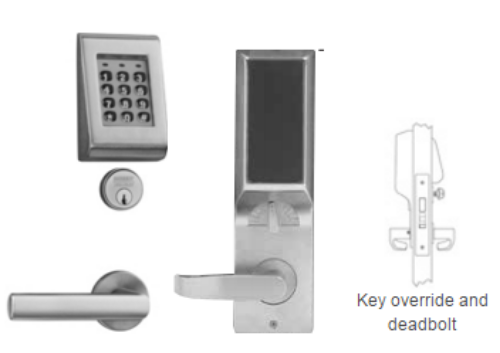

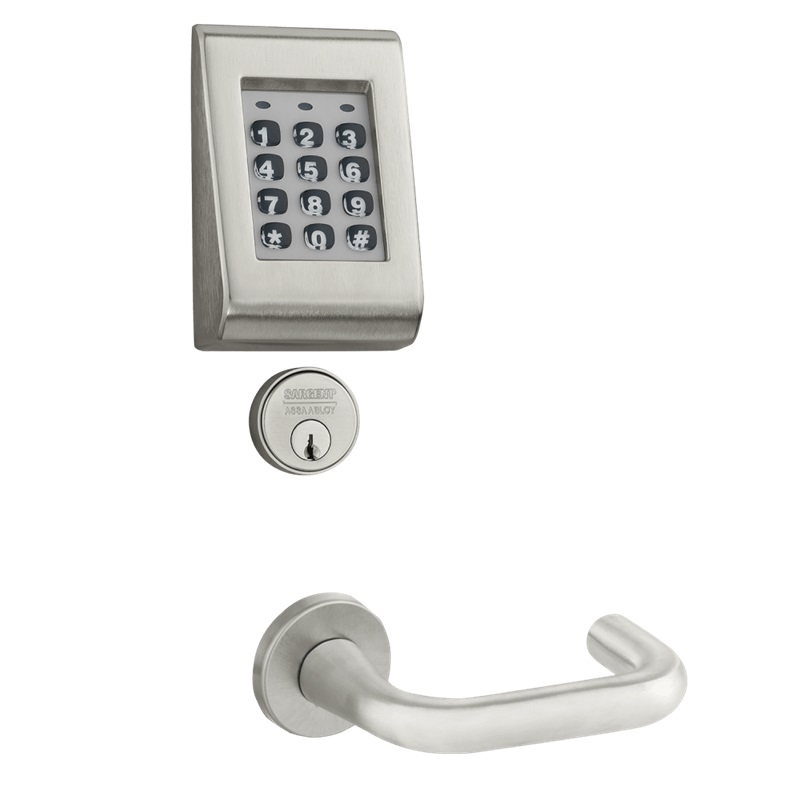

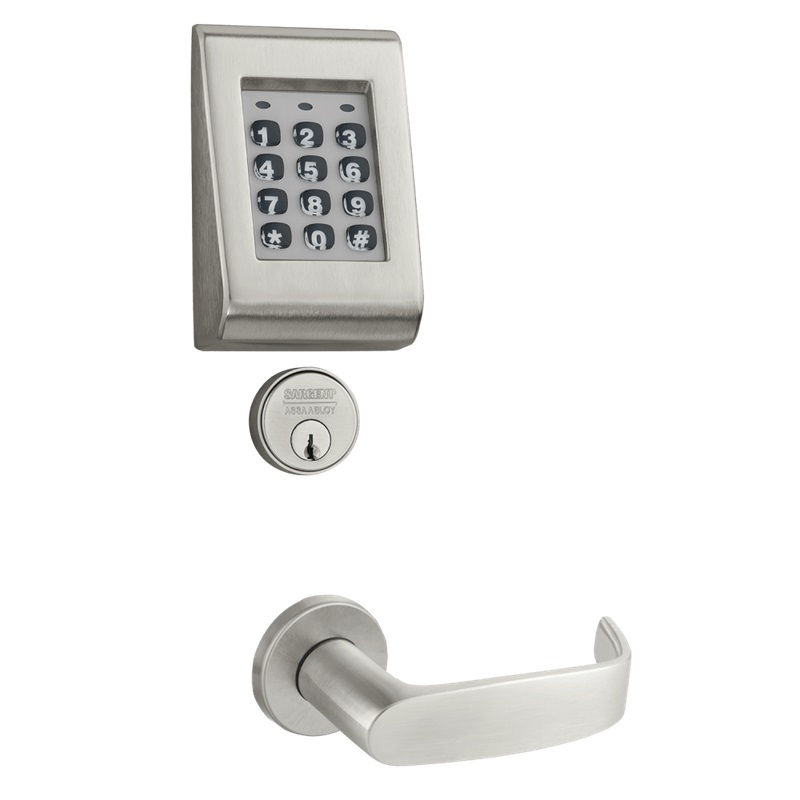

Sargent KP8276 Keypad Stand Alone Mortise Lock With Cylinder override and deadbolt
Keypad Mortise Lock Functions:
Deadlatch deadlocks latchbolt Inside lever retracts latchbolt (and deadbolt simultaneously) at all times
Cylinder Override Function features:

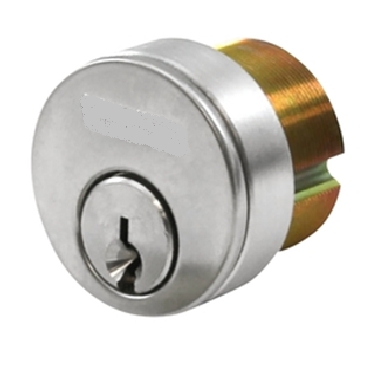

Key outside retracts latchbolt Cylinder override requires a #41 Cylinder (1-1/8")
Deadbolt Function features:
When deadbolt thrown, outside lever operable only with Emergency or Master code 1" hardened stainless steel deadbolt Thumbturn retracts and projects deadbolt
Non-Handed
Easily programmable at keypad
Operating temperature for keypad: 4 Degree F – 140 Degree F
Operates with 4 “C" alkaline batteries (included)
Low battery indication - four chirps after code entry
External battery input connector included to power unit in case of battery failure
100 user codes - over 1,100,000 possible user combinations
One master code - assigns emergency, supervisory, and user codes
‘One Time’ user codes allows visitors ‘one time’ entry
Unit can be put in ‘passage only‘ mode at keypad
One supervisory code - allows temporary lockout of selected users, changes unlock time duration, requests infrared interrogation output, and may add user codes
Operates utilizing any one to six digits per code - digits may be repeated or start with ‘0’
Entry of three wrong user codes in succession disables all codes for ten seconds
Piezo horn sounds with each keystroke or can be disabled through master or supervisory codes
UL listed for fire doors
UL listed to Canadian safety standards

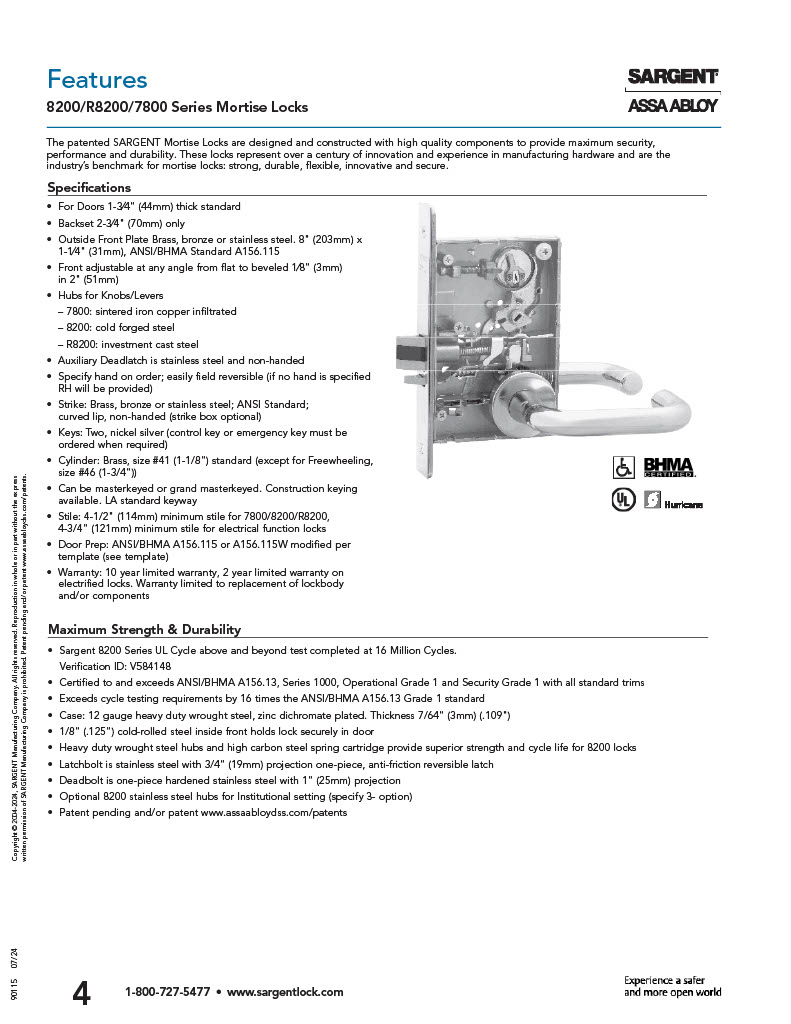

Mechanical Features
Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims Motor driven 8200 Series mortise lock Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch Stainless steel non-handed auxiliary deadlatch Specify hand on order. Easily field reversible without disassembling lock body Includes code to activate horn when keypad buttons are pushed Lever trim through-bolted for increased security and durability 1-3/4" (44mm) door standard. Consult factory for other thicknesses 4-3/4" (121mm) minimum stile for electrical function locks
