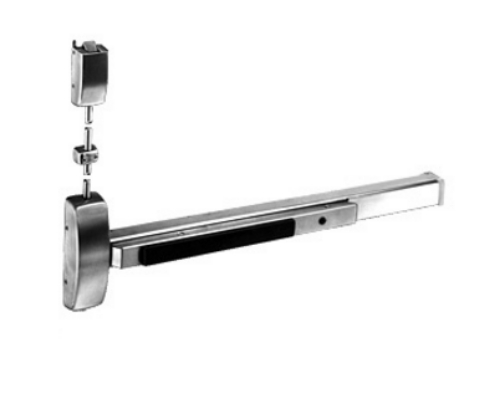

Sargent NB-8710J-32D Top Latch Surface Vertical Rod Exit Device - Exit Only - 42" - Satin Stainless Steel

Product Details

Sargent NB-8710J-32D Top Latch Surface Vertical Rod Exit Device - Exit Only - 42" -Satin Stainless Steel

Door Width: for 37" to42" door widths, No cutting required for 42" door

 Single point top latching Top latchbolt projection adjustable through center case Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedTripping potential removed - no bottom strike Rods are 1/2" (13mm) brass, bronze or stainless steelDoor TypesWood or metal 1 3/4" (44mm) minimum thickness

Strike646 Top Strike (Panic and Fire Rated)

Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Top BoltStainless steel

Device Centerline from Finished Floor 41" (1041 mm) for Standard Applications

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Model:Sargent NB-8710-J,  NB8710J, NB8710J-32D, NB-8710-J-32D,



Sargent NB-8710J-32D Top Latch Surface Vertical Rod Exit Device - Exit Only - 42" - Satin Stainless Steel

SKU: NB-8710J-32D

In Stock

Handing *

$2,089.04

$3,364.00

You saved $1,274.96

About this item

SARGENT manufactures a full line of exit devices providing the best combination of simplicity, strength, durability, aesthetics and innovation. Surface Vertical Rod Less Bottom Rod Exit Device is for both rated and non-rated openings.

Sargent NB-8710J-32D Top Latch Surface Vertical Rod Exit Device - Exit Only - 42" -Satin Stainless Steel

Door Width: for 37" to42" door widths, No cutting required for 42" door

 Single point top latching Top latchbolt projection adjustable through center case Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedTripping potential removed - no bottom strike Rods are 1/2" (13mm) brass, bronze or stainless steelDoor TypesWood or metal 1 3/4" (44mm) minimum thickness

Strike646 Top Strike (Panic and Fire Rated)

Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts

Top BoltStainless steel

Device Centerline from Finished Floor 41" (1041 mm) for Standard Applications

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Model:Sargent NB-8710-J,  NB8710J, NB8710J-32D, NB-8710-J-32D,



nb8710
Sargent NB-8710J-32D Top Latch Surface Vertical Rod Exit Device - Exit Only - 42" - Satin Stainless Steel

Product code: NB-8710J-32D

In Stock

$3,364.00

$2,089.04

nb8710
Sargent NB-8710J-32D Top Latch Surface Vertical Rod Exit Device - Exit Only - 42" - Satin Stainless Steel

Product code: NB-8710J-32D

In Stock

$3,364.00

$2,089.04
