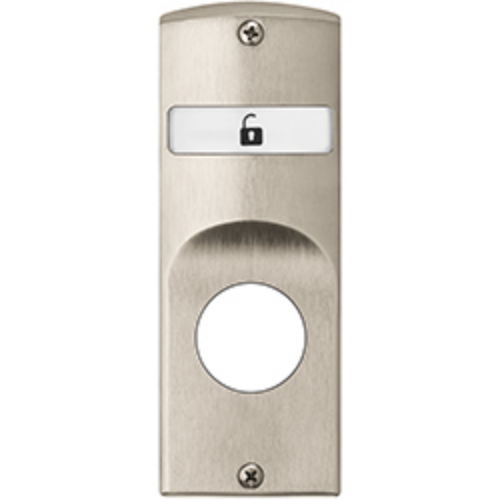

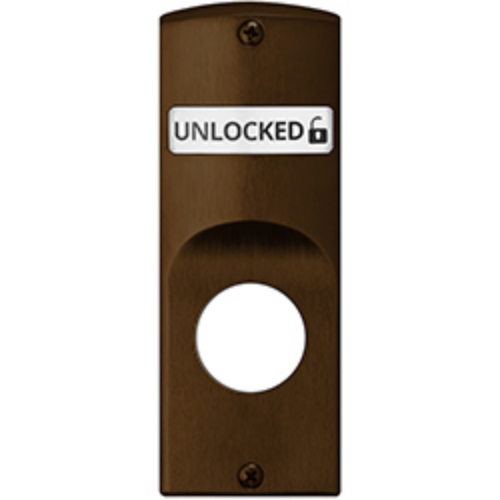

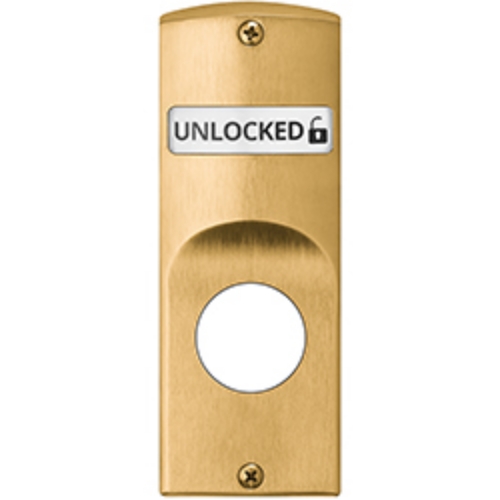

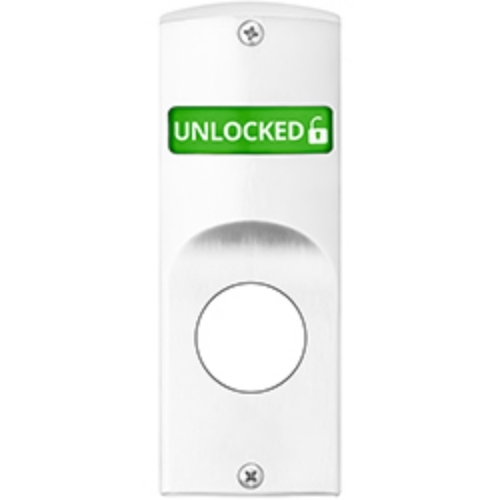

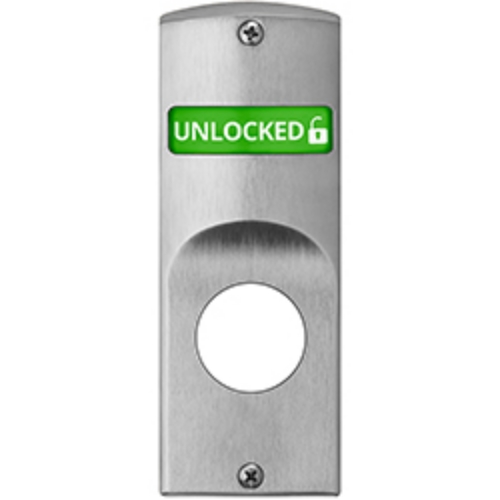

Sargent SA191 Indicator Kit for Mortise 7800/8200 Sectional Trim with Cylinder Prep

Sargent SA191 Indicator Kit for Mortise 7800/8200 Sectional Trim with Cylinder Prep Used with Functions36, 56, 57, 58, 67Available Option CodesOutside Trim: V10, V20, V30, V40, V50, V60Inside Trim: V01, V03, V04, V06Indicator LocationInside and/or Outside Inside and/or Outside LocksSurface mountedTorx security screws providedCompatible with select sectional trim rose designs: O, LN, E, TR, CR, CO, TO, E2, E3Compatible with all thumbturn designsNot compatible with BHW, BHL, or BHD trimsRetrofit/Upgrade Kits: Retrofit/upgrade kits are available for existing applications only. Each kit includes single side indicator plate with mechanism, screw pack, plastic template and instructions. To order retrofit/upgrade kits only, specify by model number below based upon function and mounting location. Door thickness and indicator option code must also be specified with kit. Kits are handed and easily field reversible. All units are shipped from the factory with a default handing. Handing must be field verified and adjusted as needed per product installation instructions. Retrofit/upgrade kits with directional engraving must include lock handing and lock function details. Note: Indicators for both sides of door require two kits.
