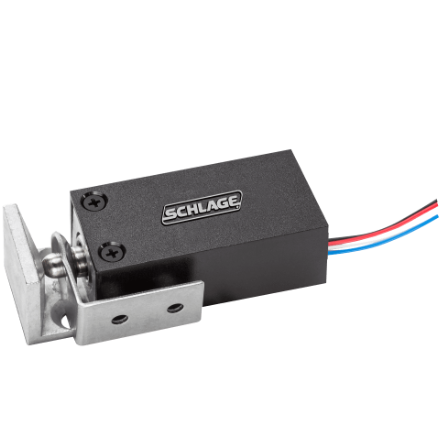

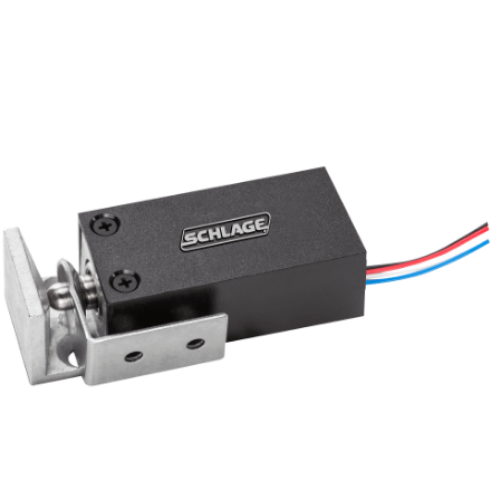

Schlage 442S Electronic cabinet lock

Schlage 442S Electronic cabinet lock

Overview:

The 442S is a compact and easy to install hardwired cabinet lock. It is fail secure and driven by a dual voltage solenoid. The voltage is field selectable 12 or 24 VDC. This makes ordering easy and provides greater flexibility in the field.

The 442S can be mounted horizontally or vertically to control access to a wide range of swinging or sliding cabinets and drawers. The 442S can be controlled by any kind of access control system that provides a dry contact output. Its small size and versatile mounting position allows you to bring increased monitoring and control to hard to reach applications such as pharmaceutical cabinets, cash drawers and display cases.

Features and benefits:

 - Fail-secure power failure mode. -  Dual voltage 12/24 VDC, field selectable. - Open architecture design, compatible with wide range of Physical Access Control Software (PACS) providers. -  Flexible mounting options. -  Ideal for pharmaceutical cabinets, cash drawers and display cases.

Specifications:

Input voltage: 12/24VDC dual voltage, field selectable. Current draw: .5 Amp @ 12VDC .25 Amp @ 24VDC. Dimensions: (L x W x D) 3" x 1" x 1".

Standard features:

-  12/24 VDC (field selectable). -  Fail secure. -  Black Lexan finish.
