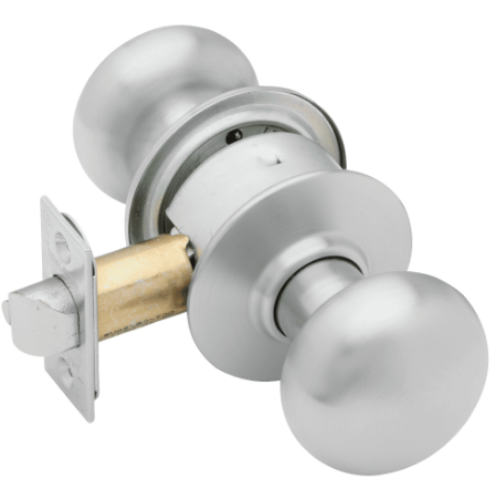

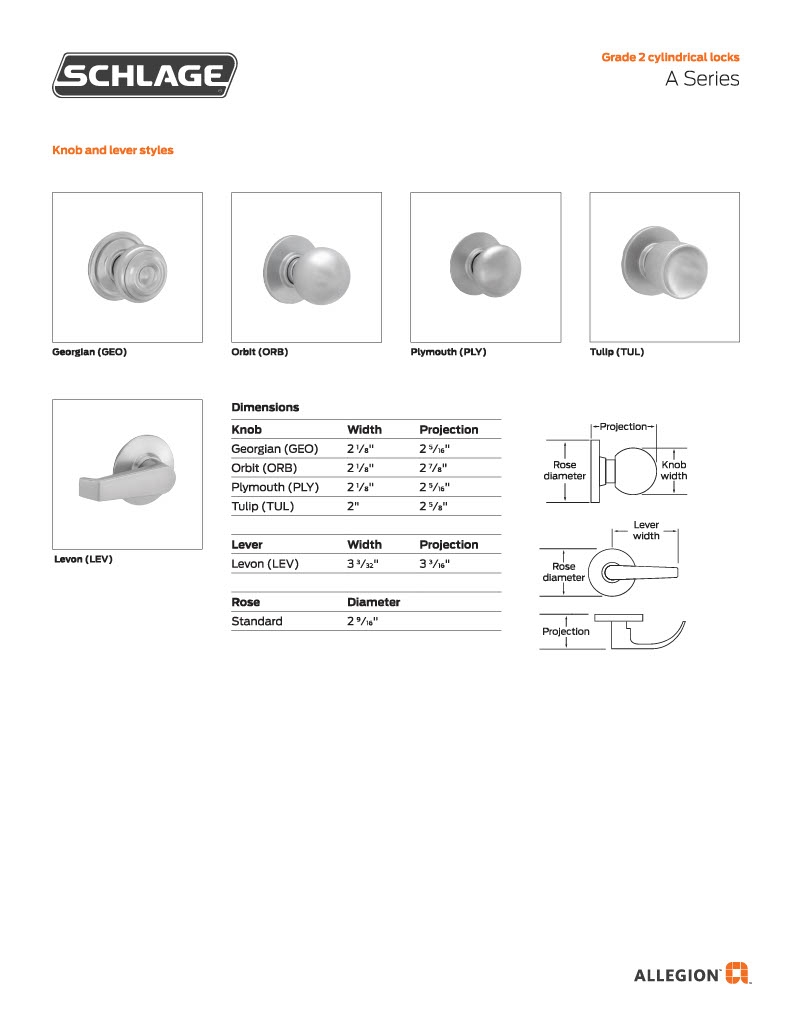

Schlage A10S Plymouth (PLY) Grade 2 Passage Cylindrical Lock

Schlage A10S Plymouth (PLY) Passage Knob Set-ANSI F75

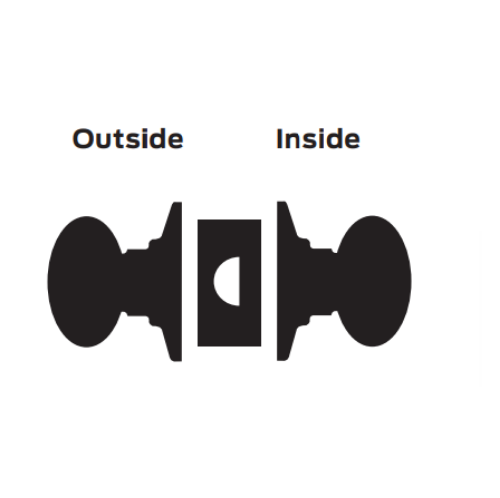

Both knobs always unlocked.

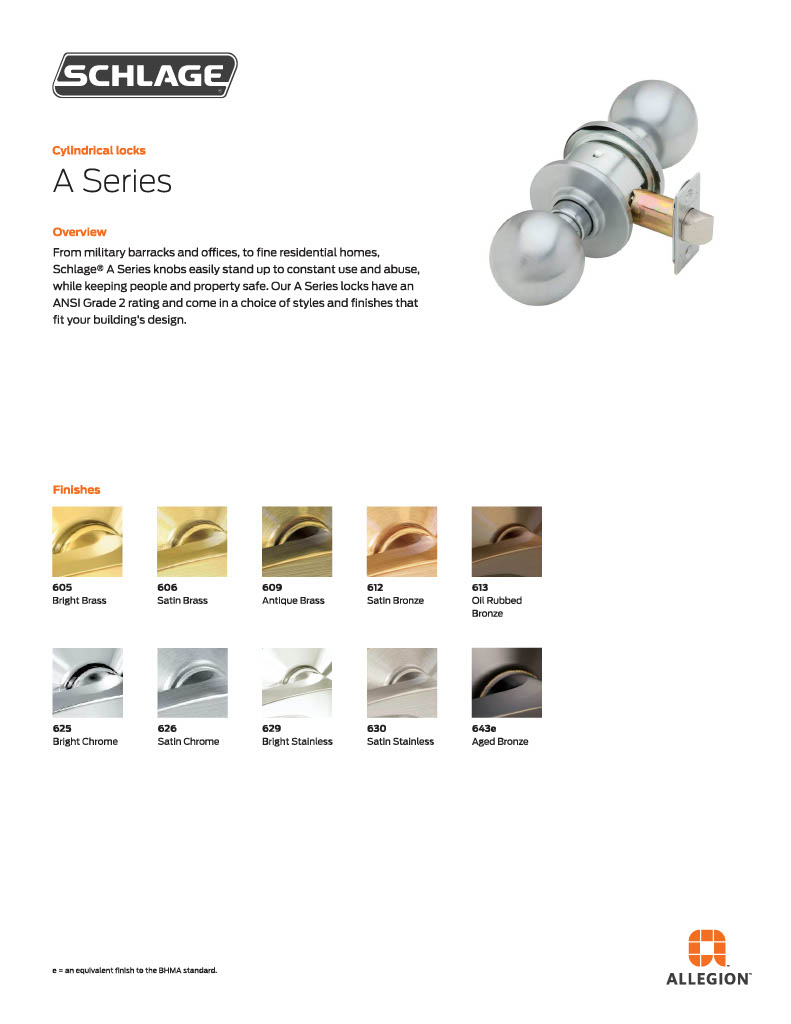

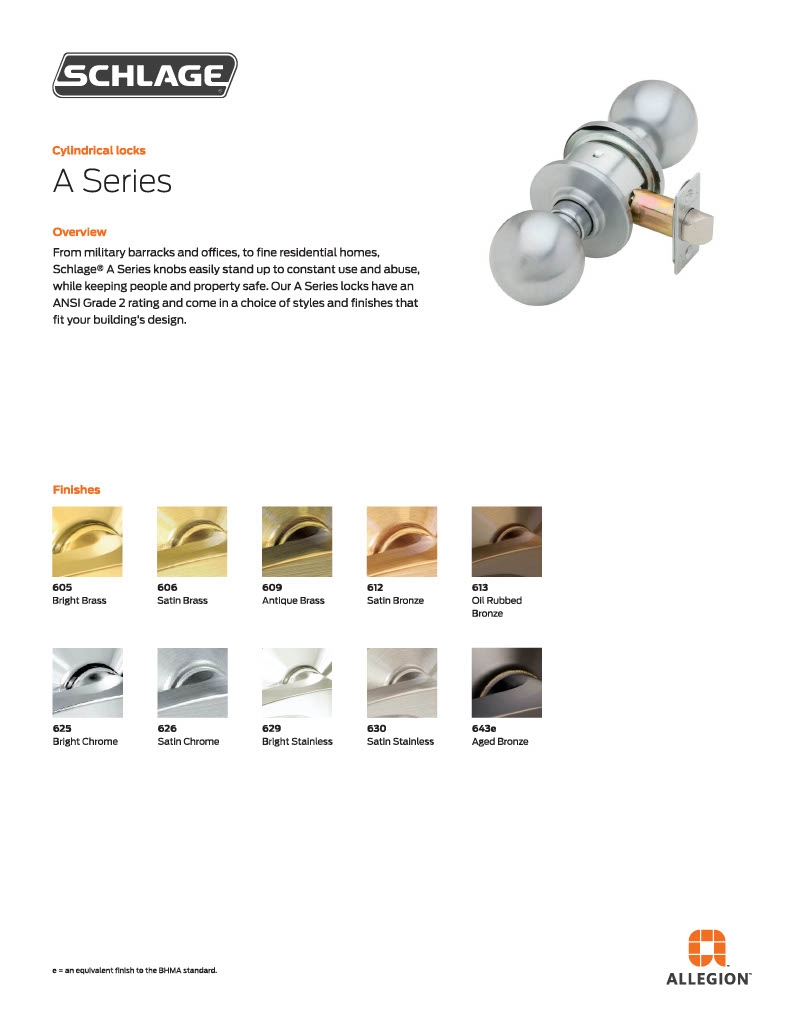

Finishes:626 - Satin Chrome, 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 625 - Bright Chrome, 609 - Antique Brass , 630 - Satin Stainless Steel

Applications:Heavy duty residential, light and medium duty commercial.

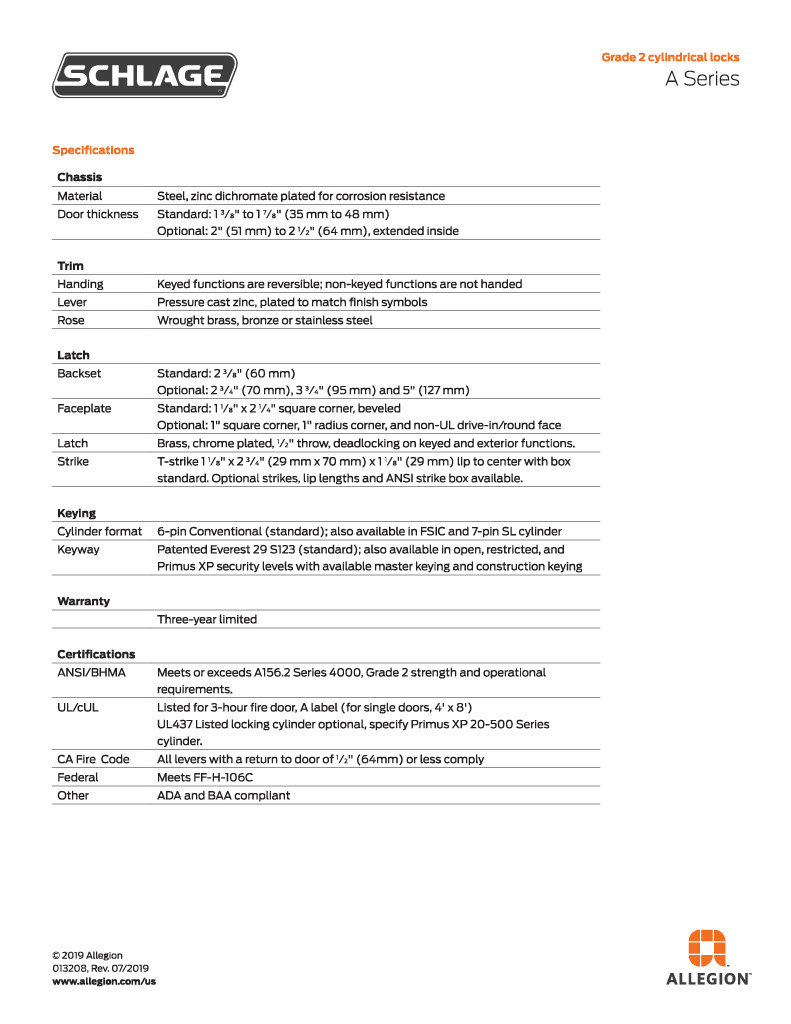

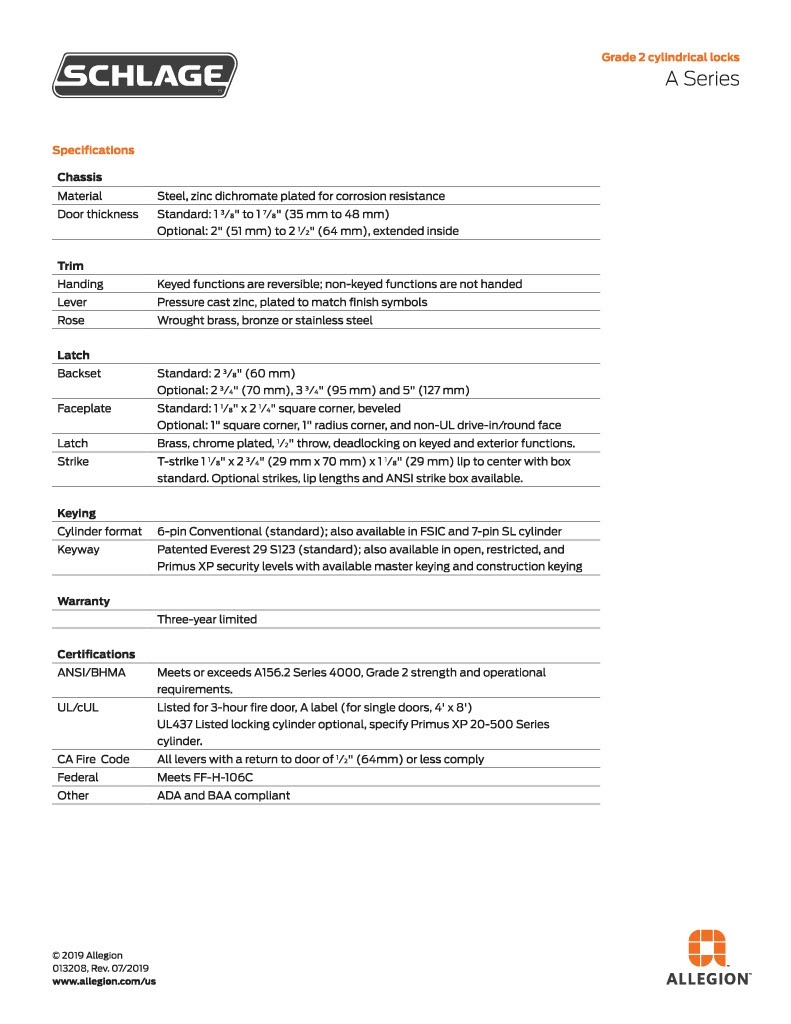

Certifications:ANSI 156.2, 1996, Series 4000, Grade 2. UL Listed for all functions up to 3 hours.

Door Range:1-3/8" -1-7/8" (35 mm-48 mm) standard.

Backset:2-3/8" (60 mm) or 2-3/4" (70 mm) standard.

Latches:1" x 2-1/4" (25 mm x 57 mm), 1/2" (13 mm) throw standard.

Strikes:Square corner. 1-1/8" x 2-3/4" with 1-1/8" lip T-strike, furnished with dust box, standard.

Warranty:Commercial: three-year limited.Residential: Full mechanical lifetime.

Model:Schlage A10, A10S, A10SPLY,  A10SPLY605, A10SPLY606, A10SPLY612, A10SPLY613, A10SPLY625, A10SPLY626, , A10SPLY609, A10SPLY630

Exposed Trim:Wrought brass, bronze, or stainless steel. Lever is zinc based, plated to match BHMA symbols.

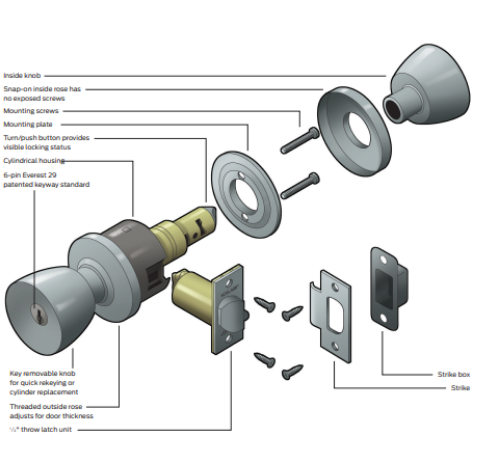

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Meets or exceeds 400,000 cycle ANSI Grade 2 requirements
