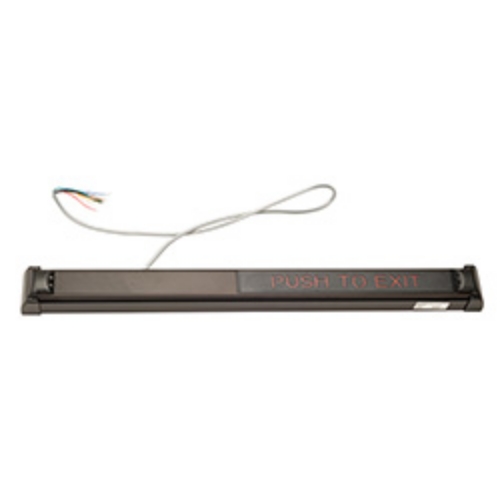

Schlage Electronics 672 36 313 RD TouchBar Request-to-Exit Device, 36", Red Lettering, Dark Bronze

Schlage Electronics 313 36 628 RD TouchBar Request-to-Exit Device, 36", Red Lettering, Dark Bronze Anodized Aluminum

The 672 TouchBar is a request-to-exit device which releases electronic locking devices, most commonly electromagnetic locks when the bar is depressed. The PUSH TO EXIT signage provides an obvious exit indication for building occupants and the simplified design allows for reversing the signage in the field. The new pivoting bar design allows 1/4" activation and the 2 1/4" low profile provides ample clearance through the door - notably less than others in the industry

1/4" Movement activates immediate releaseStandard Double Pole, Double Throw switch utilizedFeatures and benefits:

1⁄4" movement of bar activates immediate releaseLarge PUSH TO EXIT lettering providesobvious exit indication with glow-in-the-dark optionLow profile provides ample clearance through the doorReleases electromagnetic or electrified locks when bar is depressedLeft- or right-hand reverse (field reversible)Field sized or orderable for 36", 42" or 48" doorsFor aluminum, hollow metal and wood doorsPivoting bar design allows 1/4" activationHeavy-duty aluminum extrusion with powder coat cast metal end caps for maximum durabilityQuick installation brackets/universal mounting system672 TouchBar electrical specifications:

Input voltage:  12 or 24 VDC maximum current draw .25 amps

Switch:  DPDT contacts rated 4 amps @ 30 VDC

Wiring:  6 conductor cable - 20 AWG (standard)

Door size:36"
