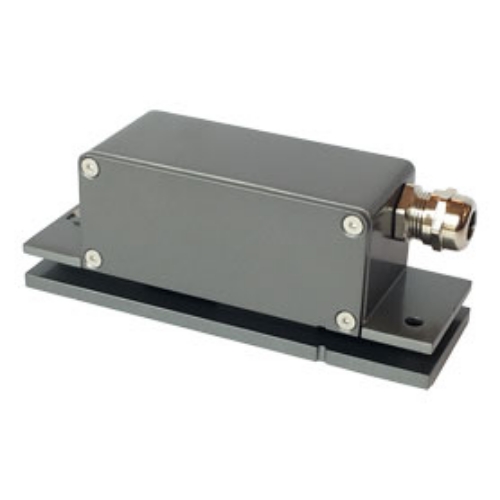

Schlage Electronics FSS1-F High Security DPS Flush Mount Mortised with Conduit

Schlage Electronics FSS1-F High Security DPS Flush Mount Mortised with Conduit, 10 - 30VDC/typically 50mA, Door Gap 1 - 7mm, Door Movement 15mm, Space for Type 1 and 2 Modules

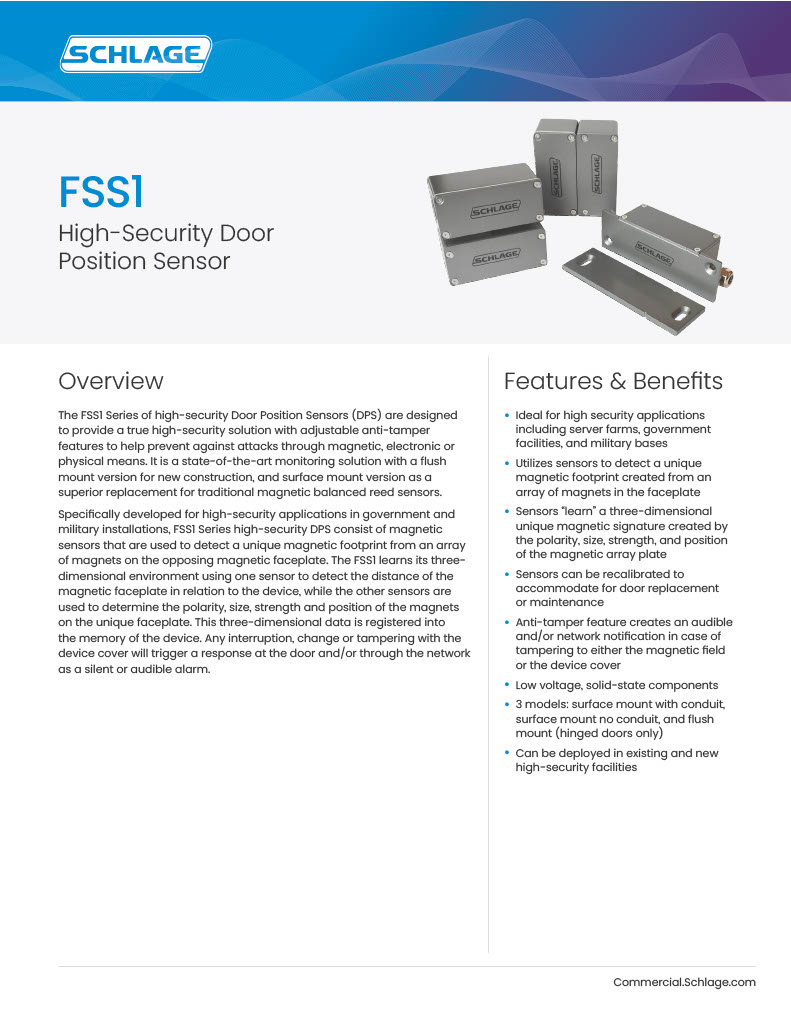

Overview The FSS1 Series of high-security Door Position Sensors (DPS) are designed to provide a true high-security solution impervious to defeat through magnetic, electronic or physical means. It is a state-of-the-art monitoring solution with a flush mount version for new construction, and surface mount version as a superior replacement for traditional magnetic balanced reed sensors.

Specifically developed for high-security applications in government and military installations, FSS1 Series high-security DPS consist of seven magnetic sensors that are used to detect a unique magnetic footprint from an array of magnets on the opposing magnetic faceplate. The FSS1 learns its three-dimensional environment using one sensor to detect the distance of the magnetic faceplate in relation to the device, while the other six sensors are used to determine the polarity, size, strength and position of the magnets on the unique faceplate. This three-dimensional data is registered into the device. Any interruption, change or tampering with the device cover will trigger a response at the door and/or through the network as a silent or audible alarm.

Features and benefits

 - Ideal for high security applications including server farms, government facilities, and military bases.

• Utilizes sensors to detect a unique magnetic footprint created from an array of magnets in the faceplate.

• Sensors learn a three-dimensional unique magnetic signature created by the polarity, size, strength, and position of the magnetic array plate.

• Sensors can be recalibrated to accommodate for door replacement or maintenance.

• Adjustable anti-tamper feature creates an audible and/or network notification in case of tampering to either the magnetic field or the device cover.

• Proven hardware impervious to defeat through magnetic, electronic or physical means.

• Low voltage, solid-state components.

• 3 models: surface mount with conduit, surface mount no conduit, and flush mount.

• Can be deployed in existing and new high-security facilities.

FSS1 specifications

Part number: 194555101647.

Part description:FSS1 high-security DPS surface mount w/conduit

Voltage / current:10-30VDC/<45mA 10-30VDC/<45mA 10-30VDC/<45mA Alarm and tamper contacts :2 by N.C. (normal closed) common N.O. (normal open), 0.2A @ 30V

Door gap: .04-.26in vertical door gap, and up to .59in door movement for alarm to trigger, 1-7mm vertical door gap, and up to 15mm door movement for alarm to trigger

End of line compatibility:Space for type 1 & 2 end-of-line encryption modules

Dimensions:L=2.96in H=1.34in D=1.38in L=75mm H=34mm D=35mm L=2.96in H=1.34in D=1.38in L=75mm H=34mm D=35mm L=4.33in D=1.26in W=1.38in L=110mm D=32mm W=35mm

Approvals:UL 634 High Security Level 2 - listed equipment BP9752

Hall effect sensors:7

Patents: Patents granted and pending worldwide based on PCT/AU2014/000210

Manufacture Designed and manufactured in Australia
