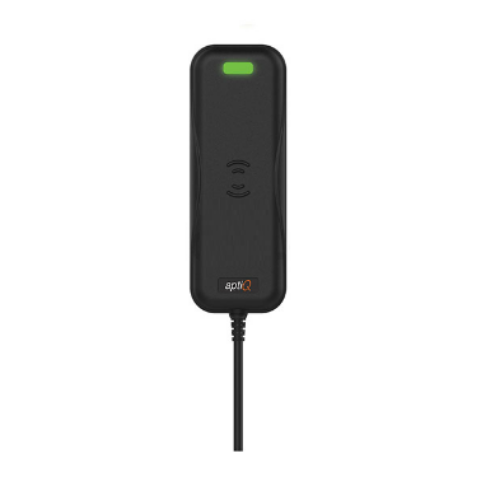

Schlage Electronics MT20W Enrollment Reader, USB / WIFI Enrollment, Read-Write Reader - Smart Credentials Only

Schlage Electronics MT20W Enrollment Reader, USB / WIFI Enrollment, Read-Write Reader - Smart Credentials Only**

OverviewThe Schlage MT20W multi-technology enrollment reader is designed to simplify the enrollment of smart and multi-technology credentials in "No-Tour" multifamily applications. Site administrators use the MT20W to program encrypted credentials, such as a keyfob, over Wi-Fi or USB connection to PC. When presented at a lock by the resident or user, the pre-programmed credentials automatically update the lock database. This eliminates the need for the property staff to have to visit each lock to deliver updates.

The MT20W is compatible with Schlage smart credentials (MIFARE Classic, MIFARE Plus and MIFARE DESFire EV1 and EV2) and supports no-tour access control when used with supported locks.

Features and benefits:

• Use your computer and the ENGAGE web app to easily enroll credentials .
• Recognizes Schlage smart and multi-technology credentials (MIFARE Classic, MIFARE Plus and MIFARE DESFire EV1 and EV2).
• Simplifies credential enrollment.
• Communicates to server either through a Wi-Fi connection or your computers USB port.
• Limited Lifetime Warranty.

Model:MT20W.

Reader type:USB Enrollment Reader.

Connection requirements:WiFi requires 2.4 GHz router that supports data connection speeds of 24 Mbps. USB data share via a desktop app is available as well.

Bit formats recognized:26A, 32X, 34N, 34S, 35C, 37X, 37H, 40X.

Technologies supported: Schlage MIFARE Classic Secure Sector Schlage MIFARE Classic Secure Sector, Schlage MIFARE Plus Secure SectorSchlage MIFARE DESFire EV1 and EV2 with PACSA Secure Sector.

Physical dimensions: (l x w x h)5.56" x 2.00" x .695".

Operating temperatures:0 to 40 C 32 to 104 F.

Weight:4.1 oz.

Power supply:Connect to powered USB port or via USB power supply.

Interface:USB and WiFi.

Current requirement:160 mA.
