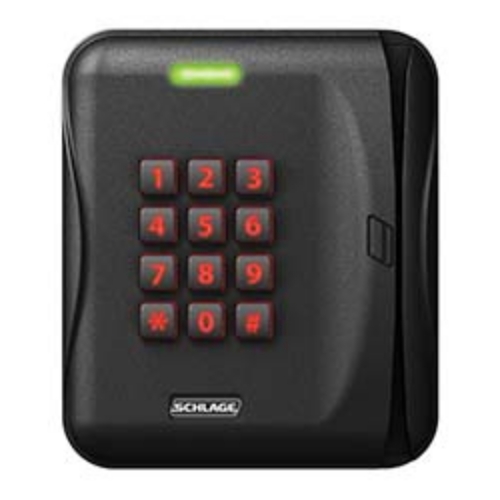

Schlage Electronics MTMSK15 Multi-Technology Reader with Magnetic Stripe and Keypad

Schlage Electronics MTMSK15 Networked Multi-Technology Mag Stripe and Keypad Reader, Wall Mount, Pin Credentials, Magnetic Stripe (1,2,3 Track), 125 kHz Proximity Card, 13.56 MHz Smart Card, FIPS 201-2 Compliant

Schlage multi-technology magnetic stripe and keypad reader is designed to simplify access control solutions. It recognizes magnetic stripe, proximity, Schlage smart card and NFC-enabled smart devices, ensuring a seamless transition to high-security smart technology in the future. They use an open architecture platform designed to work with industry standards and common access control system interfaces. The readers all fit a variety of placement needs, and include a modern design to complement any facility and its hardware.

The multi-technology readers accept Schlage MIFARE Classic and MIFARE DESFire EV1, EV2 and EV3 smart credentials as well as most proximity and smart cards from other manufacturers.

Features & Benefits:

Technology:

Compatible with NFC-open smart phones using Schlage mobile credentialsReads 125 kHz proximity and 13.56 MHz smart credentials - MIFARE Classic and MIFARE DESFire EV1, EV2 and EV3 as well as card serial numbers (CSN) of other manufacturer's smart credentialsWiegand and RS-485 output available for simple interface with most access control panelsMagnetic stripe track 2 default, tracks 1 and 3 configurableSimplicity:

****Commission via ENGAGE mobile app for reader updates and easy configuration Compatible with Schlage and other industry manufacturers credentialsLimited Lifetime WarrantyInstallation:

Accommodates interior, exterior, metal and non-metal installation environmentsQuick-connect cable allows for easy installationEasy-to-install mounting bracket

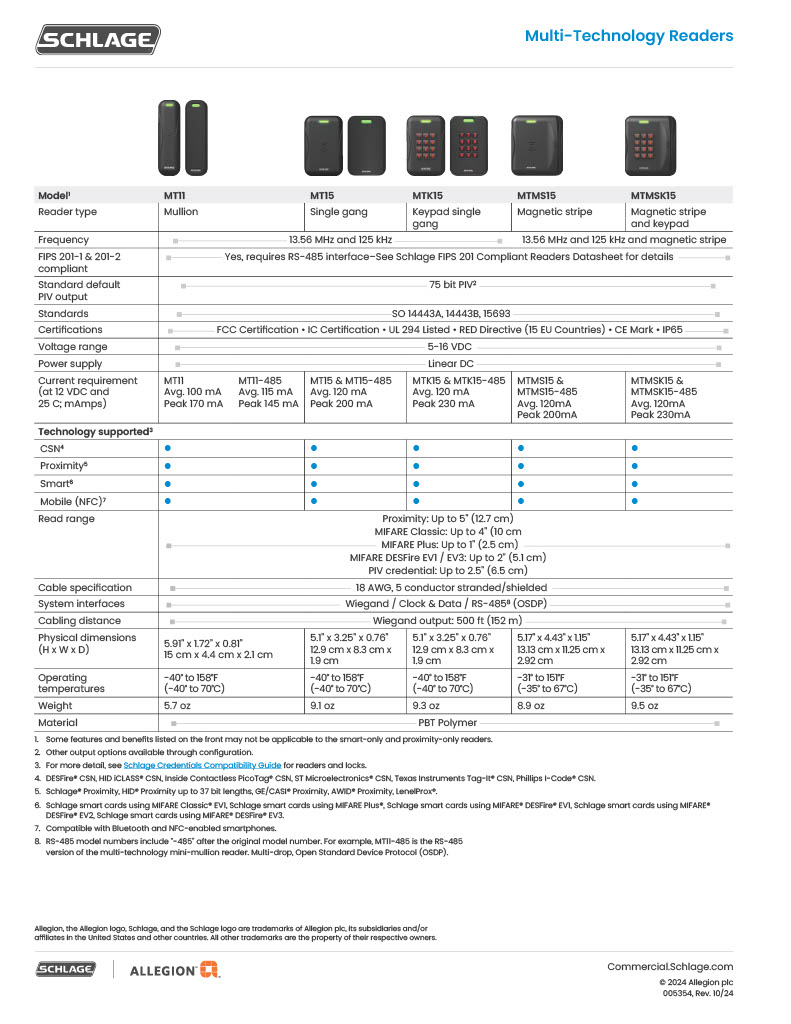

Specifications:Physical dimensions (HxWxD):

   4.43" x 5.17" x 1.15"  Frequency: 13.56 MHz and 125 kHz and magnetic stripe System interface:Wiegand / Clock & Data / OSDP / Optional RS-485 capability Standard default PIV output:  75 bit Standards:  ISO 14443A, 14443B, 15693 Power:  5-16 VDC Wiring:  18 AWG, 5 conductor, 12" length Operating temperatures:  -31 to 151 F (-35  to 67 C) LED:(red, green, or amber) visual indicator and audio feedback Material:  PBT Polymer   Certification:FCC certificationIC certificationUL 294/cUL listedRED Directive (15 EU countries)CE MarkIP65Compatibility:

The MTMSK15 keypad reader recognizes proximity, Schlage smart card and NFC-enabled smart devices, ensuring a seamless transition to high-security smart technology in the future. Open architecture allows readers to integrate with existing access control systems.

Credential types:

Schlage NFC MobileSmart:

Schlage DESFire EV1, EV2, EV3Schlage MIFARE ClassicSchlage Smart cards using CSNHID iClass CSNAdditional Smart cards using CSNProximity:

Schlage proximityHID proximityGE/CASI ProxLiteAWID proximityLenelProx Magnetic stripe: Magnetic stripe track 2 default, tracks 1 and 3 configurable   Styles:

ClamshellISO glossy whiteKeyfobsPVC adhesive discsWearable wristbandsCustom artwork options
