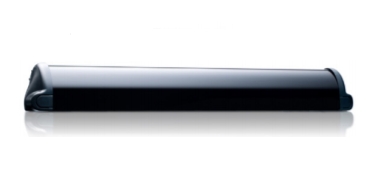

Schlage SCAN 2B Motion Sensor, Black

Schlage SCAN 2B Motion Sensor, Black

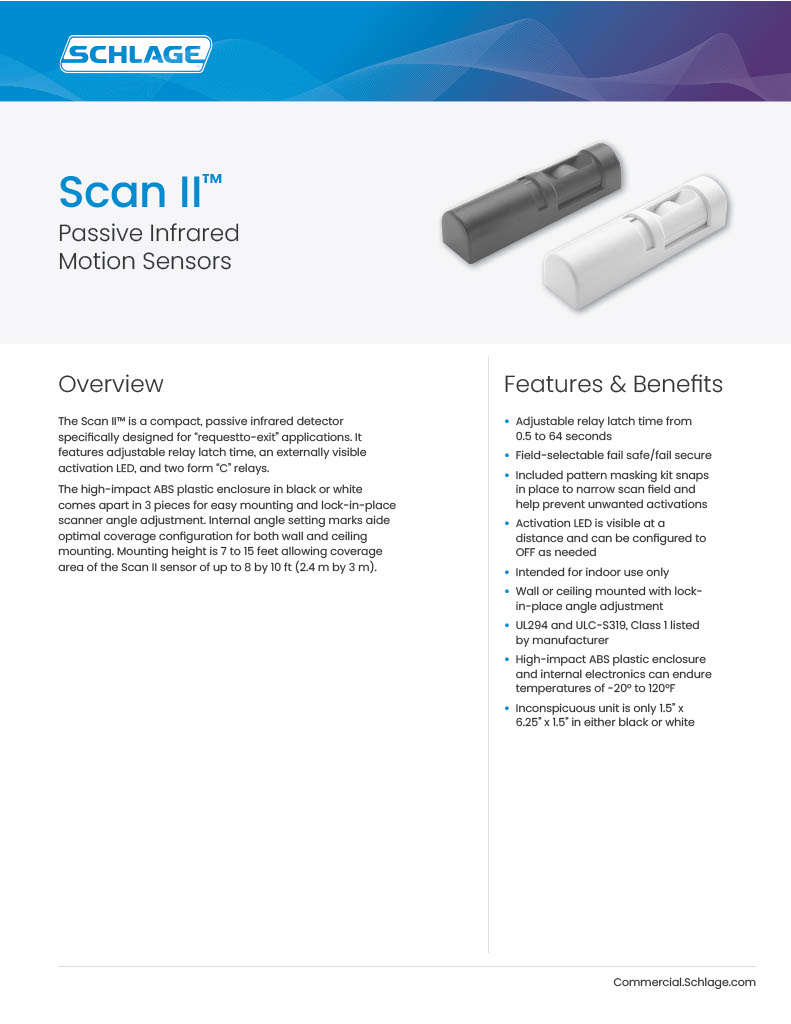

Features and benefits

- Adjustable relay latch time from 0.5 to 64 seconds.

- Field-selectable fail safe/fail secure.

- Included pattern masking kit snaps in place to narrow scan field and help prevent unwanted activations.

- Activation LED is visible at a distance and can be configured to OFF as needed.

- Intended for indoor use only.

- Wall or ceiling mounted with lock-in-place angle adjustment.

- UL294 and ULC-S319, Class 1 listed by manufacturer.

- High-impact ABS plastic enclosure and internal electronics can endure temperatures of -20  to 120 F.

•  Inconspicuous unit is only 1.5" x 6.25" x 1.5" in either black or white.

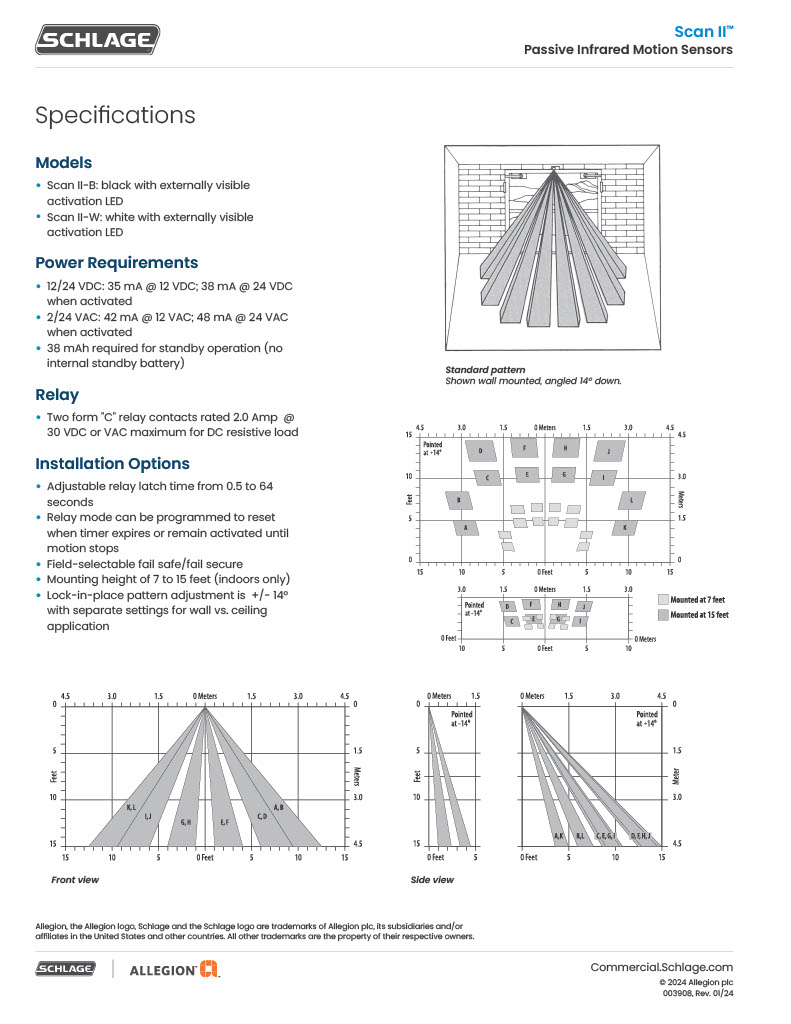

Specifications

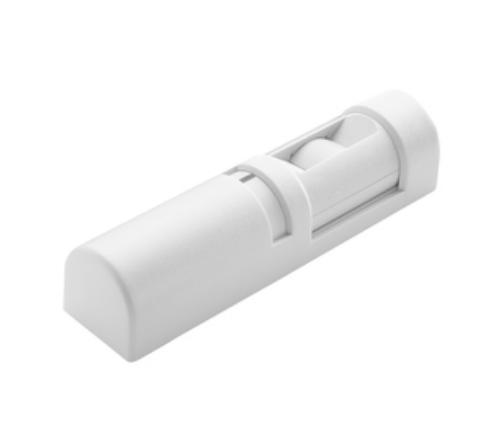

Model: Scan II-W: white with externally visible activation LED.

Power requirements - 12/24 VDC: 35 mA @ 12 VDC; 38 mA @ 24 VDC when activated.

- 12/24 VAC: 42 mA @ 12 VAC; 48 mA @ 24 VAC when activated.

- 38 mAh required for standby operation (no internal standby battery).

Relay - Two form "C" relay contacts rated 2.0 Amp @ 30 VDC or VAC maximum for DC resistive loads.

Installation options - Adjustable relay latch time from 0.5 to 64 seconds.

• Relay mode can be programmed to reset when timer expires or remain activated until motion stops.

• Field-selectable fail safe/fail secure.

• Mounting height of 7 to 15 feet (indoors only).

• Lock-in-place pattern adjustment is +/- 14  with separate settings for wall vs. ceiling application.
