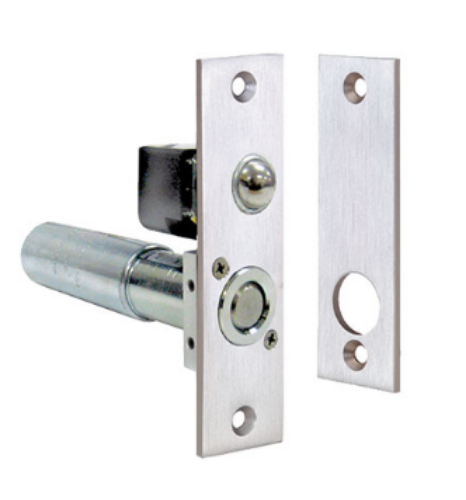

SDC 160IV Conventional Mortise Electric Bolt Lock With Auto Relock Switch, Failsafe - Aluminum

Product Details

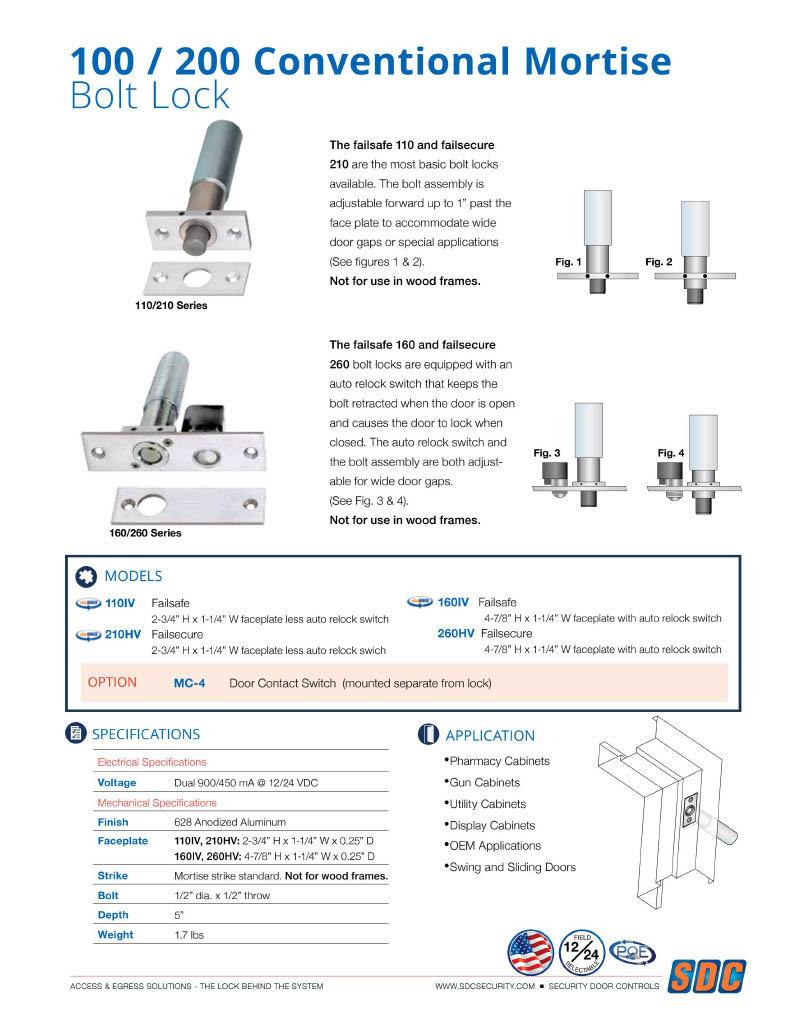

SDC 160IV Conventional Mortise Electric Bolt Lock *With Auto Relock Switch, Failsafe -  Aluminum*

Failsafe4-7/8" H x 1-1/4" W faceplate with auto relock switch

The failsafe 160 bolt locks are equipped with an auto relock switch that keeps the bolt retracted when the door is open and causes the door to lock when closed. The auto relock switch and the bolt assembly are both adjustable for wide door gaps. Not for use in wood frames.

Electrical Specifications:

Voltage: Dual 900/450 mA @ 12/24 VDC

Mechanical Specifications:

Finish: 628 Anodized Aluminum

Faceplate:  4-7/8" H x 1-1/4" W x 0.25" D

Strike: Mortise strike standard. Not for wood frames.

Bolt: 1/2" dia. x 1/2" throw

Depth: 5"

Application:

 Pharmacy Cabinets   Gun Cabinets

 Utility Cabinets        Display Cabinets

 OEM Applications     Swing and Sliding Doors

SDC 160IV Conventional Mortise Electric Bolt Lock With Auto Relock Switch, Failsafe - Aluminum

SKU: 160IV

In Stock

$213.50

About this item



SDC 160IV Conventional Mortise Electric Bolt Lock *With Auto Relock Switch, Failsafe -  Aluminum*

Failsafe4-7/8" H x 1-1/4" W faceplate with auto relock switch

The failsafe 160 bolt locks are equipped with an auto relock switch that keeps the bolt retracted when the door is open and causes the door to lock when closed. The auto relock switch and the bolt assembly are both adjustable for wide door gaps. Not for use in wood frames.

Electrical Specifications:

Voltage: Dual 900/450 mA @ 12/24 VDC

Mechanical Specifications:

Finish: 628 Anodized Aluminum

Faceplate:  4-7/8" H x 1-1/4" W x 0.25" D

Strike: Mortise strike standard. Not for wood frames.

Bolt: 1/2" dia. x 1/2" throw

Depth: 5"

Application:

 Pharmacy Cabinets   Gun Cabinets

 Utility Cabinets        Display Cabinets

 OEM Applications     Swing and Sliding Doors

160iv
SDC 160IV Conventional Mortise Electric Bolt Lock With Auto Relock Switch, Failsafe - Aluminum

Product code: 160IV

In Stock

$293.00

$213.50

160iv
SDC 160IV Conventional Mortise Electric Bolt Lock With Auto Relock Switch, Failsafe - Aluminum

Product code: 160IV

In Stock

$293.00

$213.50
