SDC DTMO-1 Integrated Digital Keypad, 1 Gang, One momentary switch and one LED

SDC DTMO-1 Integrated Digital Keypad, 1 Gang, One momentary switch and one LED

Product Details

SDC DTMO-1 Integrated Digital Keypad, 1 Gang, One momentary switch and one LED

DTMO-1SDC Integrated Digital Keypad, 1 Gang, 120 Users, 12/24V AC/DC, 1 relay, 4 aux outputs, panic, tamper lockout.

Features:

? The momentary switch can be used to release a single opening. The maintained (On / Off) switch is used as a bypass for keeping the door unlocked for an extended period of time. The tri-color LED displays Green, Red and Amber colors to indicate up to three lock status conditions

? Push button switches provide an aesthetically pleasing appearance and high operational reliability.

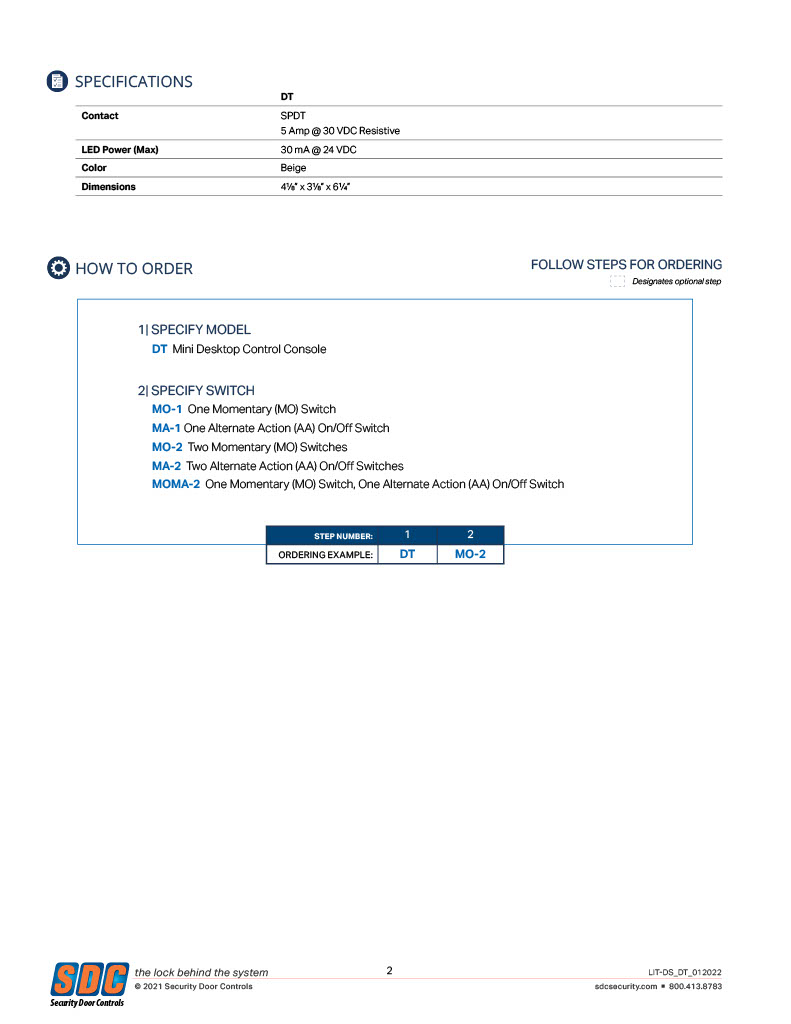

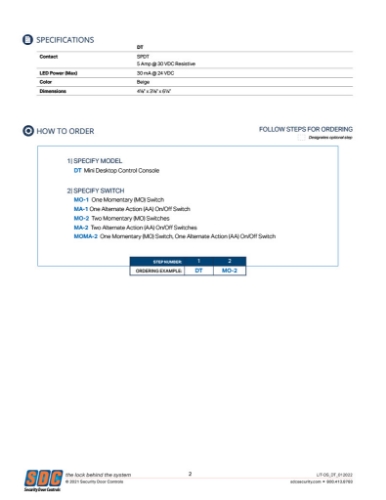

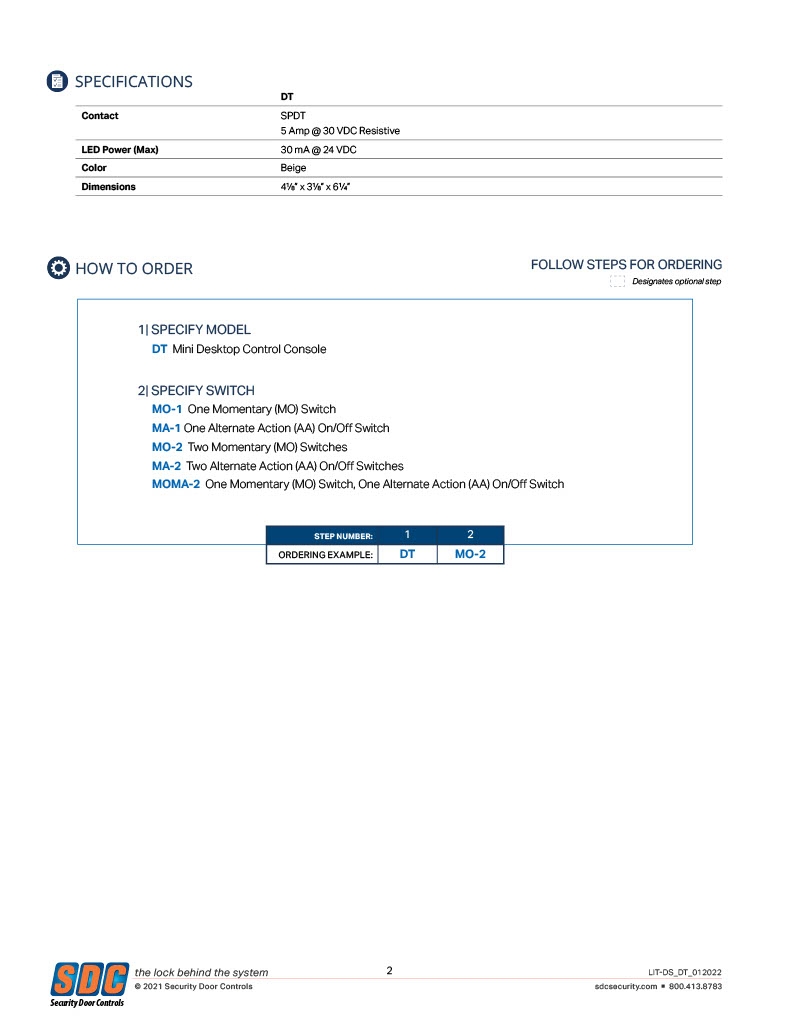

SPECIFICATIONS:

Contact Rating: 2 Amp @ 24VDC, SPDT

Input Power: 12/24VDC @ 0.02 Amp Required for Each LED

Color: Beige

Dimensions: 4.125" W x 3.125" H x 6.25" L

SDC DTMO-1 Integrated Digital Keypad, 1 Gang, One momentary switch and one LED

Name: SDC DTMO-1 Integrated Digital Keypad, 1 Gang, One momentary switch and one LED
SKU: DTMO-1
Price: 201.96 USD
Availability: InStock

SKU: DTMO-1

In Stock

Chat

$201.96

About this item

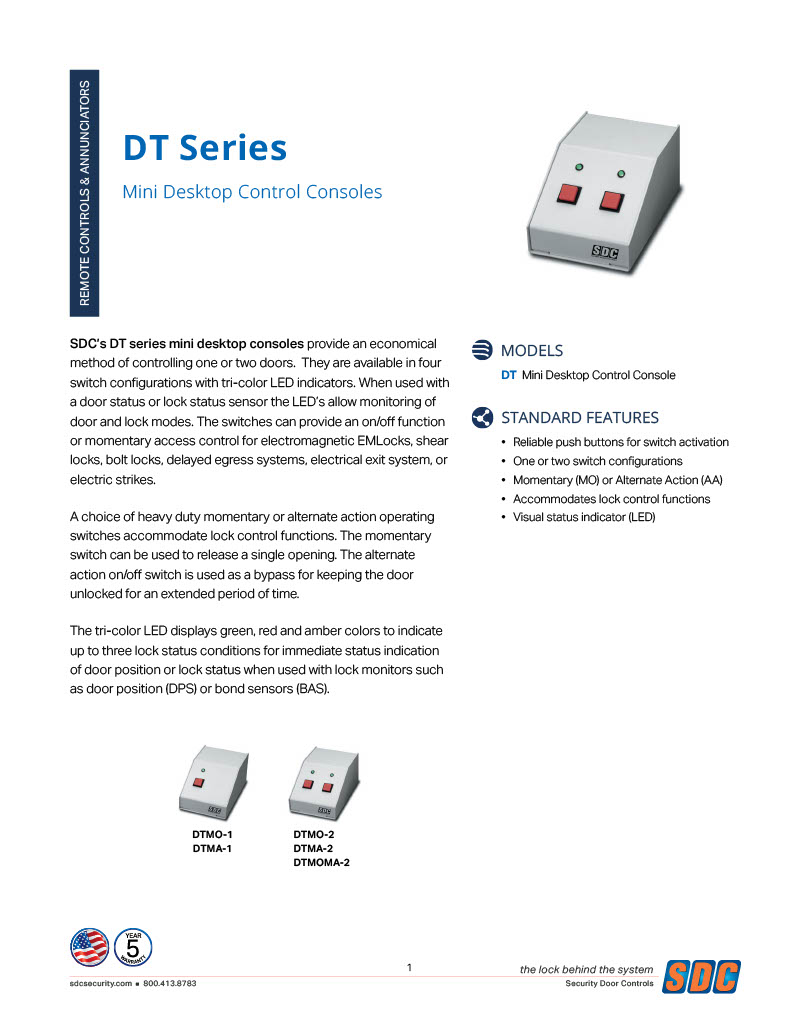

The SDC Mini Desktop Consoles provide an economical method of controlling one or two doors. They are available in three switch configurations with Tri-Color LED indicators. When used with a door status or lock status sensor the LED’s allow monitoring of door and lock modes. The switches can provide an On / Off function or momentary access control for electromagnetic EMLocks, Shear Locks, Bolt Locks, Delayed Egress Systems, Electrical Exit System, or Electric Strikes.
