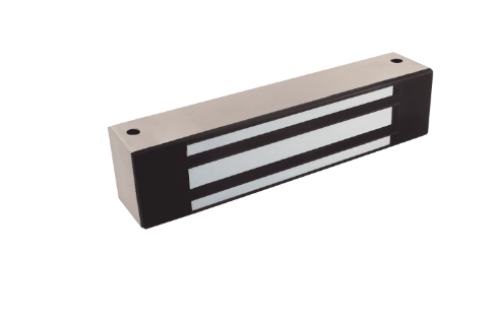

Securitron M32BD Magnalock - Magnetic Bond Sensor (MBS) - Door Position Switch (DPS) - 600 lbs

Securitron M32BD Magnalock - Magnetic Bond Sensor (MBS) - Door Position Switch (DPS) - 600 lbs

Features: Ultra-secure Direct Mount to the door frame for strength and reliability Fully sealed and conformal coated for weatherproof operations Sealed 10 ft [3.05m] jacketed, stranded conductor cable Patented instant release circuit - no residual magnetism Noise Suppression - no interference with sensitive electronics Surface mounts easily with mounting bracket using minimal tools Internal wire access chamber Mounted using steel machine screws into blind finishing nuts Efficent, low power usage All ferrous metal surfaces plated to MIL specification Automatic dual voltage - no field adjustment required Dress Covers available MagnaCare Lifetime Replacement No Fault Warranty UL Listed

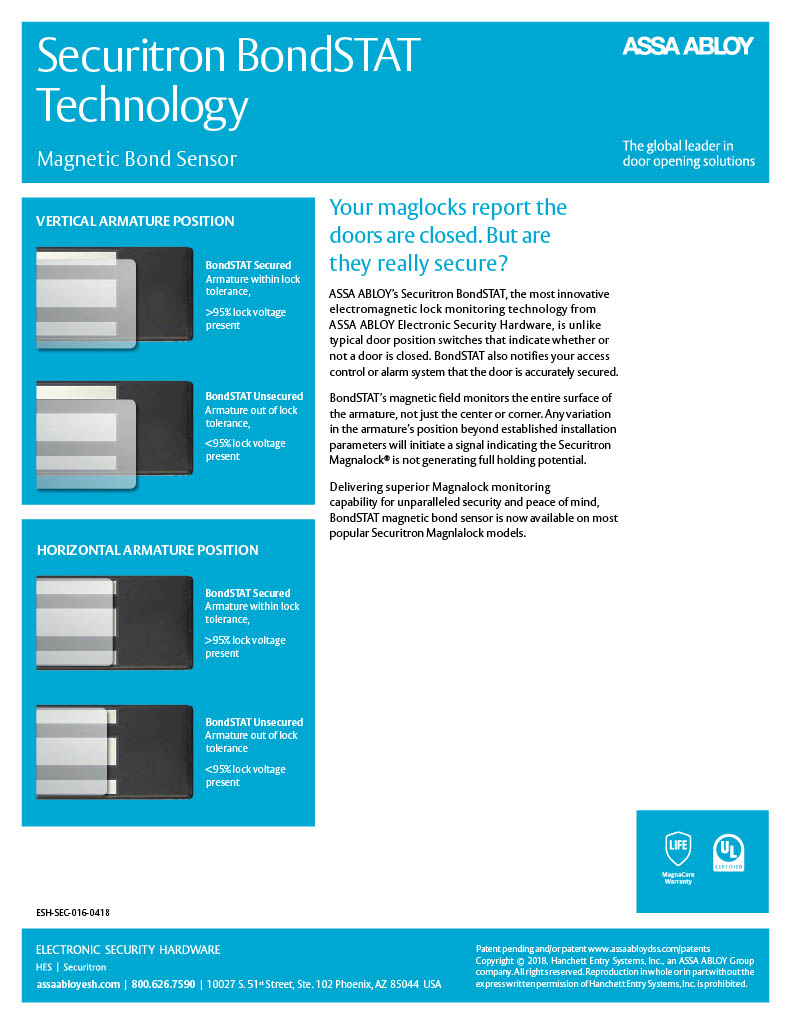

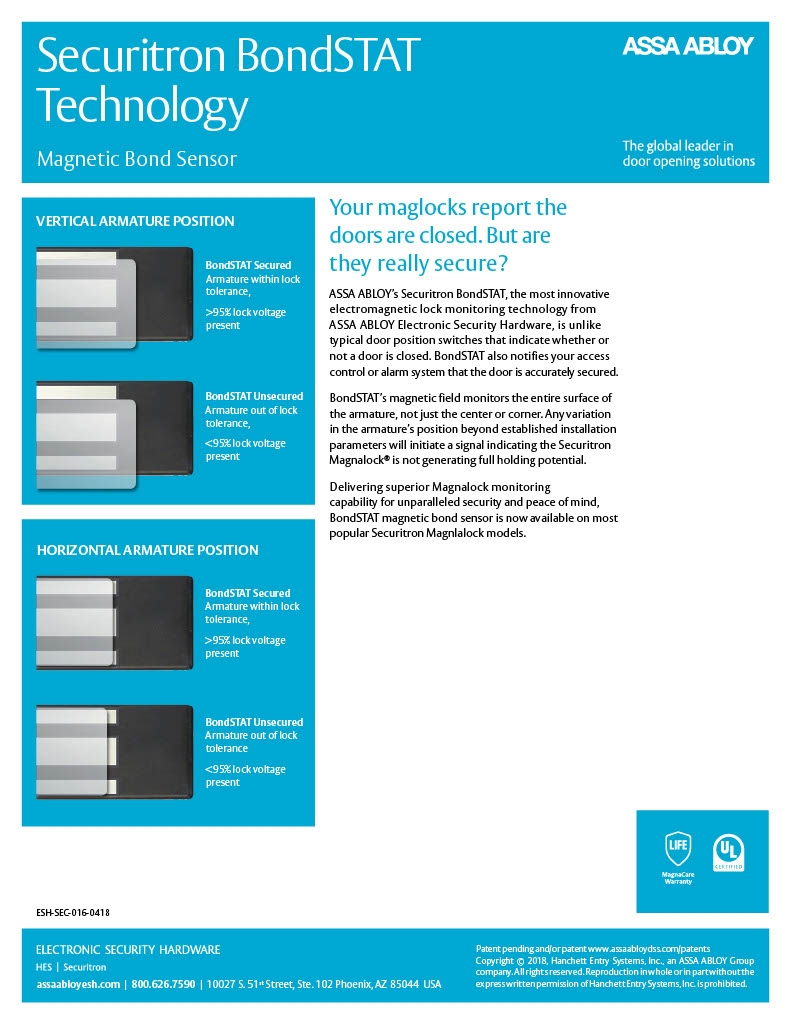

Description: Magnetic Bond Sensor (MBS): Magnetic Bond Sensor (MBS) delivers unparalleled peace of mind by detecting an armature plate and notifying access control and/or alarm systems that a door is properly secured.

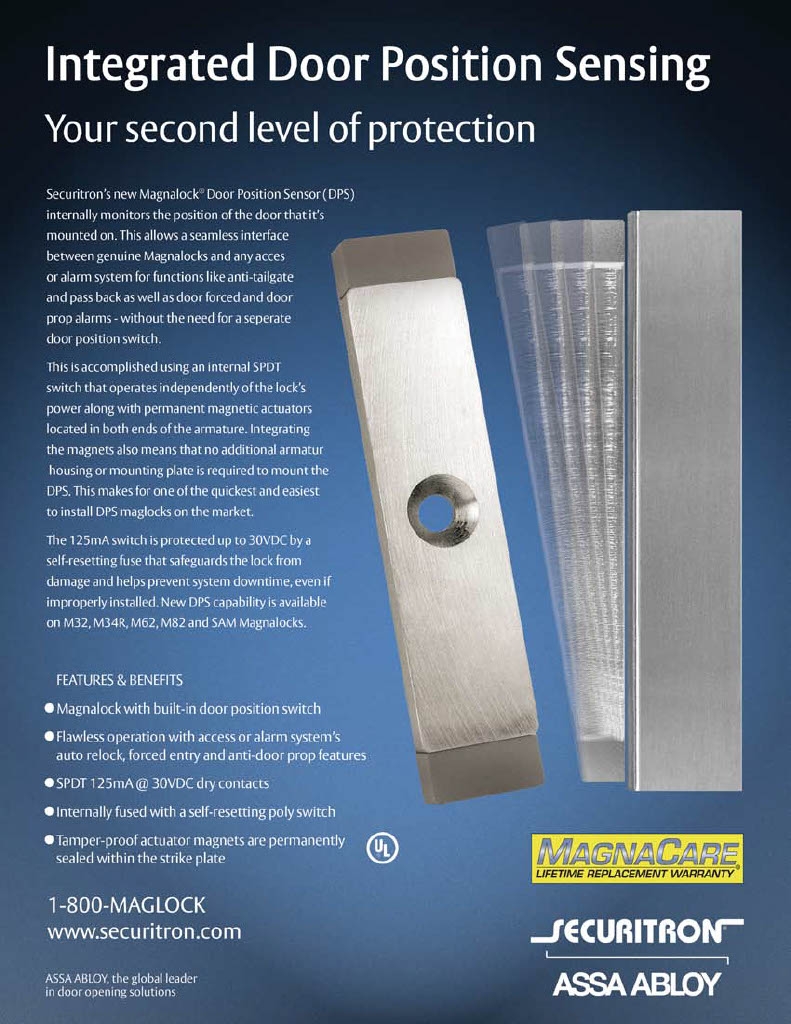

Door Position Switch (DPS):The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed.

Holding Force:600 lbs [272kg]

Dimensions: Magnalock: 8"L x 1-5/8"D x 1-7/8"H Strike: 6-1/4"L x 1/2"D x 1-5/8"H

Current Draw and Voltage:300mA at 12VDC; 150mA at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:6 lbs.

Finishes:US32D/630 - Satin Stainless Steel , CL - Clear (Dress Cover), BK - Black (Dress Cover), US32/629 - Polished Stainless (Dress Cover), US03/605 - Polished Brass (Dress Cover)

Model:M32BD

? UL 10C Listed ? CAN4-S104, CAN/ULC - S533 Listed ? ANSI/UL 294 Listed ? CSA - C22.2 No 205 Listed ? ANSI/BHMA 156.23, Grade 1; E08501-500 ? NFPA 101 ? CSFM - California State Fire Marshal Approved ? MEA - City of New York Approved ? CE:EN50091-1, EN 61000-6-2 Approved ? NEMA: 4X ? IEC: IP66
