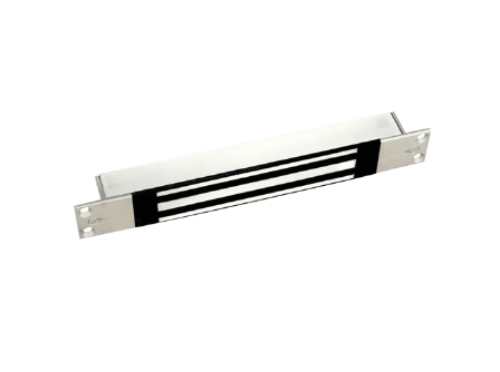

Securitron M34RD Magnalock - Recessed - Door Position Switch (DPS) - 500 lbs

Securitron M34RD Magnalock - Recessed - Door Position Switch (DPS) - 500 lbs

Features: Patented instant release circuit - no residual magnetism Recessed for aesthetically appealing finish Fully sealed electronics - tamper proof and weatherproof All ferrous metal surfaces plated to MIL specification Ten feet [3.05m] of jacketed, stranded conductor Noise suppression - no interference with sensitive electronics Automatic dual voltage - no field adjustment required Efficient low power usage MagnaCare Lifetime Replacement No Fault Warranty UL Listed

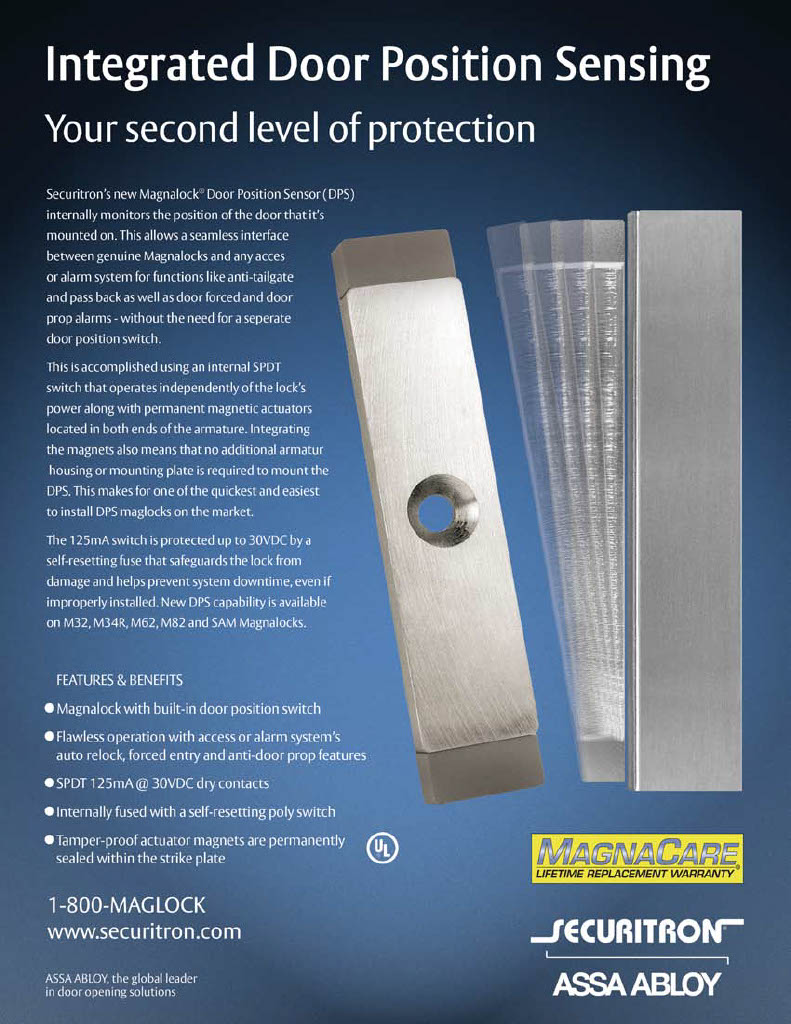

Description: Door Position Switch(DPS): The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed.

Holding Force:500 lbs. [227 kg]

Dimensions: Magnalock: 10-1/2"L x 1-1/8"D x 1-1/2"H Strike: 6-3/8"L x 1/2"D x 1-7/16"H

Current Draw and Voltage:320mA at 12VDC; 170mA at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:5 lbs

Finishes:US32D/630 - Satin Stainless Steel

Model:M34RD

 UL 10C Listed CAN4-S104, CAN/ULC - S533 Listed CSFM - California State Fire Marshal Approved CE:EN 50091-1, EN 61000-6-2 Approved NEMA:4X IEC:IP66
