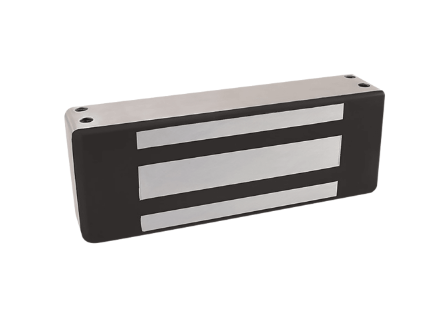

Securitron M62 Magnalock - Model 62 - Versatility for Indoor/Outdoor Higher Security - 1200 lbs

Securitron M62 Magnalock - Model 62 - Versatility for Indoor/Outdoor Higher Security - 1200 lbs

Features: Ultra-secure Direct Mount to the door frame for strength and reliability Patented instant release circuit - no residual magnetism Fully sealed electronics - tamper proof and weatherproof Noise Suppression - no interference with sensitive electronics Surface mounts easily with minimal tools Efficient, low power usage Mounted using steel machine screws into blind finishing nuts All ferrous metal surfaces plated to MIL specification Fits in 2.5" of flat space Hardware accessories available to configure any opening Dress Covers available Ten feet [3.05m] of jacketed, stranded conductor Automatic dual voltage - no field adjustment required Universal threaded conduit fitting is 1/2" female - 3/4" male MagnaCare Lifetime Replacement No Fault Warranty UL Listed

Holding Force:1200 lbs. [544 kg]

Dimensions: Magnalock: 8"L x 1-3/4"D x 3"H Strike: 6"L x 1/2"D x 2-3/4"H

Current Draw and Voltage:250mA at 12VDC; 150mA at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:11 lbs.

Finishes:US32D/630 - Satin Stainless Steel, CL - Clear (Dress Cover), BK - Black (Dress Cover), US32/629 - Polished Stainless (Dress Cover), US03/605 - Polished Brass (Dress Cover)

Model:M62

 UL 10C Listed CAN4-S104, CAN/ULC - S533 Listed ANSI/UL 294 Listed CSA - C22.2 No.205 ListedANSI/BHMA 156.23, Grade 1; E08501-1000 NFPA 101 CSFM - California State Fire Marshal Approved MEA - City of New York Approved CE:EN 50091-1, EN61000-6-2 Approved NEMA:4X IEC:IP66
