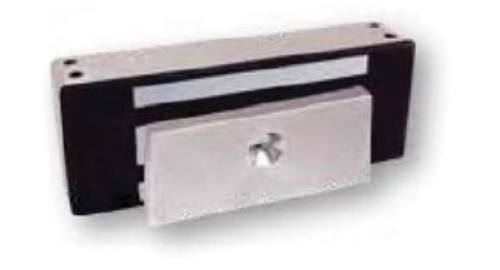

Securitron M62B-OS Magnalock - Magnetic Bond Sensor (MBS) - Offset Strikes

Securitron M62B-OS Magnalock - Magnetic Bond Sensor (MBS) - Offset Strikes

Features: Ultra-secure Direct Mount to the door frame for strength and reliability Patented instant release circuit - no residual magnetism Fully sealed electronics - tamper proof and weatherproof Noise Suppression - no interference with sensitive electronics Surface mounts easily with minimal tools Efficient, low power usage Mounted using steel machine screws into blind finishing nuts All ferrous metal surfaces plated to MIL specification Fits in 2.5" of flat space Hardware accessories available to configure any opening Dress Covers available Ten feet [3.05m] of jacketed, stranded conductor Automatic dual voltage - no field adjustment required Universal threaded conduit fitting is 1/2" female - 3/4" male MagnaCare Lifetime Replacement No Fault Warranty UL Listed

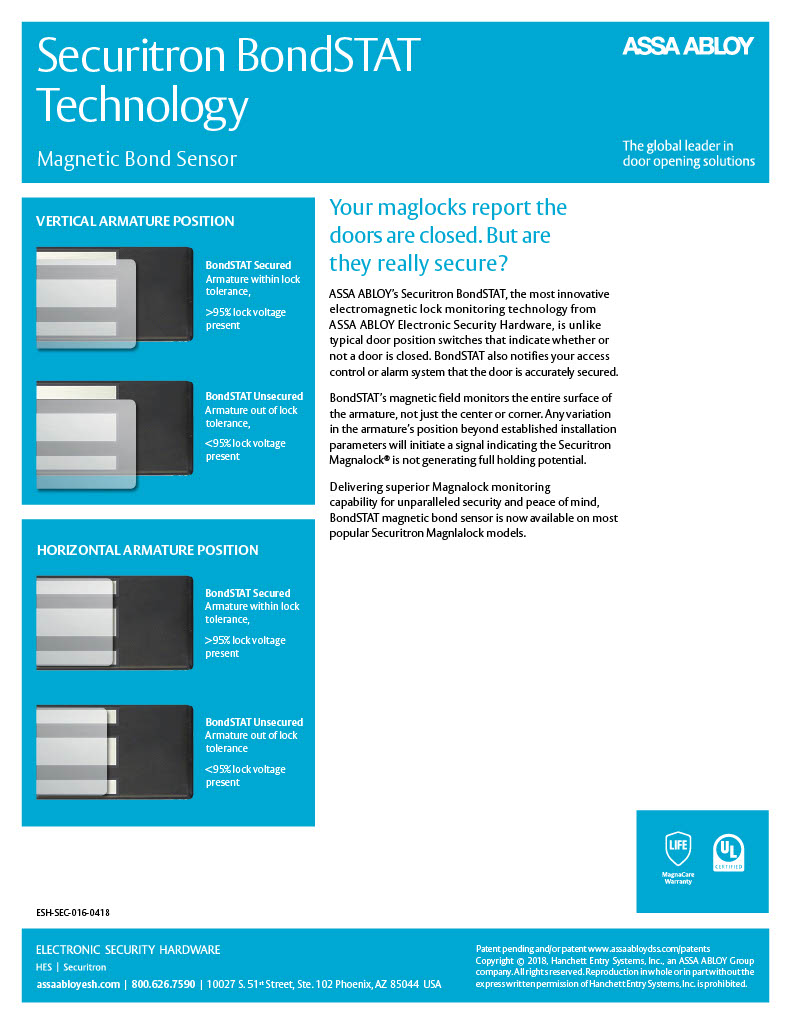

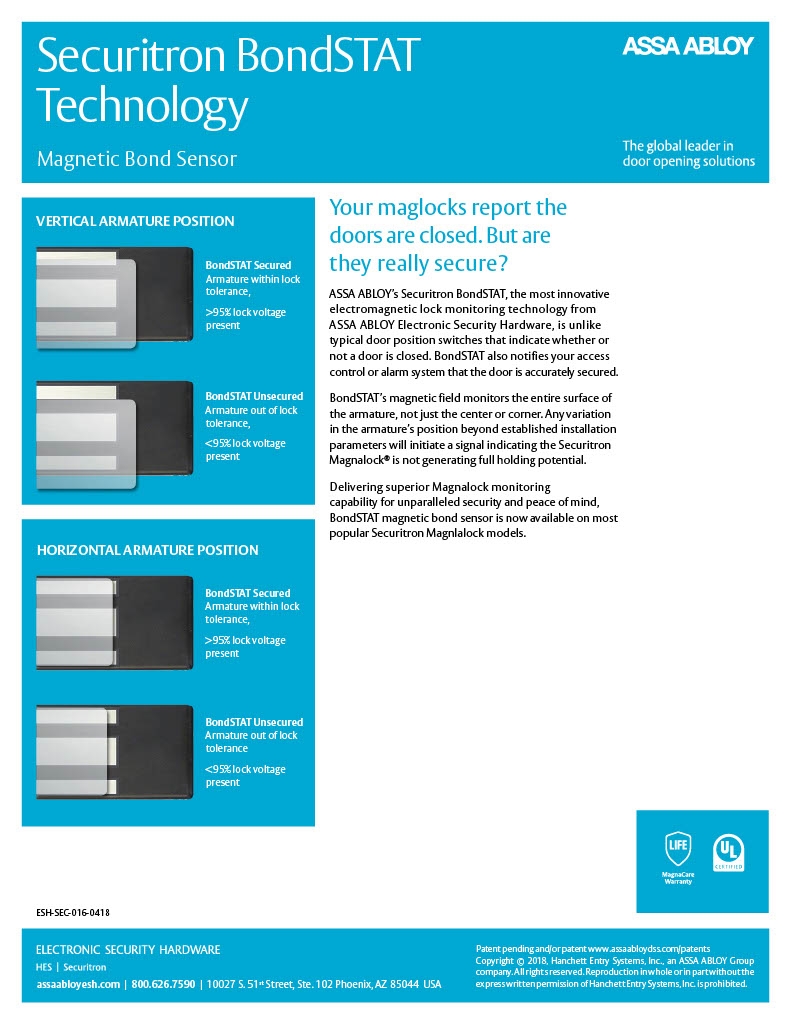

Description: Magnetic Bond Sensor (MBS): Magnetic Bond Sensor (MBS) delivers unparalleled peace of mind by detecting an armature plate and notifying access control and/or alarm systems that a door is properly secured.

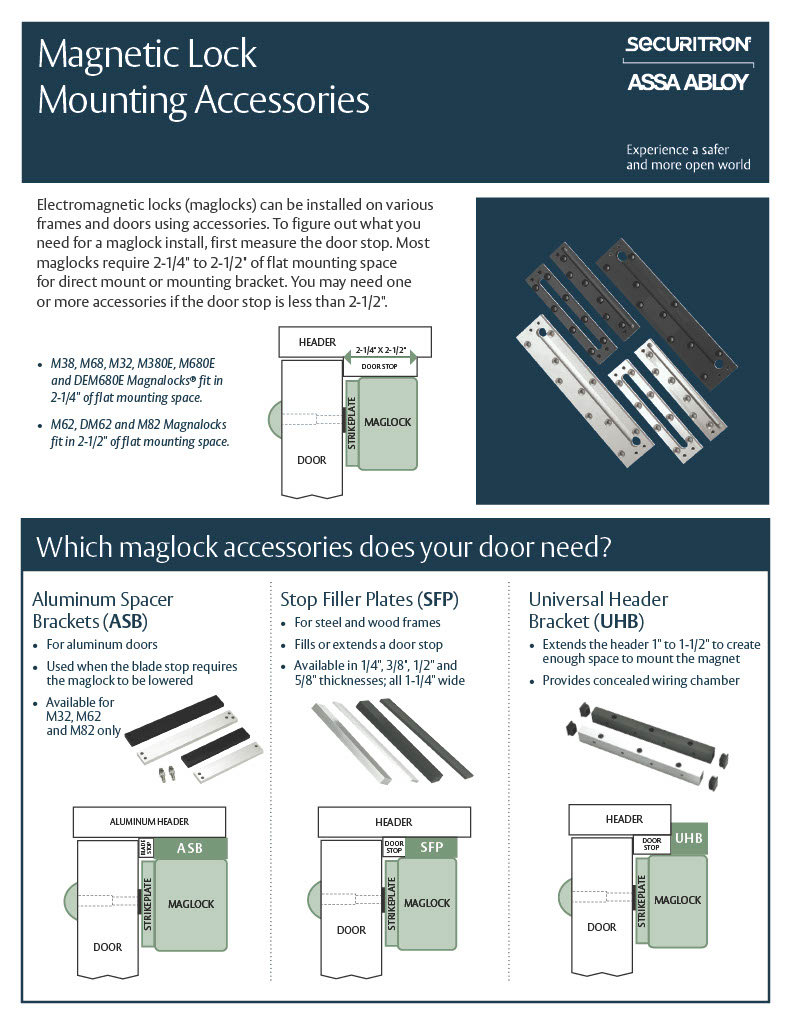

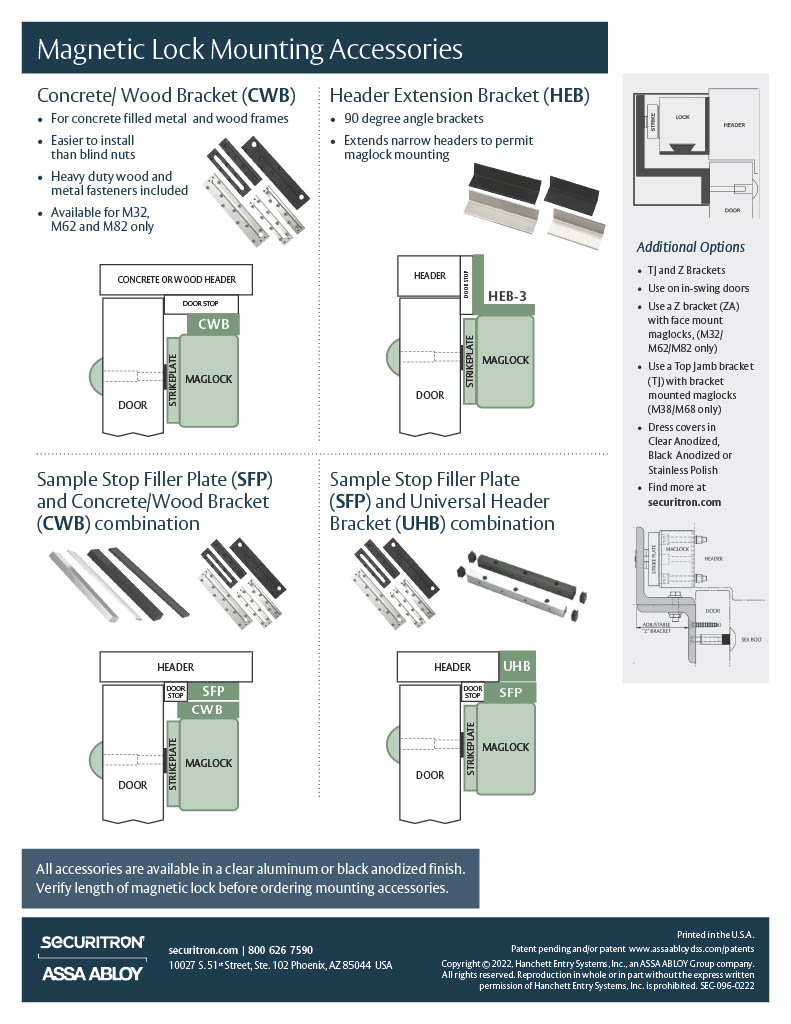

Offset Strike: An Offset strike may be required for proper installation of the M62 in aluminum frame door applications.

Holding Force:1200 lbs. [544 kg]

Dimensions: Magnalock: 8"L x 1-3/4"D x 3"H Strike: 6"L x 1/2"D x 2-3/4"H

Current Draw and Voltage:250mA at 12VDC; 150mA at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:11 lbs.

Finishes:US32D/630 - Satin Stainless Steel, CL - Clear (Dress Cover), BK - Black (Dress Cover), US32/629 - Polished Stainless (Dress Cover), US03/605 - Polished Brass (Dress Cover)

Model:M62BOS
