Product Details

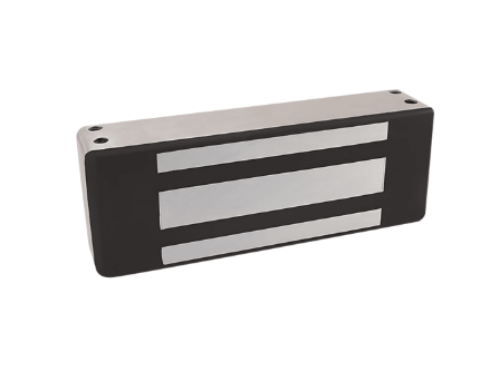

Securitron M62D Magnalock - Door Position Switch (DPS) - 1200 lbs

Features: Ultra-secure Direct Mount to the door frame for strength and reliability Patented instant release circuit - no residual magnetism Fully sealed electronics - tamper proof and weatherproof Noise Suppression - no interference with sensitive electronics Surface mounts easily with minimal tools Efficient, low power usage Mounted using steel machine screws into blind finishing nuts All ferrous metal surfaces plated to MIL specification Fits in 2.5" of flat space Hardware accessories available to configure any opening Dress Covers available Ten feet [3.05m] of jacketed, stranded conductor Automatic dual voltage - no field adjustment required Universal threaded conduit fitting is 1/2" female - 3/4" male MagnaCare Lifetime Replacement No Fault Warranty UL Listed

Description: Door Position Switch (DPS): The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed.

Holding Force:1200 lbs. [544 kg]

Dimensions: Magnalock: 8"L x 1-3/4"D x 3"H Strike: 6"L x 1/2"D x 2-3/4"H

Current Draw and Voltage:250mA at 12VDC; 150mA at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:11 lbs.

Finishes:US32D/630 - Satin Stainless Steel, CL - Clear (Dress Cover), BK - Black (Dress Cover), US32/629 - Polished Stainless (Dress Cover), US03/605 - Polished Brass (Dress Cover)

Model:M62D

Securitron M62D Magnalock - Door Position Switch (DPS) - 1200 lbs

SKU: M62D

In Stock

$466.86

About this item

The Securitron M62D is the door position switch (DPS) variant of the M62 Magnalock platform, delivering 1200 lbs of holding force with an integrated DPS sensor that signals the access control system whether the door is open or closed. Direct-mount to the door frame for ultra-secure installation. Patented instant release circuit eliminates residual magnetism. Fully sealed electronics for tamper-proof and weatherproof operation. Automatic dual voltage (12 VDC or 24 VDC) requires no field adjustment. UL 10C Listed, ANSI/UL 294 Listed, BHMA Grade 1, NFPA 101 compliant, NEMA 4X, IEC IP66 rated. Backed by Securitron's MagnaCare Lifetime Replacement No-Fault Warranty. SKU M62D. In stock.



What Does the "D" Mean: M62 vs M62D

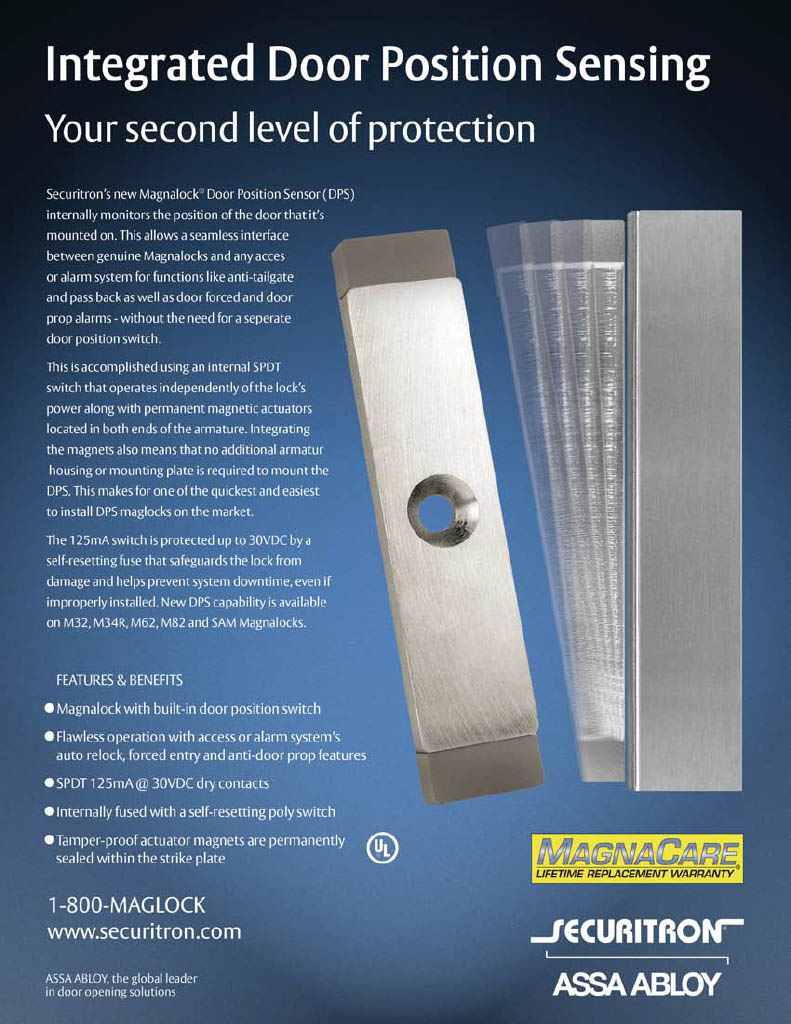

The M62 is the base Magnalock platform. The M62D adds a built-in Door Position Switch sensor inside the maglock body, eliminating the need for a separate door contact or recessed magnetic switch on the same opening. The DPS provides a dry-contact signal to the access control panel reporting open or closed door state, which the panel uses to detect forced-door alarms, door-held-open alerts, and request-to-exit confirmation. Specifying the M62D instead of base M62 plus separate DPS contact saves install labor, reduces wiring, and gives a cleaner door schedule. For openings without an access control panel (or where DPS is wired separately), the base Securitron M62 Series is the right specification.



Specifications



Holding force: 1200 lbs (544 kg). Magnalock dimensions: 8" L x 1-3/4" D x 3" H. Strike dimensions: 6" L x 1/2" D x 2-3/4" H. Current draw: 250 mA at 12 VDC, 150 mA at 24 VDC. Voltage: automatic dual voltage, no field adjustment. Operating temperature: -40°F to +140°F (-40°C to +60°C). Conduit fitting: universal threaded, 1/2" female to 3/4" male. Lead: 10 ft of jacketed stranded conductor. Mounting space: fits in 2.5" of flat space. Mounting hardware: steel machine screws into blind finishing nuts. All ferrous metal surfaces plated to MIL specification. Shipping weight: 11 lbs.



Compliance and Listings



UL 10C Listed, CAN4-S104, CAN/ULC-S533 Listed, ANSI/UL 294 Listed, CSA C22.2 No. 205 Listed, ANSI/BHMA 156.23 Grade 1, E08501-1000, NFPA 101, CSFM (California State Fire Marshal Approved), MEA (City of New York Approved), CE EN 50091-1, EN 61000-6-2 Approved, NEMA 4X, IEC IP66.



Finishes



Standard finish on the maglock body: US32D/630 Satin Stainless Steel. Optional dress covers (sold separately) for openings where aesthetic continuity matters: CL Clear Anodized, BK Black Anodized, US32/629 Polished Stainless, US03/605 Polished Brass.



Where to Specify



The M62D is the right specification for high-traffic interior, perimeter, and exterior access-controlled openings where the access control panel needs DPS feedback for forced-door and door-held alarms. Common applications include data center perimeter doors, healthcare secure-area doors, multi-tenant building lobby and stairwell doors, school and university classroom and corridor doors, government and corporate office secure entries, and outdoor gate access points where weatherproof rating and integrated DPS are both required. The maglock direct-mounts to the door frame; the strike mounts to the door leaf.



Recommended Accessories for the M62 Platform

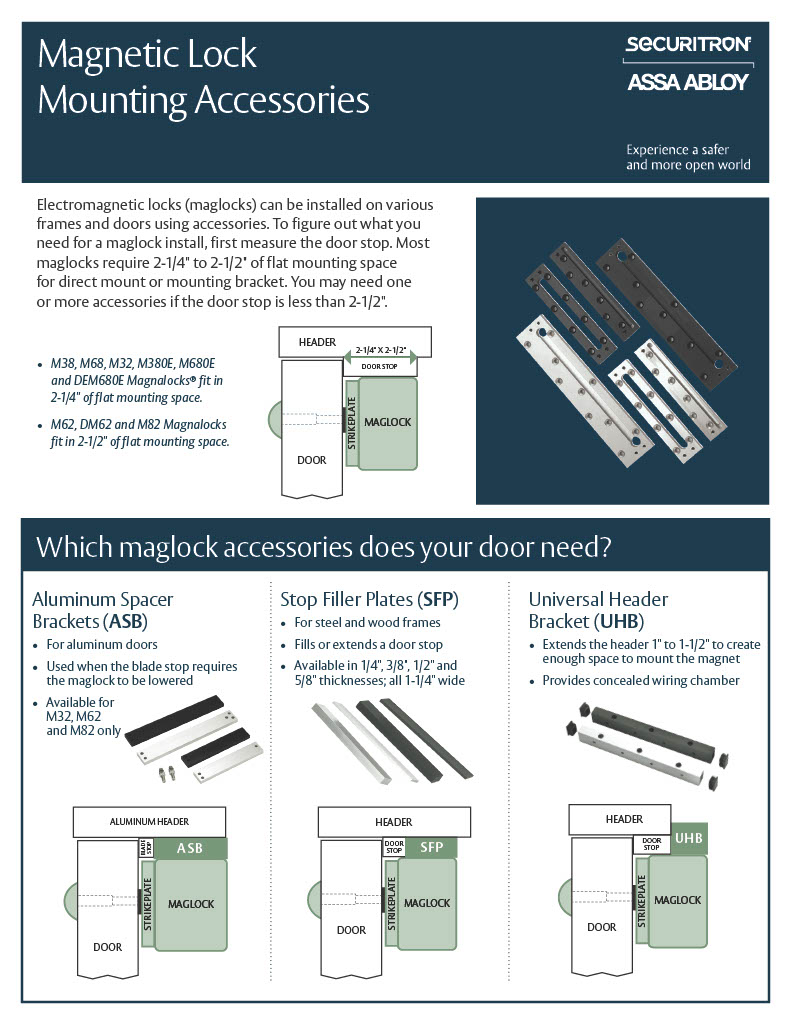

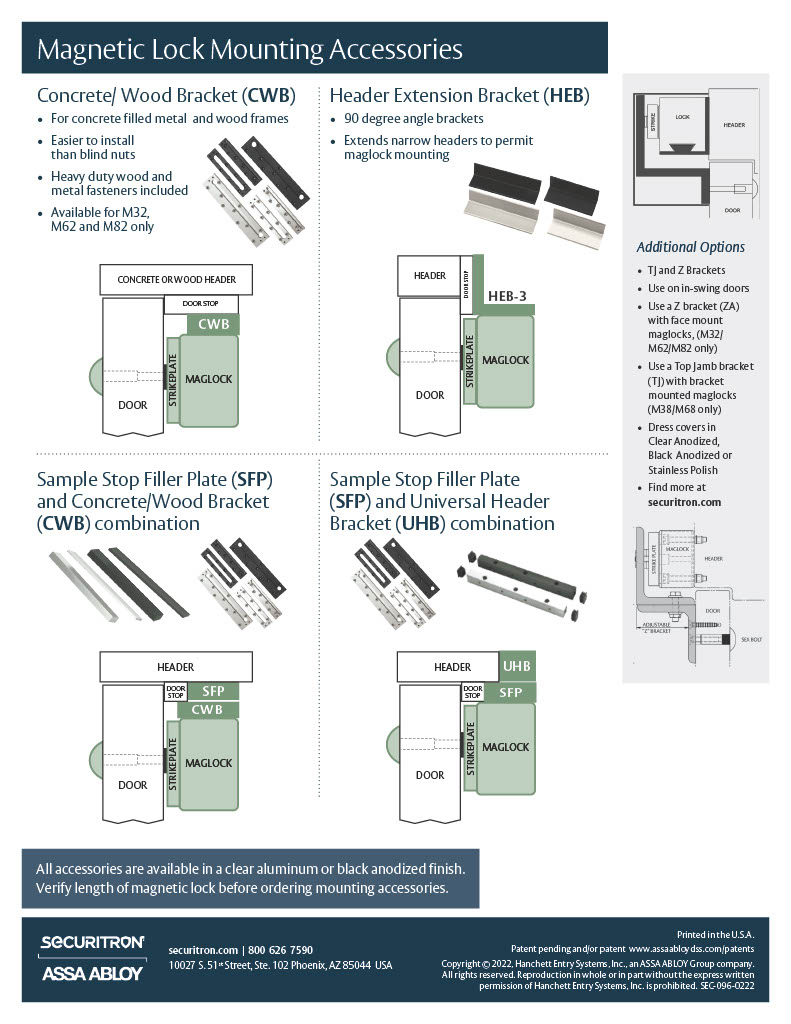

For frame and door reinforcement on glass, hollow metal, or wood-and-concrete jambs, specify the appropriate bracket from the Securitron Magnalock Brackets and Accessories family. The most common pairings on the M62 platform are the EASB-62 Energy Absorbing Sex Bolt for high-impact doors, the ZA-32/62 adjustable Z-bracket for inswing applications, the CWB-62 concrete and wood bracket for masonry installations, the HEB-3G header extension bracket for glass doors, and the DC-62 or DDC-62 dress covers for finished aesthetic. All M62 series accessories on this site are inter-compatible with the M62D body.



Where This Sits in the Securitron Catalog



The M62D is one of several variants in the Securitron M62 Series, the indoor and outdoor higher-security platform within Securitron Maglocks and Accessories under the broader Magnetic Locks category. American Locksets has stocked Securitron Magnalocks since 2001 with same-day shipping from authorized US distribution.



Securitron M62D Magnalock - Door Position Switch (DPS) - 1200 lbs

Features: Ultra-secure Direct Mount to the door frame for strength and reliability Patented instant release circuit - no residual magnetism Fully sealed electronics - tamper proof and weatherproof Noise Suppression - no interference with sensitive electronics Surface mounts easily with minimal tools Efficient, low power usage Mounted using steel machine screws into blind finishing nuts All ferrous metal surfaces plated to MIL specification Fits in 2.5" of flat space Hardware accessories available to configure any opening Dress Covers available Ten feet [3.05m] of jacketed, stranded conductor Automatic dual voltage - no field adjustment required Universal threaded conduit fitting is 1/2" female - 3/4" male MagnaCare Lifetime Replacement No Fault Warranty UL Listed

Description: Door Position Switch (DPS): The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed.

Holding Force:1200 lbs. [544 kg]

Dimensions: Magnalock: 8"L x 1-3/4"D x 3"H Strike: 6"L x 1/2"D x 2-3/4"H

Current Draw and Voltage:250mA at 12VDC; 150mA at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:11 lbs.

Finishes:US32D/630 - Satin Stainless Steel, CL - Clear (Dress Cover), BK - Black (Dress Cover), US32/629 - Polished Stainless (Dress Cover), US03/605 - Polished Brass (Dress Cover)

Model:M62D

M62D
Securitron M62D Magnalock - Door Position Switch (DPS) - 1200 lbs

Product code: M62D

In Stock

$466.86

$466.86

 UL 10C Listed CAN4-S104, CAN/ULC - S533 Listed ANSI/UL 294 Listed CSA - C22.2 No.205 Listed ANSI/BHMA 156.23, Grade 1; E08501-1000 NFPA 101 CSFM - California State Fire Marshal Approved MEA - City of New York Approved CE:EN 50091-1, EN61000-6-2 Approved NEMA:4X IEC:IP66
