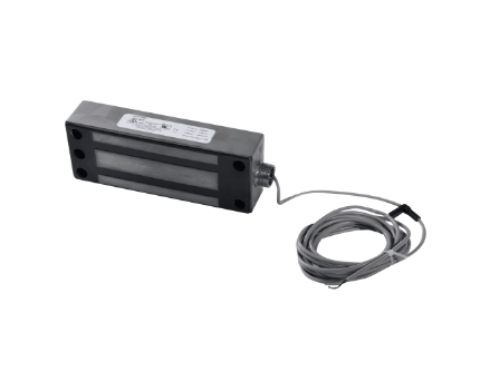

Securitron M62FG-SASM Gate Magnalock - M62 - Face Drilled, Gate Conduit w/ SASM Bracket - 1200 lbs

Securitron M62FG-SASM Gate Magnalock - M62 - Face Drilled, Gate Conduit w/ SASM Bracket - 1200 lbs

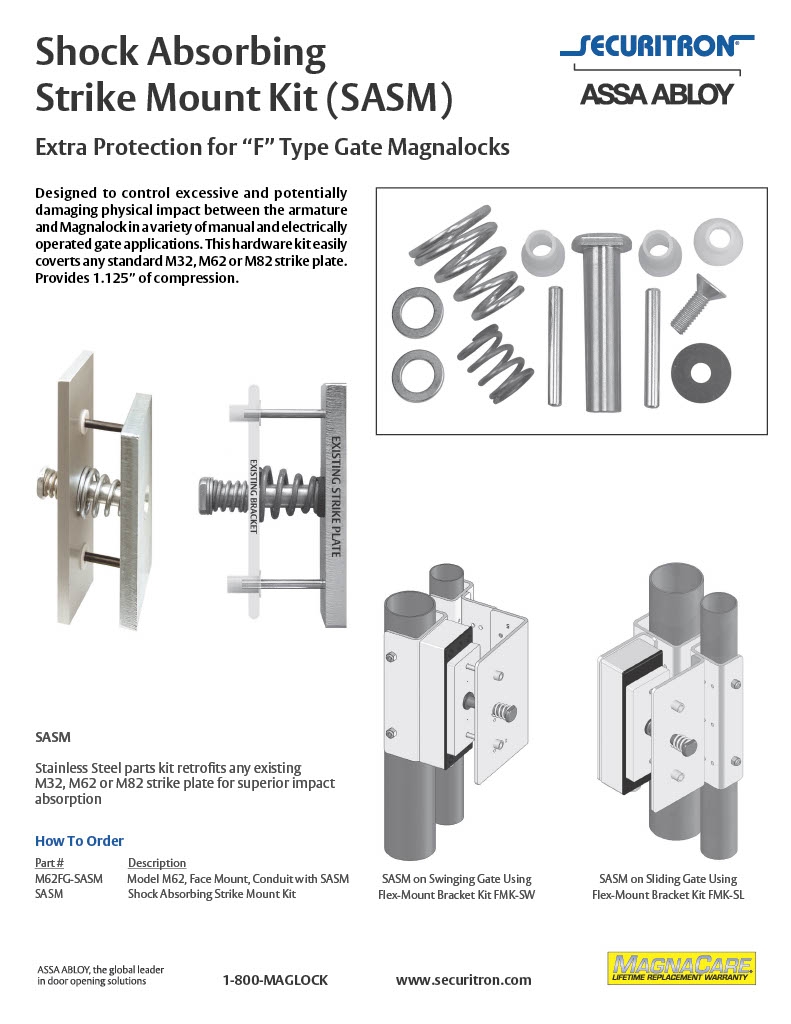

Features: Patented instant release circuit - no residual magnetism Flexible brackets option for swinging or sliding applications Fully sealed electronics - tamper proof and weatherproof Ten feet [3.05m] of jacketed, stranded conductor Automatic dual voltage - no field adjustment required Universal threaded conduit fitting is 1/2" female - 3/4" male All ferrous metal surfaces plated for durability MagnaCare Lifetime Replacement No Fault Warranty SASM is a simple-to-install Stainless Steel parts kit SASM main spring provides 5/8" impact compression and 110 lbs. resistance SASM anti-kickback spring provides 3/8" of rebound travel to return the gate to the normal "home" position

Description: Face Drilled: Face Drilled provide the holes for the mounting bolts through the face of the magnet in a front-to-back orientation rather than through the magnet bottom-to-top.

Gate Conduit: The conduit fitting is offered on some Magnalocks that can be used for gate-mounting applications and features aouter diameter andinner diameter.

Holding Force:1200 lbs. [544 kg]

Current Draw and Voltage:250mA at 12VDC; 125mA at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:12 lbs. [5.44kg]

Finishes:US32D/630 - Satin Stainless Steel

Model:M62FGSASM

 UL 10C Listed CAN4-S104, CAN/ULC - S533 Listed ANSI/UL 294 Listed CSA - C22.2 No.205 Listed ANSI/BHMA 156.23, Grade 1; E08501-500 NFPA 101 CSFM - California State Fire Marshal Approved MEA - City of New York Approved CE:EN50091-1, EN 61000-6-2 Approved NEMA: 4X IEC: IP66

Related Categories

• Securitron Maglocks & Acc.
