Securitron M680EBD Maglock, 1200 lb Holding Force, 12/24 VDC Bondstat Monitor, DPS

Securitron M680EBD Maglock, 1200 lb Holding Force, 12/24 VDC Bondstat Monitor, DPS

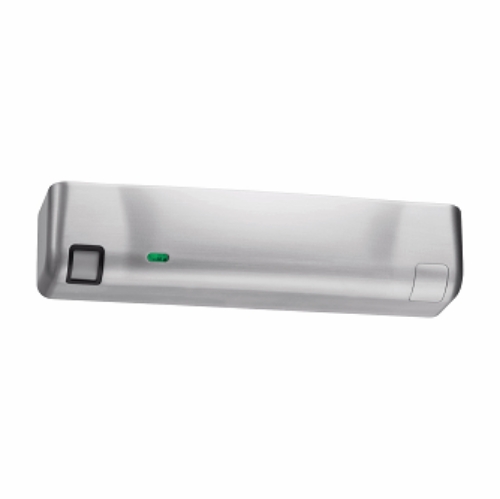

With integrated features such as built-in smart voltage sensing, tamper sensor and an updated strike plate mounting template, the M380E joins the M680E in the family of sustainable magnalocks.

The M380EBD and M380EBDX models offer additional integrations, such as Securitron's patented BondSTAT lock sensor, Door Position Switch, built-in door prop sensing (which allows the magnet to de-energize the coil when the door is held open for extended periods), and a passive infrared request to exit (PIR REX).

Features:

Sustainability documentationEnergy efficient, low power usageSynchronous double door release using a single Request to ExitAuto calibration upon installationAutomatic dual-voltage - no field adjustment requiredLED Indicator shows the lock is secure, open, or has an incomplete bondTamper Switch sends an alarm output if the cover is removed and is  selectable to NO or NCRust resistant - all ferrous metal surfaces plated for durabilityAdjustable automatic relock timer (0 to 30 seconds)Wire chamber anti-tamper switchSize optimized for use with door closersPatented BondSTAT lock sensor and integrated Door Position Switch (DPS) with relock timerMagnaCare lifetime replacement, no fault, no questions asked warrantyOptional Features: X Integrated passive infrared request to exit

Certifications:

• UL 10C Listed
• UL 1034 Listed
• UL 294 Listed
• CAN4-S104, CAN/ULC Listed
• ANSI/BHMA A156.23, Grade 3
• CSFM California State Fire Marshal Approved

Electrical Consumption - Maglock Average Power Draw ( 10%)   140 mA at 12 VDC   90 mA at 24 VDC - Maglock Maximum Power Draw ( 10%)   585 mA at 12 VDC   310 mA at 24 VDC - REX Power ( 10%)  Adds 25 mA at 12 VDC  Adds 10 mA at 24 VDC -Holding Force  600 lbs [272kg] Operating Temperature  32 to 110 F [0 to 43 C]   Indoor use only Shipping Weight  6.5 lbs [2.94kg
