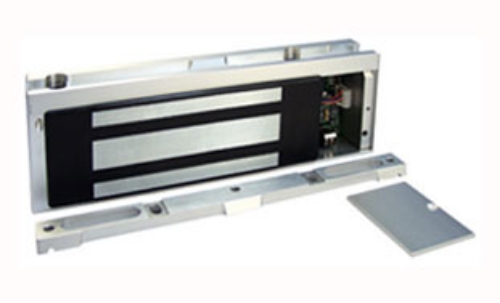

Securitron M68DS Magnalock - Door Position Switch (DPS) - Senstat - 1200 lbs

Securitron M68DS Magnalock - Door Position Switch (DPS) - Senstat - 1200 lbs

Features: Strong hold and low maintenance Patented instant release circuit - no residual magnetism Efficent, low power usage Surface mounts easily with mounting bracket using minimal tools Internal wire access chamber Mounted using steel machine screws into blind finishing nuts All ferrous metal surfaces plated to MIL specification Automatic dual voltage - no field adjustment required Dress Covers available MagnaCare Lifetime Replacement No Fault Warranty UL Listed

Description: Door Position Switch (DPS):The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed.

Senstat:Senstat detects the presence of an armature plate and notifies the access control or alarm system that the magnet is engaged.All Senstat Magnalocks use Formcisolated contacts.

Holding Force:1200 lbs. [544 kg]

Dimensions: Magnalock: 10-1/2"L x 2"D x 3-5/8"H Strike: 6"L x 1/2"D x 2-3/4"H

Current Draw and Voltage:250mA at 12VDC; 125mA at 24VDC

Operating Temperature:+32 to +110F [0 to +43C] Recommended for indoor use

Shipping Weight:13 lbs [5.44kg]

Finishes:US28/628 - Brushed Aluminum, US32/629 - Polished Stainless (Dress Cover), US03/605 - Polished Brass (Dress Cover), BK - Black (Dress Cover)

Model:M68DS

? UL 10C Listed ? CAN4-S104, CAN/ULC - S533 Listed ? ANSI/UL 294 Listed ? CSA - C22.2 No.205 Listed ? ANSI/BHMA 156.23, Grade 1; E18501-1000 ? NFPA 101 ? CSFM - California State Fire Marshal Approved
