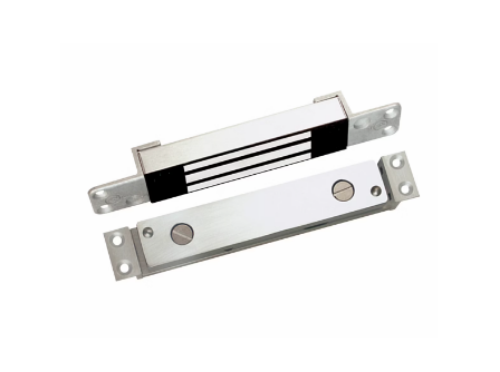

Securitron SAM2-24 Shear Aligning Magnalock - Strong Hold for Better Asset Management - 600 lbs

Securitron SAM2-24 Shear Aligning Magnalock - Strong Hold for Better Asset Management - 600 lbs

Features: Direct Mount to the door frame for strength and reliability Compact design fits tight spaces Patented instant release circuit - no residual magnetism Fully sealed electronics - tamper proof and weatherproof Noise suppression - no interference with sensitive electronics Mounted using steel machine screws All ferrous metal surfaces plated for durability and rust resistance Sealed 6ft [3.05m] jacketed, stranded conductor for each lock Smaller dimensions for difficult installation areas UL Listed MagnaCare Lifetime Replacement No Fault Warranty Efficent, low voltage, low power usage

Holding Force:600 lbs. [277 kg]

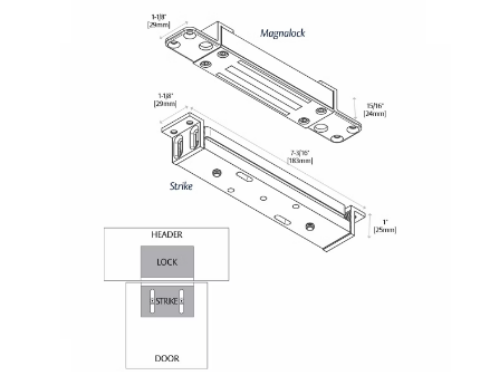

Dimensions:7-3/16"L x 1-1/8"D x 1"H

Current Draw and Voltage:62mA at 24VDC only

Operating Temperature:-40 to +140F [-40 to +60C] Indoor or Outdoor use.Not for use in open channel doors

Shipping Weight:2.5 lbs.

Finishes:US32D/630 - Satin Stainless Steel

Model:SAM224

 UL 10C Listed CAN4-S104, CAN/ULC - S533 Listed ANSI/UL 294 Listed ANSI/BHMA 156.23, Grade 1; E08571-1000, E08581-1000 CSFM - California State Fire Marshal Approved CE:EN 50091-1, EN 61000-6-2 Approved NEMA: 4X IEC: IP66 Patent Numbers: 6,007,119; 6,135,515
