Product Details

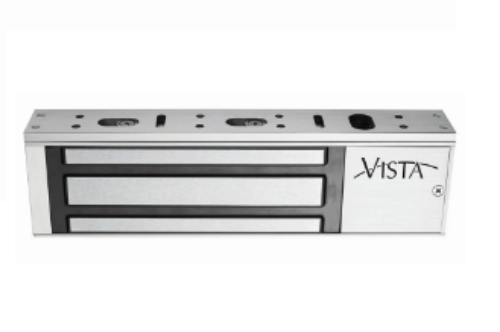

Securitron V2M1200 Vista Magnetic Lock - 1200 lbs. holding force maglock with field selectable dual voltage
Specifications
1200 lbs holding force
Magnet size:10-1/2" L x 2-7/8" H x 1-1/2" W
Armature size:7-3/8" L x 2-3/8" H x 9/16" W
Operates on 12 or 24 VDC, switch selectable
Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC
Operating temperature:+14 to +131F [-10 to +55C]
UL and Canadian UL listed, R16759
Product Features
Instant release, no hysteresis
Can be used with any access control system
Self drilling TEC screws
Built-in arc suppression
E-Z mount system, no special tools required
Non-aluminum parts are plated to resist corrosion
VistaCare® one year, no fault warranty
Finish:Clear anodized, (US28) finish standard
Duranodic finish available
Model:V2M1200
