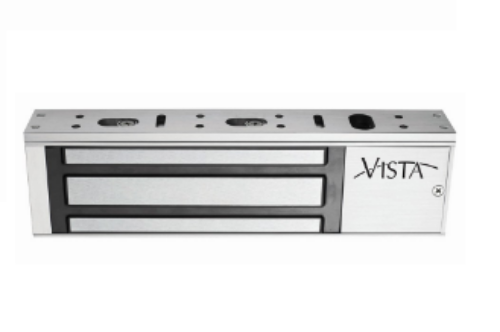

Securitron V2M1290DB, VM1200DB Vista Magnetic Lock with Retrofit Bracket for Locknetics 390 Lock

Securitron V2M1290DB Vista Magnetic Lock - 1200 lbs. holding force maglock with field selectable dual voltage -*Door Position Switch (DPS) - Bond Sensor with Retrofit Bracket for Locknetics 390 Lock*

Door Position Switch (DPS): The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed.

Bond Sensor: Bond Sensor delivers unparalleled peace of mind by detecting an armature plate and notifying access control and/or alarm systems that a door is properly secured.

Specifications

1200 lbs holding force

Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W

Armature size: 7-3/8" L x 2-3/8" H x 9/16" W

Operates on 12 or 24 VDC, switch selectable

Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC

Operating temperature: +14 to +131F [-10 to +55C]

UL and Canadian UL listed, R16759

Product Features

Instant release, no hysteresis

Can be used with any access control system

Self drilling TEC screws

Built-in arc suppression

E-Z mount system, no special tools required

Non-aluminum parts are plated to resist corrosion

VistaCare® one year, no fault warranty

Finish: Clear anodized, (US28) finish standard Duranodic finish available

Model: V2M1290DB
