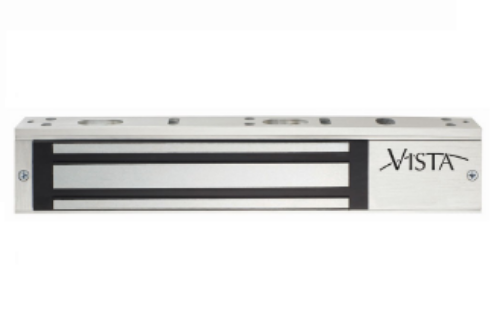

Securitron V2M600DB Vista Magnetic Lock - 600lbs - Dual Voltage - Door Position Switch (DPS) - Bond Sensor

Securitron V2M600 Vista Magnetic Lock - 600lbs - Dual Voltage   - Door Position Switch (DPS) - Bond Sensor

Door Position Switch (DPS): The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed.

Bond Sensor: Bond Sensor delivers unparalleled peace of mind by detecting an armature plate and notifying access control and/or alarm systems that a door is properly secured.

Specifications

600 lbs holding force

Magnet size: 9-7/8" L x 1-11/16" H x 1" W

Armature size: 7-1/4" L x 1-7/16" H x 5/8" W

Operates on 12 or 24 VDC, switch selectable

Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC

Operating Temperature: +14 to +131F [-10 to +55C]

UL and Canadian UL listed, R16759

Product Features

Instant release, no hysteresis

Non-aluminum parts are plated to resist corrosion

Built-in arc suppression

Can be used with any access control system

E-Z mount system, no special tools required

Self drilling TEC screws

VistaCare® one year, no fault warranty

Finish:Clear anodized, (US28) finish standard

?
