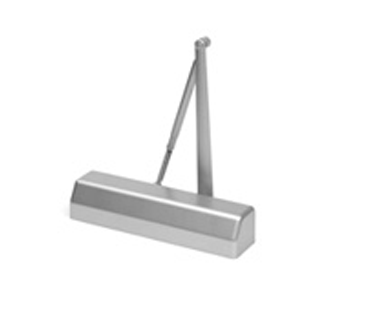

Stanley D-3550HS Multi-Sized 2-6 Door Closer with Heavy Duty Arm w/ Hold Open & Stop

Stanley D-3550HS Multi-Sized 2-6 Door Closer with Heavy Duty Arm w/ Hold Open & Stop

Adjustable Spring Power: Model D-3550: The D-3550 Series Door Closers are adjustable from size 2 through 6 with 15% adjustment over size 6.

Controls the door through the entire opening and closing cycles by providing adjustable backcheck upon opening and adjusting general and latch speeds through the closing cycle.

Non-Handed:Can be used on both RH and LH doors for both push side and pull side mounting.

Non-Critical Regulation:The separate adjustments for backcheck, general and latch speeds are equipped with non-criticalV-Slotregulating valves which allow for fine tuning the closing and latching speeds as well as the backcheck intensity.

All Season Fluid:All season fluid eliminates the need for seasonal adjustment.

Special High Silicon Aluminum Alloy Housing:All D-3550 / D-3551 Series Door Closers are constructed of Stanley R14 HIGH SILICON ALUMINUM ALLOY to exceed the ANSI/BHMAA156.4 Grade 1 requirements.

Forged Arms:Heavy duty forged arms are interchangeable between the D-3550 and D-4550 Series Door Closers.

High Impact Cover:All D-3550 / D-3551 Series Door Closers are shipped with a high impact self-extinguishing decorative cover.

Latching Power Adjustment:The D-3550 / D-3551 Series Door Closers have the provision to adjust the leverage of the arms by changing the pivot position of the arm in the shoe. The shoe itself does not have to be removed from the door or jamb.

Packing:All D-3550 / D-3551 Series Door Closers with standard arm sets are packed for mounting on standard, parallel arm or top jamb applications. All closer assemblies are packed 4 per carton. Tracks for track mounted closers are packed separately.

Model:Stanley D3550689, D3550695,D3550H689, D3550H695,D3550HS689, D3550HS695,D3550S689, D3550S695,D3550CS689, D3550CS695

ANSI and U.L. Specifications: The D-3550/D-3551 Series Door Closers have been Certified to the requirements of the ANSI/BHMA Standard A156.4 - 2000 Grade 1. Listed with Underwriters? Laboratories, Inc. and Underwriters? Laboratories of Canada. ?For Self-Closing Doors Without Hold-Open Feature? on R7525(R). D-3550 / D-3551 Series Door Closers have been certified by UL to be in compliance with UL 10 C and UBC 7.2 (1997).
