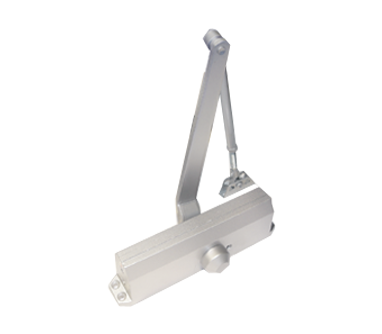

Stanley D-1611PH Multi-Sized 1-4 Door Closer with Parallel Hold Open Arm

product_image
product_image
naxt
prev

Product Details

Stanley D-1611PH Multi-Sized 1-4 Door Closer with Parallel Hold Open Arm

Adjustable Spring Power: Model 1611: The D-1611 Series Door Closers are adjustable from size 1 4 (2lbf 8lbf closing force measured 30from the pivot). The D-1611 Series Door Closers are designed to meet entrance accessibility requirements of 5lbf opening force or less.

Controls the door through the entire opening and closing cycles by providing adjustable backcheck upon opening and adjusting general and latch speeds through the closing cycle. (1) closing speed range 180- 10" (2) latching speed range 10- 0" (3) backcheck action range 75- 180"

Non-Handed:Can be used on RH and LH doors for both push side and pull side mounting.

Non-Critical Regulation:The separate adjustments for backcheck, general and latch speeds are equipped with non-criticalV-Slotregulating valves which allow for fine tuning the closing and latching speeds as well as the back-check intensity.

Packing:All D-1611 Series Door Closers with standard arm sets are packed for mounting on standard, parallel arm or top jamb applications. All closer assemblies are packed 10 per carton. Tracks for track mounted closers are packed separately.

ANSI/BHMA Specifications:The D-1611 Series Door Closers has been Certified ANSI/BHMA A156.4 Grade 1, UL10C.

All Season Fluid:All season fluid eliminates the need for seasonal adjustment.

High Impact Cover (Optional):Optional high impact self-extinguishing decorative cover is available on all Stanley D-1611 Series Closers.

Maintenance Free:Door Closers mounted in accordance with the provided installation instructions are maintenance free from periodic inspection and adjustment.

Through Bolts and Sex Nuts:When through bolting is ordered, factory will furnish sex nuts for use with the machine screws furnished with the closer. Nuts are sized to accommodate 1-3/8" or 1-3/4" thick doors.

Closing Power Adjustment:The D-1611 Series Door Closers have the provision to adjust the leverage of the arms by changing the pivot position of the arm in the foot; thus the closing force at the latch can be increased or decreased.

Model:Stanley D1611689, D1611695,D1611H689, D1611H695, D1611PH689, D1611PH695,

Stanley D-1611PH Multi-Sized 1-4 Door Closer with Parallel Hold Open Arm

SKU: D-1611PH

In Stock
icon Chat
Picture for manufacturer Stanley

Finish *

689 - Silver Aluminum Painted
689 - Silver Aluminum Painted
695 - Dark Bronze Painted
695 - Dark Bronze Painted

Option *

$130.05

$255.00

You saved $124.95

About this item

The D-1611 Series is a slim line closer uniquely designed to accommodate the standard aluminum storefront application foot print. The pinion and piston are constructed of cold forged steel maintaining critical tolerances for reliable performance. The nonhanded cylinder body incorporates a robust cast aluminum construction.

Resources

No resources added to this product.

Stanley D-1611PH Multi-Sized 1-4 Door Closer with Parallel Hold Open Arm

Adjustable Spring Power: Model 1611: The D-1611 Series Door Closers are adjustable from size 1 4 (2lbf 8lbf closing force measured 30from the pivot). The D-1611 Series Door Closers are designed to meet entrance accessibility requirements of 5lbf opening force or less.

Controls the door through the entire opening and closing cycles by providing adjustable backcheck upon opening and adjusting general and latch speeds through the closing cycle. (1) closing speed range 180- 10" (2) latching speed range 10- 0" (3) backcheck action range 75- 180"

Non-Handed:Can be used on RH and LH doors for both push side and pull side mounting.

Non-Critical Regulation:The separate adjustments for backcheck, general and latch speeds are equipped with non-criticalV-Slotregulating valves which allow for fine tuning the closing and latching speeds as well as the back-check intensity.

Packing:All D-1611 Series Door Closers with standard arm sets are packed for mounting on standard, parallel arm or top jamb applications. All closer assemblies are packed 10 per carton. Tracks for track mounted closers are packed separately.

ANSI/BHMA Specifications:The D-1611 Series Door Closers has been Certified ANSI/BHMA A156.4 Grade 1, UL10C.

All Season Fluid:All season fluid eliminates the need for seasonal adjustment.

High Impact Cover (Optional):Optional high impact self-extinguishing decorative cover is available on all Stanley D-1611 Series Closers.

Maintenance Free:Door Closers mounted in accordance with the provided installation instructions are maintenance free from periodic inspection and adjustment.

Through Bolts and Sex Nuts:When through bolting is ordered, factory will furnish sex nuts for use with the machine screws furnished with the closer. Nuts are sized to accommodate 1-3/8" or 1-3/4" thick doors.

Closing Power Adjustment:The D-1611 Series Door Closers have the provision to adjust the leverage of the arms by changing the pivot position of the arm in the foot; thus the closing force at the latch can be increased or decreased.

Model:Stanley D1611689, D1611695,D1611H689, D1611H695, D1611PH689, D1611PH695,

product_image
Stanley D-1611PH Multi-Sized 1-4 Door Closer with Parallel Hold Open Arm

Product code: D-1611PH

In Stock

$255.00

$130.05

product_image
Stanley D-1611PH Multi-Sized 1-4 Door Closer with Parallel Hold Open Arm

Product code: D-1611PH

In Stock

$255.00

$130.05
