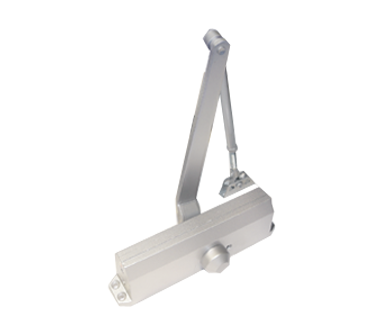

Stanley D-1610H Multi-Sized 2-5 Door Closer with Standard Hold Open Arm, Regular / Top Jamb

Stanley D-1610H Multi-Sized 2-5 Door Closer with Hold Open Arm (Regular & Top Jamb Mount)

Adjustable Spring Power: Model 1610: D-1610 series Door Closers are adjustable from size 2 5 (3lbf 11lbf closing force measured at 30from the door pivot)

Controls the door through the entire opening and closing cycles by providing adjustable backcheck upon opening and adjusting general and latch speeds through the closing cycle. (1) closing speed range 180- 10" (2) latching speed range 10- 0" (3) backcheck action range 75- 180"

Non-Handed:Can be used on RH and LH doors for both push side and pull side mounting.

Non-Critical Regulation:The separate adjustments for backcheck, general and latch speeds are equipped with non-criticalV-Slotregulating valves which allow for fine tuning the closing and latching speeds as well as the back-check intensity.

Packing:All D-1610 Series Door Closers with standard arm sets are packed for mounting on standard or top jamb (For Parallel Arm see"D1610-PH")applications. All closer assemblies are packed 10 per carton. Tracks for track mounted closers are packed separately.

ANSI/BHMA Specifications:The D-1610 Series Door Closers has been Certified ANSI/BHMA A156.4 Grade 1, UL10C.

All Season Fluid:All season fluid eliminates the need for seasonal adjustment.

High Impact Cover (Optional):Optional high impact self-extinguishing decorative cover is available on all Stanley D-1610 Series Closers.

Maintenance Free:Door Closers mounted in accordance with the provided installation instructions are maintenance free from periodic inspection and adjustment.

Through Bolts and Sex Nuts:When through bolting is ordered, factory will furnish sex nuts for use with the machine screws furnished with the closer. Nuts are sized to accommodate 1-3/8" or 1-3/4" thick doors.

Closing Power Adjustment:The D-1610 Series Door Closers have the provision to adjust the leverage of the arms by changing the pivot position of the arm in the foot; thus the closing force at the latch can be increased or decreased.

Model:Stanley D1610689, D1610H95,D1610H689, D1610H695,D1610PH689, D1610PH695
