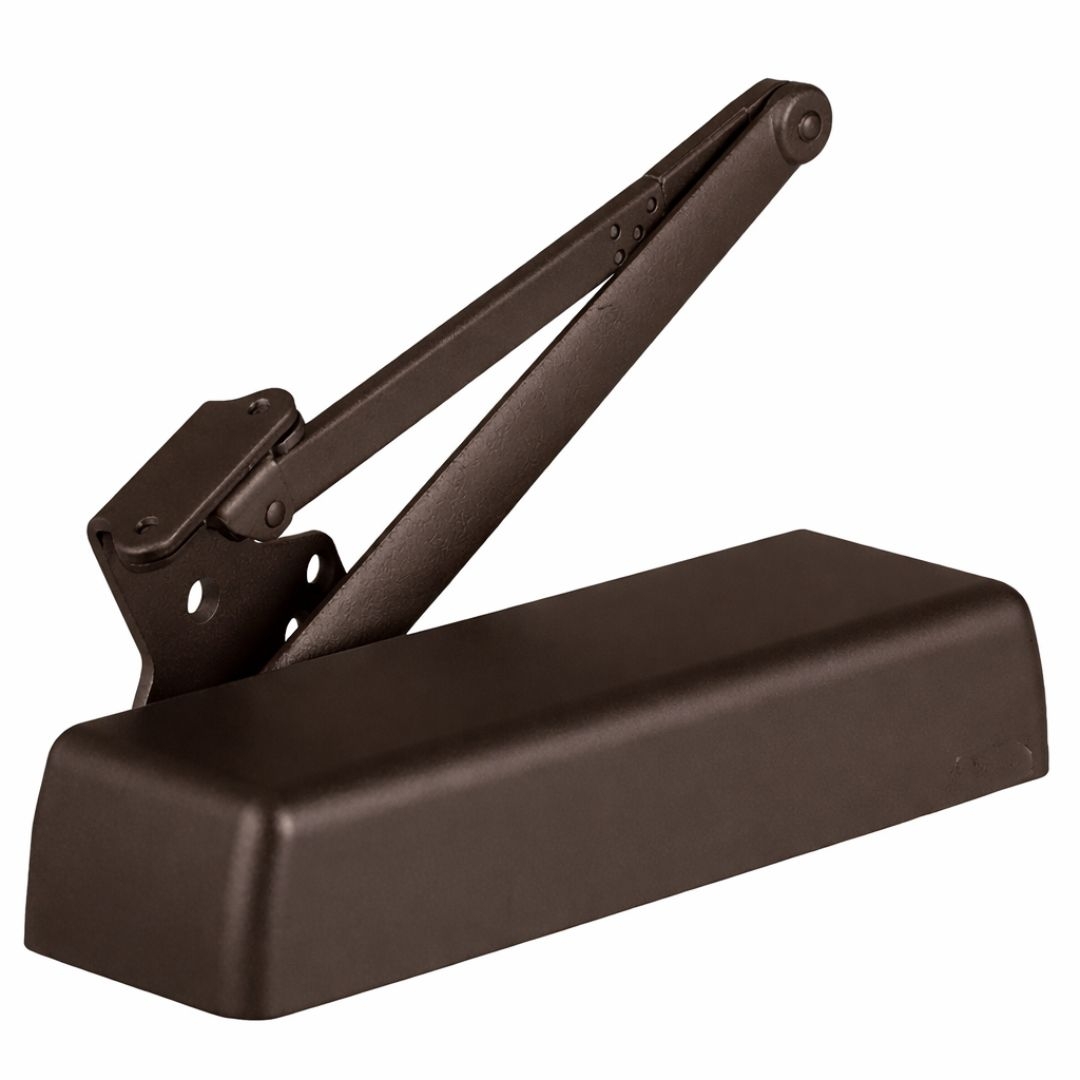

Stanley QDC111 R Grade 1 Extra Heavy Duty Door Closer - Fully Adjustable - Cast Iron Body - Tri-pack arm - Full Rounded Plastic Cover

Stanley QDC111R Grade 1 Extra Heavy Duty Door Closer - Fully Adjustable - Cast Iron Body - Tri-pack arm (non-handed) - Full Sized Rounded Plastic Cover

Door Closer Function:QDC111: Tri-pack arm (non-handed). Sex nuts and self tapping screws come standard with QDC100 series door closers.

Premium performance standard: Get premium performance options like delayed action and a back check valve standard with the QDC100 series.

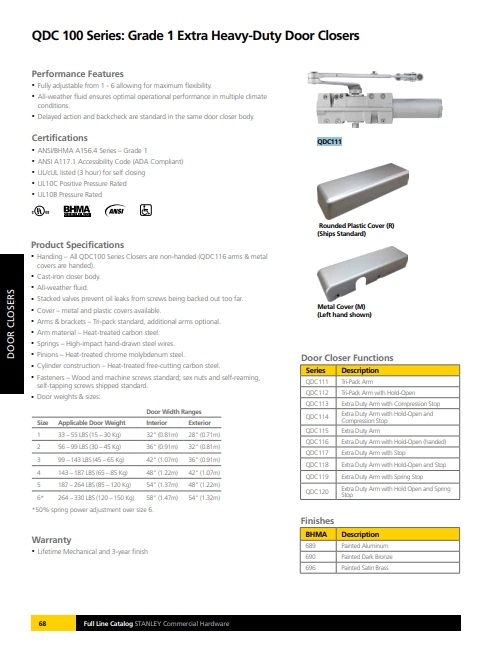

Specifications:

Certifications: ANSI/BHMA A156.4 Series Grade 1. ANSI A117.1 Accessibility Code (ADA Compliant). UL/cUL listed (3 hour) for self-closing. UL10c positive pressure rated. UL10b pressure rated.

Body: Cast iron.

Covers: Metal and plastic available.

Arms & brackets: Tri-pack standard; additional heavy-duty arms optional.

Arms: Heat-treated carbon steel.

Springs: High-impact hand-drawn steel wire.

Pinions: Heat-treated chrome molybdenum steel.

Cylinders: Heat-treated free-cutting carbon steel.

Fasteners: Wood and machine screws standard; sex nuts and self-reaming, self-tapping screws standard.

Door Weights and Sizes: BF option required to meet ADA compliance for standard arm and top jamb applications. 1: 33-55 lbs (15-30 kg) weight; 32" (0.81 m)-28" (0.71 m) width. 2: 56-99 lbs (30-45 kg) weight; 36" (0.91 m)-32" (0.81 m) width. 3: 99-143 lbs (45-65 kg) weight; 42" (1.07 m)-36" (0.91 m) width. 4: 143-187 lbs (65-85 kg) weight; 48" (1.22 m)-42" (1.07 m) width. 5: 187-264 lbs (85-120 kg) weight; 54" (1.37 m)-48" (1.22 m) width. 6: 264-330 lbs (120-150 kg) weight; 58" (1.47 m)-54" (1.32 m) width. 50% spring power adjustment over size 6.

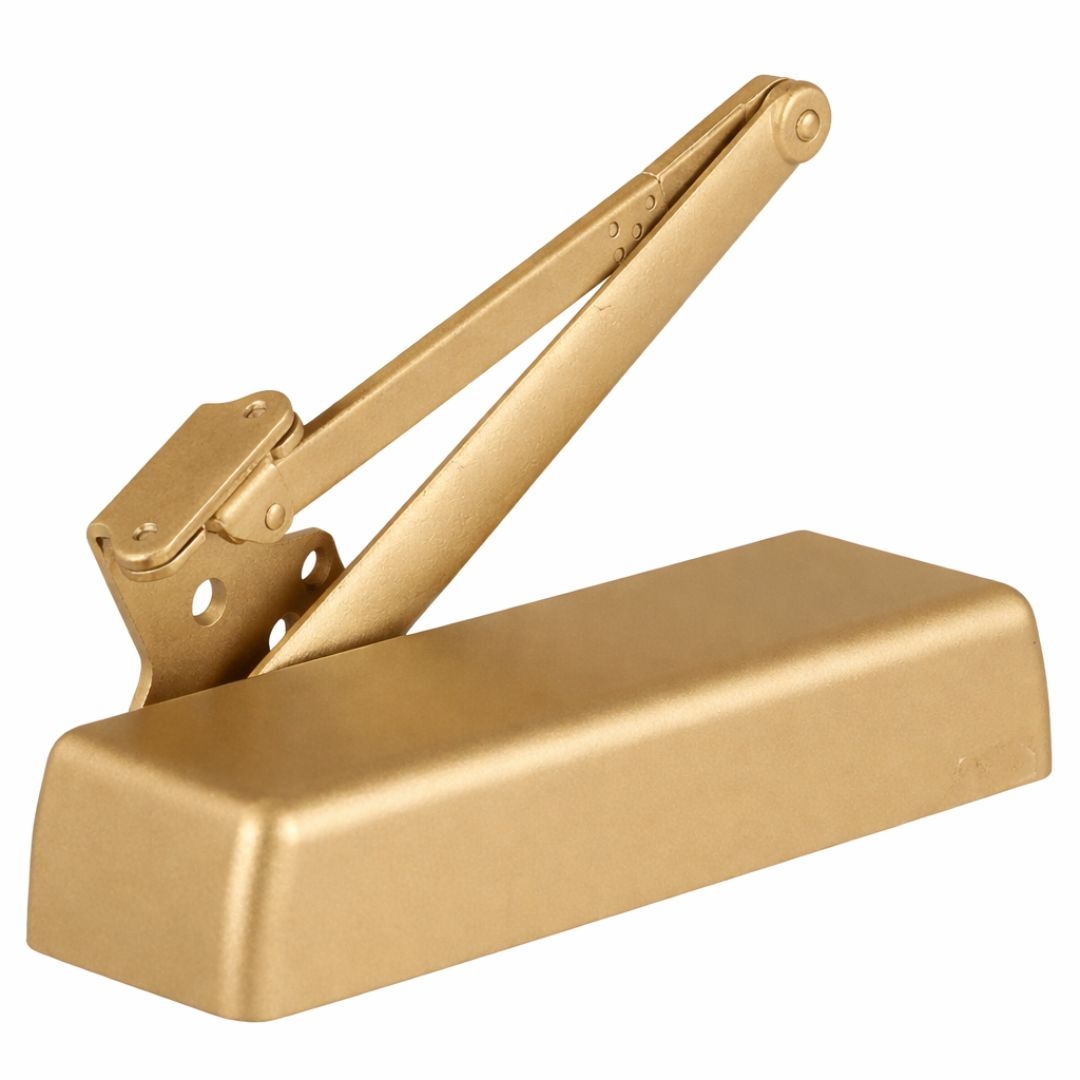

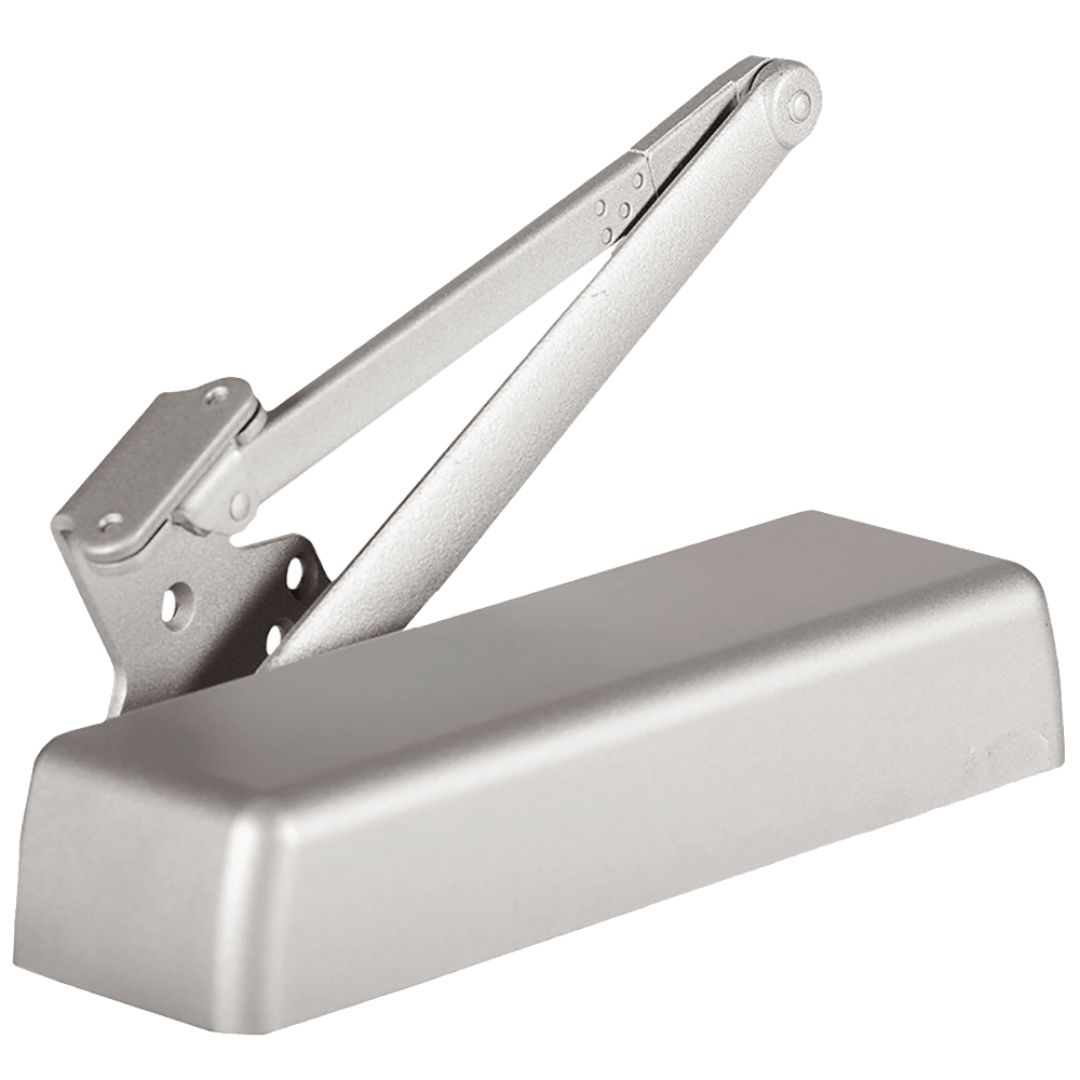

Finishes: 689: Painted Aluminum. 690: Painted Duranodic Bronze. 696: Painted Satin Brass.

Warranties: Lifetime mechanical. Three-year finish.

Ultimate durability: With cast iron body construction, cold-forged pinion shaft, and forged steel arms, the QDC100 stands up to heavy use over the long term.

Easy to retrofit: There?s no need to re-prep your door. The QDC100 has the same footprint, bolt pattern, and rounded cover as the LCN4040 so it?s a simple off-and-on exchange.

Industry-leading warranty: Each QDC100 closer comes with a lifetime mechanical warranty and a three-year warranty on finish.

Exceeds certification standards: The QDC100 is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements. These closers are fully adjustable, with a barrier-free option to meet ADA requirements.

Outstanding versatility: We engineered the QDC100 series with all-weather fluid, a variety of arm types and stop options, and non-handed and universal mount design, to make it easy to stock and use in a wide variety of applications.

Premium performance standard: Get premium performance options like delayed action and a back check valve standard with the QDC100 series.

Proactive solutions: Innovative construction features like stacked valves prevent oil leaks from screws being accidentally backed out too far.
